Sutton T142 Spiral Point Tap - Vanadium HSS TiAIN1

Sutton T142 Spiral Point Tap - Vanadium HSS TiAIN2

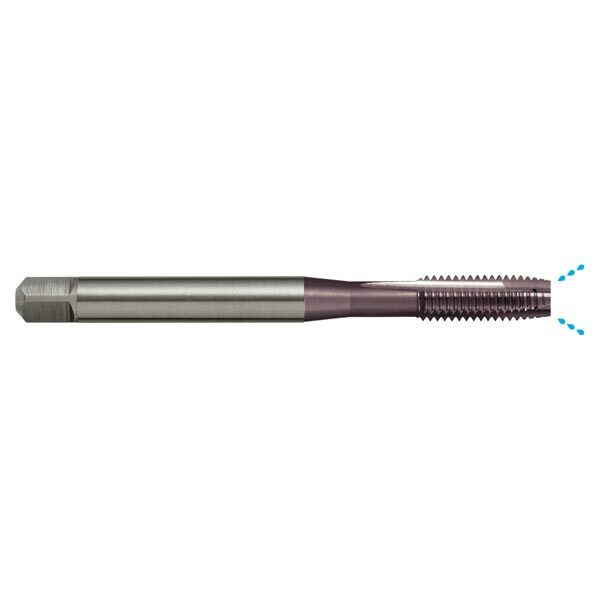

Sutton T1420600 x 1 Spiral Point Tap - HSSE V3 TiAIN

Sutton T1420800 x 1.25 Spiral Point Tap - HSSE V3 TiAIN

Sutton T1421000 x 1.5 Spiral Point Tap - HSSE V3 TiAIN

Description +

Dimensions

d1: M6
d2 (mm): 6
l1 (mm): 80
l2 (mm): 19
l3 (mm): 30
l4 (mm): 8
Square Size (mm): 4.9
z: 3
Drill Size (mm): 5 (drill)
Pitch (mm): 1 (pitch)

Features

Suitable for harder short chipping materials up to 42 HRc
Through holes
Depths up to approx. 3 x d1

Specifications

Designation: NH
Material: Powdered Metallurgy - Vanadium Grade High Speed Steel (PM-HSSE V3)
Finish: Titanium Aluminium Nitride (TiAIN)
Max Cut Depth: 3xD
Shank Form: Reinforced Shank (with square drive)
X: ru
Type: Spiral Point (Gun)
Standard: DIN371
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: ISO 2 / 6H
Lead: Form B / 4.5 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Quenched & Tempered
Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
Steel - High alloy, cast & tool: Annealed
Stainless Steel - Precipitation Hardening
Cast Iron, Malleable – Ferritic
Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%

Specifications +

Dimensions

d1: M6
d2 (mm): 6
l1 (mm): 80
l2 (mm): 19
l3 (mm): 30
l4 (mm): 8
Square Size (mm): 4.9
z: 3
Drill Size (mm): 5 (drill)
Pitch (mm): 1 (pitch)

Specifications

Designation: NH
Material: Powdered Metallurgy - Vanadium Grade High Speed Steel (PM-HSSE V3)
Finish: Titanium Aluminium Nitride (TiAIN)
Max Cut Depth: 3xD
Shank Form: Reinforced Shank (with square drive)
X: ru
Type: Spiral Point (Gun)
Standard: DIN371
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: ISO 2 / 6H
Lead: Form B / 4.5 x P

Application +

Applications

Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Quenched & Tempered
Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
Steel - High alloy, cast & tool: Annealed
Stainless Steel - Precipitation Hardening
Cast Iron, Malleable – Ferritic
Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%

Features & Benefits +

Features

Suitable for harder short chipping materials up to 42 HRc
Through holes
Depths up to approx. 3 x d1

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Sold out

Sutton T142 Spiral Point Tap - Vanadium HSS TiAIN

SKU: A0013044

$181.04

Inc. GST

Buy It Now

Out of stock

The Sutton T142 Spiral Point Tap by Sutton Tools is a 0 with Powdered Metallurgy Vanadium Grade High Speed Steel material. It provides a Drill Size 8.5 (drill) and is suitable for Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered.
