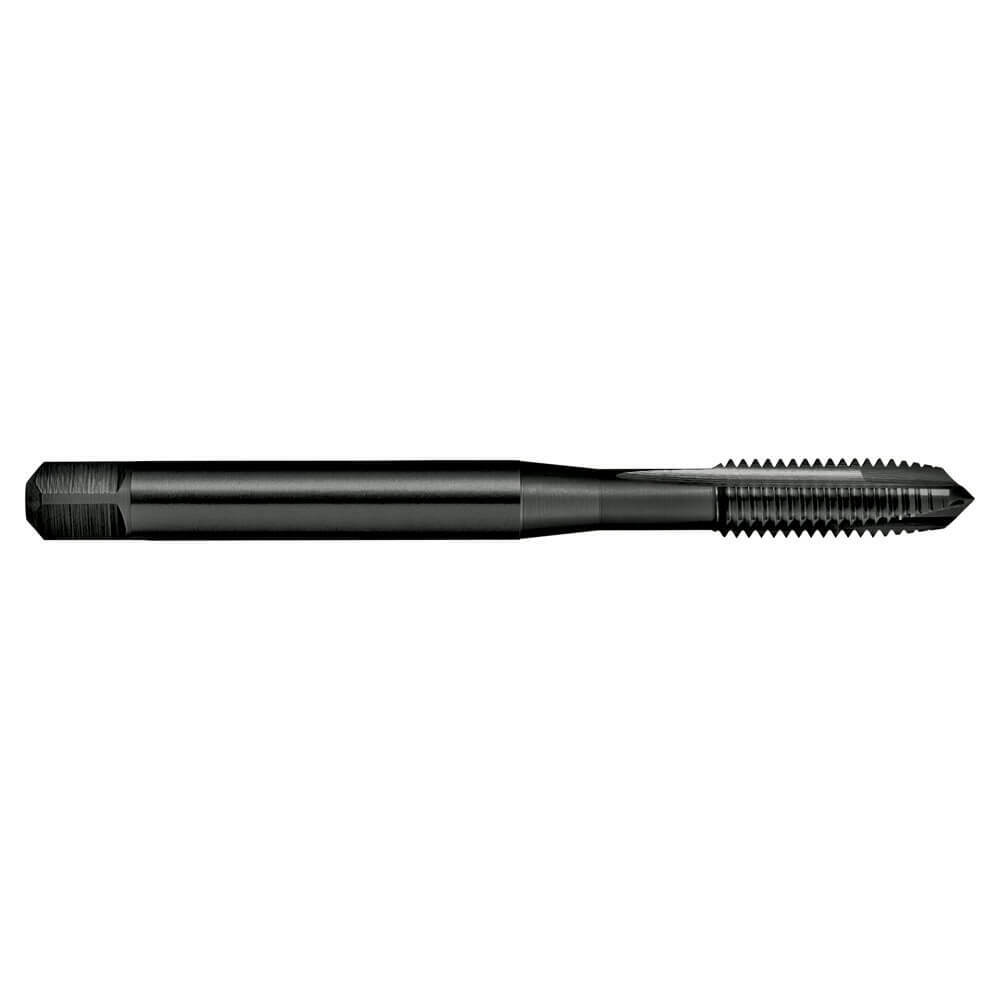

Sutton T144 Metric Fine Spiral Point Tap - Cobalt Steel Blue1

Sutton T144 Metric Fine Spiral Point Tap - Cobalt Steel Blue2

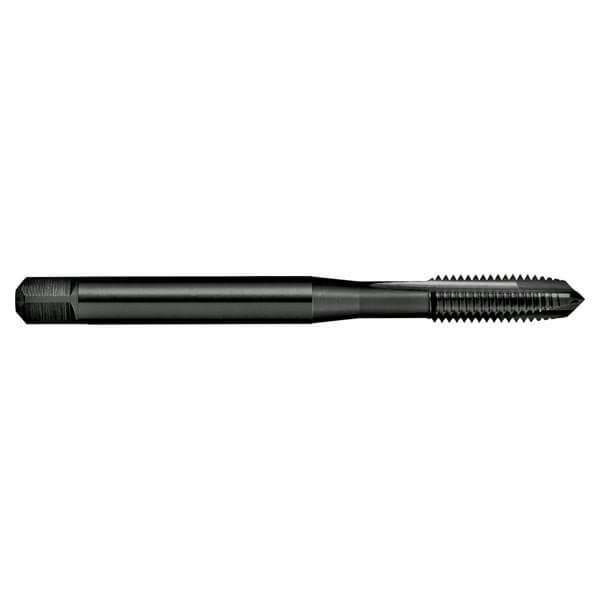

Sutton T1440800 Metric M8 x 1.25 Spiral Point Tap - Cobalt Steel Blue

Sutton T1441000 Metric M10 x 1.5 Spiral Point Tap - Cobalt Steel Blue

Sutton T1440300 Metric Fine M3 x 0.5 Spiral Point Tap - Cobalt Steel Blue

Sutton T1440400 Metric Fine M4 x 0.7 Spiral Point Tap - Cobalt Steel Blue

Sutton T1440500 Metric Fine M5 x 0.8 Spiral Point Tap - Cobalt Steel Blue

Sutton T1440600 Metric Fine M6 x 1 Spiral Point Tap - Cobalt Steel Blue

Specifications +

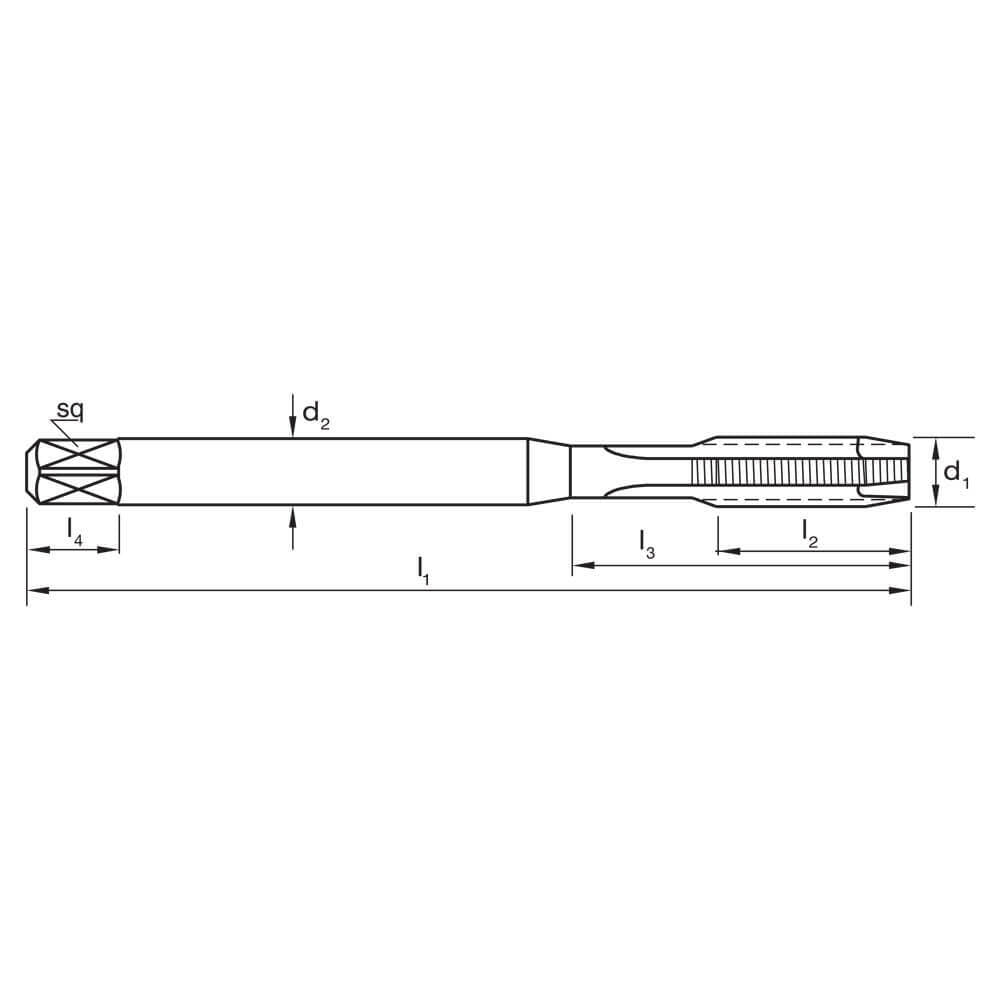

Dimensions

d1: M3
d2 (mm): 3.5
l1 (mm): 56
l2 (mm): 11
l3 (mm): 18
l4 (mm): 6
Square Size (mm): 2.7
z: 3
Drill Size (mm): 2.5 (drill)
Pitch (mm): 0.5 (pitch)

Specifications

Designation: H (for hard materials forming short chips)
Material: Powdered Metallurgy- High Speed Steel Cobalt (PM-HSS Co8%)
Finish: Steam Oxide (Blue)
Max Cut Depth: 3xD
Shank Form: Reinforced Shank (with square drive)
X: als
Type: Spiral Point (Gun)
Standard: DIN371
Thread Form: ISO Metric Fine (MF)
Nut Tolerance: 6HX
Lead: Form B / 4.5 x P

Application +

Applications

Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Quenched & Tempered
Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
Steel - High alloy, cast & tool: Hardened & Tempered
Steel - Corrosion resistant & cast - Martensitic: Quenched & Tempered

Features & Benefits +

Features

Suitable for harder short chipping materials up to 45 HRc
Through holes
Depths up to 3 x d1

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Save 30%

Sutton T144 Metric Fine Spiral Point Tap - Cobalt Steel Blue

SKU: A0013052

Type: Spiral Flute Tap

$34.62

$34.62 ~~$49.46~~

Inc. GST

⚙Cobalt HSS Construction

⚙Sutton Metric Fine Spiral

📐Multiple Sizes Available

🔩Precise Thread Cutting

🏗Metalworking & Manufacturing

☑Tempered for Toughness

Available

Product Highlights −

Dimensions

d1: M3
d2 (mm): 3.5
l1 (mm): 56
l2 (mm): 11
l3 (mm): 18
l4 (mm): 6
Square Size (mm): 2.7
z: 3
Drill Size (mm): 2.5 (drill)
Pitch (mm): 0.5 (pitch)

Features

Suitable for harder short chipping materials up to 45 HRc
Through holes
Depths up to 3 x d1

Specifications

Designation: H (for hard materials forming short chips)
Material: Powdered Metallurgy- High Speed Steel Cobalt (PM-HSS Co8%)
Finish: Steam Oxide (Blue)
Max Cut Depth: 3xD
Shank Form: Reinforced Shank (with square drive)
X: als
Type: Spiral Point (Gun)
Standard: DIN371
Thread Form: ISO Metric Fine (MF)
Nut Tolerance: 6HX
Lead: Form B / 4.5 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Quenched & Tempered
Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
Steel - High alloy, cast & tool: Hardened & Tempered
Steel - Corrosion resistant & cast - Martensitic: Quenched & Tempered
