Description
Description

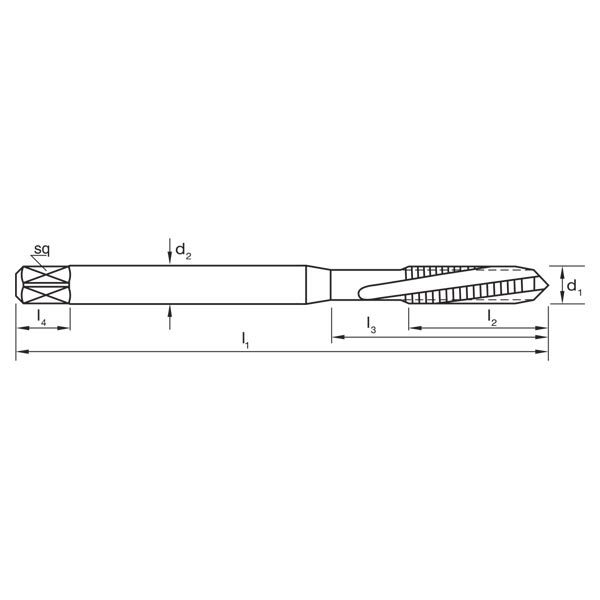

Dimensions
- d1 (mm): M12
- d2 (mm): 9
- l1 (mm): 110
- l2 (mm): 29
- l4 (mm): 10
- Square Size (mm): 7
- z: 3
- Drill Size (mm): 10.2 (drill)
- Pitch (mm): 1.75 (pitch)
Features
- Use in stainless steels and high strength steels up to 1000N/mm2
- For Titanium based alloys
- For duplex and super duplex stainless steels
- For Nickel based alloys >850N/mm2 <1150N/mm2
- Tight tolerances and optimised microfinish
- For optimal process reliability and excellent thread quality
- Through holes up to approx. 1.5 x d1
Specifications
- Designation: Ti (for titaniums)
- Material: Powdered Metallurgy- High Speed Steel Cobalt (PM-HSS Co8%)
- Finish: Titanium Carbonitride (TiCN)
- Max Cut Depth: 1.5xD
- Shank Form: Reinforced Shank (with square drive)
- Helix Angle: L12
- X: als
- Type: Spiral Flute
- Standard: DIN376
- Thread Form: ISO Metric Coarse (M)
- Nut Tolerance: 6HX
- Lead: Form B / 4.5 x P
Applications
- Titanium & Titanium alloys - Alpha alloys
- Titanium & Titanium alloys - Alpha / Beta alloys: Annealed
- Titanium & Titanium alloys - Beta alloys: Annealed
Specifications
Specifications
Dimensions
- d1 (mm): M12
- d2 (mm): 9
- l1 (mm): 110
- l2 (mm): 29
- l4 (mm): 10
- Square Size (mm): 7
- z: 3
- Drill Size (mm): 10.2 (drill)
- Pitch (mm): 1.75 (pitch)
Specifications
- Designation: Ti (for titaniums)
- Material: Powdered Metallurgy- High Speed Steel Cobalt (PM-HSS Co8%)
- Finish: Titanium Carbonitride (TiCN)
- Max Cut Depth: 1.5xD
- Shank Form: Reinforced Shank (with square drive)
- Helix Angle: L12
- X: als
- Type: Spiral Flute
- Standard: DIN376
- Thread Form: ISO Metric Coarse (M)
- Nut Tolerance: 6HX
- Lead: Form B / 4.5 x P
Applications
Applications
Applications
- Titanium & Titanium alloys - Alpha alloys
- Titanium & Titanium alloys - Alpha / Beta alloys: Annealed
- Titanium & Titanium alloys - Beta alloys: Annealed
Features & Benefits
Features & Benefits
Features
- Use in stainless steels and high strength steels up to 1000N/mm2
- For Titanium based alloys
- For duplex and super duplex stainless steels
- For Nickel based alloys >850N/mm2 <1150N/mm2
- Tight tolerances and optimised microfinish
- For optimal process reliability and excellent thread quality
- Through holes up to approx. 1.5 x d1
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

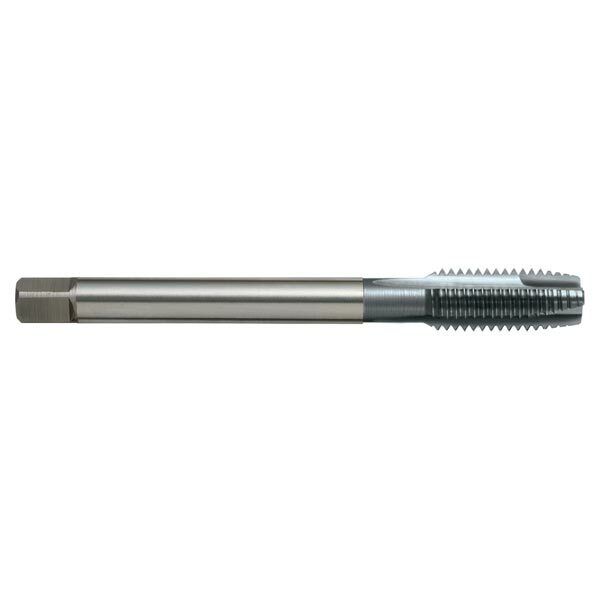

Sutton T153 Metric Spiral Flute Tap - Cobalt Steel TiCN
Sutton T153 Metric Spiral Flute Tap - Cobalt Steel TiCN
SKU: A0013089
- Wide Range
- Reliable Services
- Proven Trust
Available
The Sutton T153 Metric Spiral Flute Tap by Sutton Tools is a 0 made of Powdered Metallurgy- High Speed Steel Cobalt (PM-HSS Co8%). It provides a Drill Size of 10.2 (drill) and is suitable for Titanium & Titanium alloys - Alpha / Beta alloys: Annealed.
