Sutton T163 Metric Fine Spiral Point Tap - Vanadium HSS TiAIN1

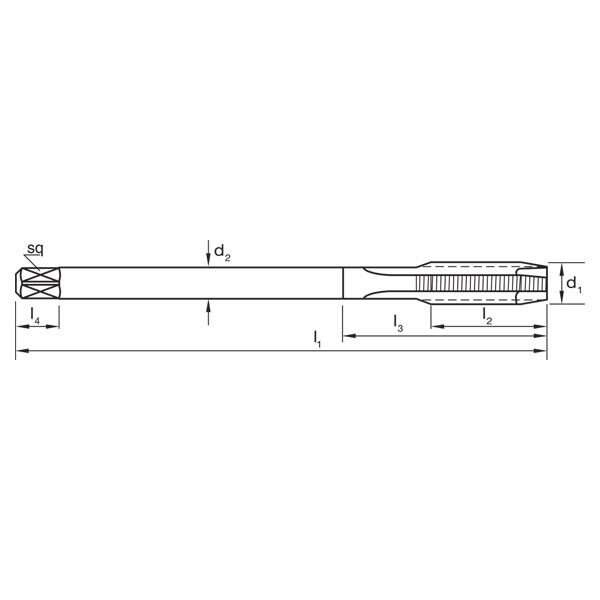

Sutton T163 Metric Fine Spiral Point Tap - Vanadium HSS TiAIN2

Sutton T1630302 Metric MF3 x 0.35 Spiral Point Tap - HSSE V3 TiAIN

Sutton T1630403 Metric MF4 x 0.5 Spiral Point Tap - HSSE V3 TiAIN

Sutton T1630503 Metric MF5 x 0.5 Spiral Point Tap - HSSE V3 TiAIN

Sutton T1630604 Metric MF6 x 0.75 Spiral Point Tap - HSSE V3 TiAIN

Sutton T1630803 Metric MF8 x 0.5 Spiral Point Tap - HSSE V3 TiAIN

Sutton T1630804 Metric MF8 x 0.75 Spiral Point Tap - HSSE V3 TiAIN

Sutton T1630805 Metric Fine MF8 x 1 Spiral Point Tap - HSSE V3 TiAIN

Sutton T1631004 Metric MF10 x 0.75 Spiral Point Tap - HSSE V3 TiAIN

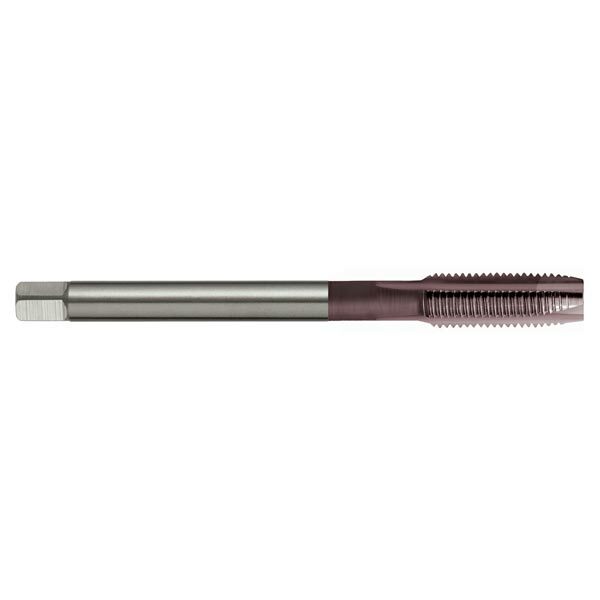

Sutton T1631605 Metric MF16 x 1 Spiral Point Tap - HSSE V3 TiAIN

Sutton T1631805 Metric MF18 x 1 Spiral Point Tap - HSSE V3 TiAIN

Sutton T1631807 Metric MF18 x 1.5 Spiral Point Tap - HSSE V3 TiAIN

Sutton T1631808 Metric MF18 x 2 Spiral Point Tap - HSSE V3 TiAIN

Sutton T1632005 Metric MF20 x 1 Spiral Point Tap - HSSE V3 TiAIN

Sutton T1632008 Metric MF20 x 2 Spiral Point Tap - HSSE V3 TiAIN

Description +

Features

Suitable for harder short chipping materials up to 42 HRc
Through holes
Suitable for machine operations
Depths up to approx. 3 x d1

Specifications

Designation: NH
Material: Powdered Metallurgy - Vanadium Grade High Speed Steel (PM-HSSE V3)
Finish: Titanium Aluminium Nitride (TiAIN)
Max Cut Depth: 3xD
Shank Form: Reduced Shank (with square drive)
X: als
Type: Spiral Point (Gun)
Standard: DIN374
Thread Form: ISO Metric Fine (MF)
Nut Tolerance: ISO 2 / 6H
Lead: Form B / 4.5 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Quenched & Tempered
Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
Steel - High alloy, cast & tool: Annealed
Stainless Steel - Precipitation Hardening
Cast Iron, Malleable Ferritic
Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%

Specifications +

Designation: NH
Material: Powdered Metallurgy - Vanadium Grade High Speed Steel (PM-HSSE V3)
Finish: Titanium Aluminium Nitride (TiAIN)
Max Cut Depth: 3xD
Shank Form: Reduced Shank (with square drive)
X: als
Type: Spiral Point (Gun)
Standard: DIN374
Thread Form: ISO Metric Fine (MF)
Nut Tolerance: ISO 2 / 6H
Lead: Form B / 4.5 x P

Application +

Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Quenched & Tempered
Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
Steel - High alloy, cast & tool: Annealed
Stainless Steel - Precipitation Hardening
Cast Iron, Malleable Ferritic
Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Sold out

Sutton T163 Metric Fine Spiral Point Tap - Vanadium HSS TiAIN

SKU: A0013231

$104.27

Inc. GST

Out of stock

The Sutton T163 Metric Fine Spiral Point Tap by Sutton Tools is a 0 made from Powdered Metallurgy Vanadium Grade High Speed Steel. It offers a 9.3 mm drill size and is suitable for quenched and tempered non-alloy steel.
