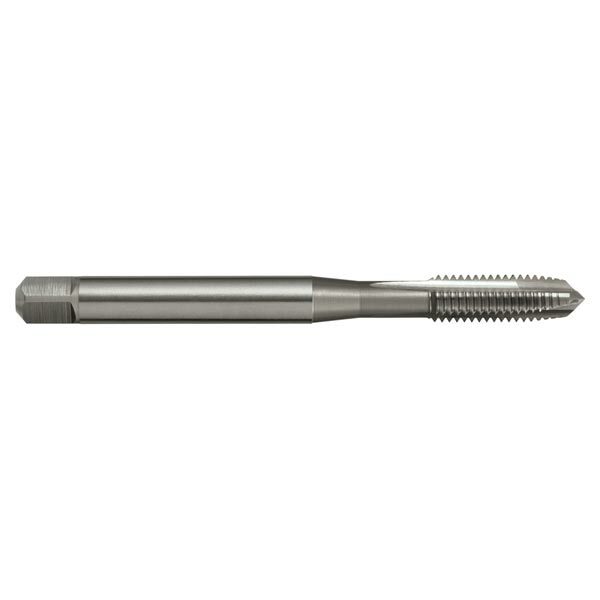

Sutton Spiral Point (Gun) Tap - H - PM-HSS Co - Blu

• Use in harder short chipping materials up to 45 HRC.
• Through holes.
• Suitable for machine operations.
• Depths up to approximately 3 x d1.

Specifications

• Designation: H
• Material: PM-HSS Co

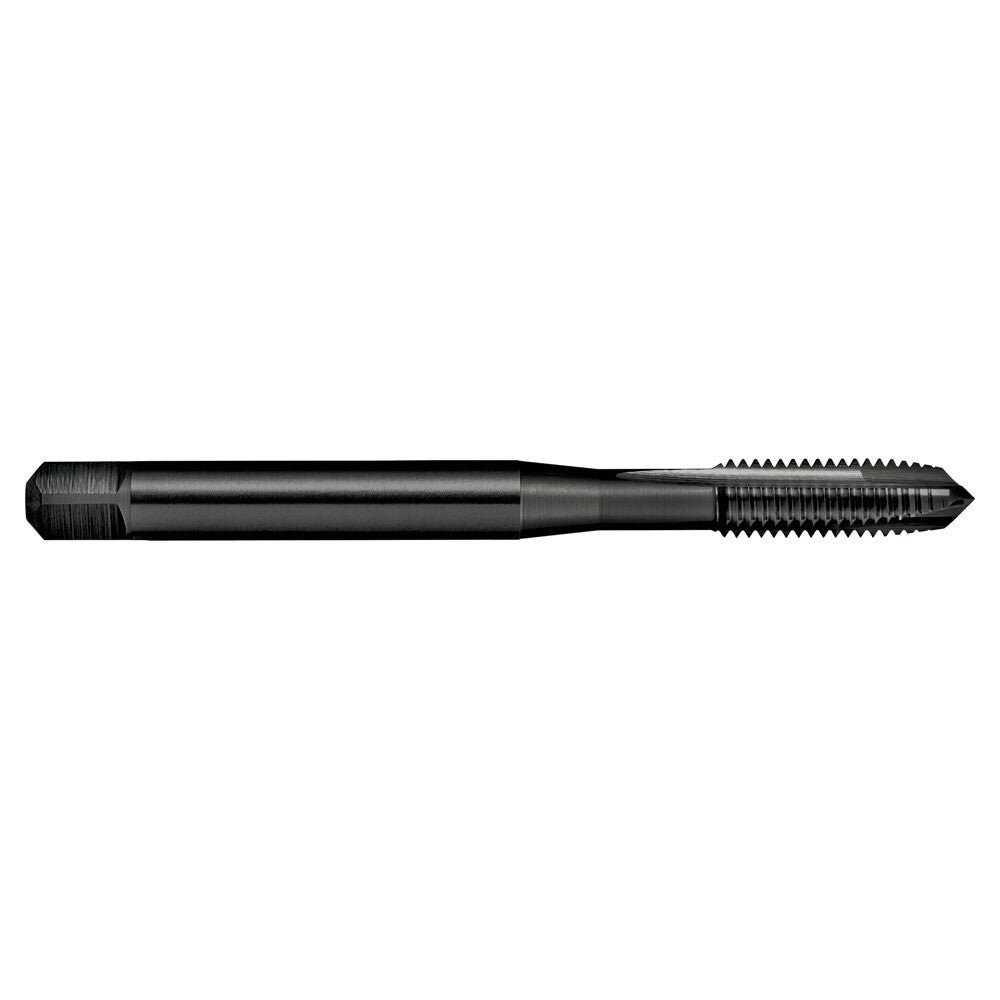

• Finish: Blu
• Max Cut Depth: 3 x D

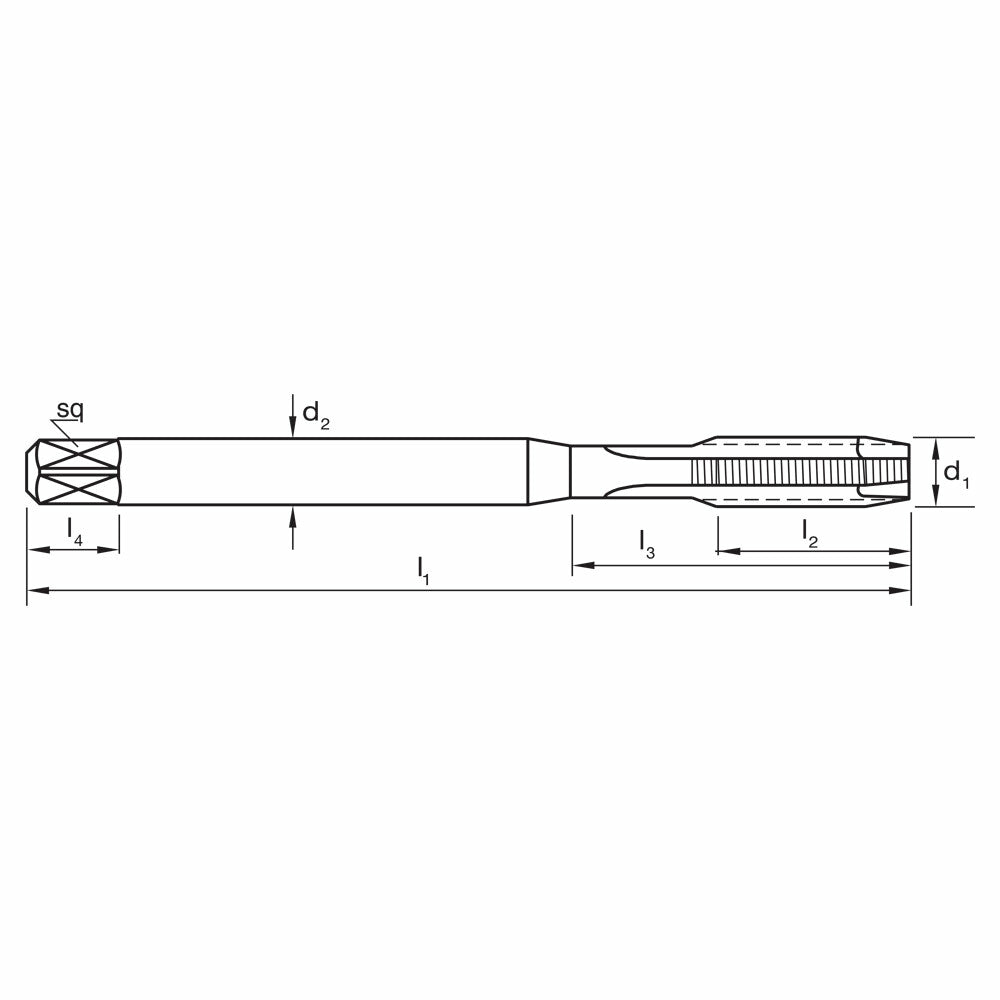

• Shank Form: A
• x: als
• Type: Spiral Point (Gun)
• Standard: DIN2184-1
• Thread Form: UNC
• Nut Tolerance: 2BX
• Lead: Form B / 4.5 x P

Applications Optimal

• Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Quenched & Tempered: 300MPa: 1010MPa
• Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered: 300MPa: 1010MPa
• Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered: 350MPa: 1180MPa
• Steel - High alloy, cast & tool: Hardened & Tempered: 325MPa: 1100MPa
• Steel - Corrosion resistant & cast - Martensitic: Quenched & Tempered: 240MPa: 810MPa

Applications Effective

• Steel - Corrosion resistant & cast - Ferritic / Martensitic: Annealed: 200MPa: 680MPa
• Stainless Steel - Precipitation Hardening: 250MPa: 840MPa
• Cast Iron, Grey (GG) - Ferritic / Pearlitic: 180MPa: 610MPa
• Cast Iron, Grey (GG) - Pearlitic: 260MPa: 880MPa
• Cast Iron, Nodular (GGG) - Ferritic: 160MPa: 570MPa
• Cast Iron, Nodular (GGG) - Pearlitic: 250MPa: 840MPa
• Cast Iron, Malleable - Ferritic: 130MPa: 460MPa
• Cast Iron, Malleable - Pearlitic: 230MPa: 780MPa
• Copper & Copper alloys (Brass/Bronze) - Brass (CuZn, CuSnZn): 90MPa: 320MPa
• Titanium & Titanium alloys - CP Titanium: 400MPa
• Titanium & Titanium alloys - Alpha alloys: 860MPa
• Titanium & Titanium alloys - Alpha / Beta alloys :Annealed: 960MPa
• Titanium & Titanium alloys - Alpha / Beta alloys: Age Hardened: 1170MPa
• Titanium & Titanium alloys - Beta alloys: Annealed: 830MPa
• Titanium & Titanium alloys - Beta alloys: Age Hardened: 1400MPa
• Hardened steel: Hardened & Tempered: 45 ‚ó¶
