Description
Description

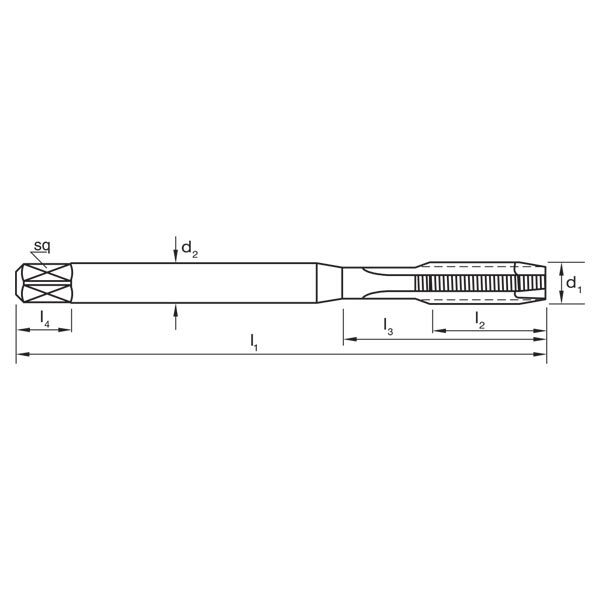

Dimensions
- d1 (mm): 6.35
- d2 (mm): 7
- l1 (mm): 80
- l2 (mm): 19
- l3 (mm): 30
- l4 (mm): 8
- Square Size (mm): 5.5
- z: 3
- Drill Size (mm): 5.5 (drill)
- TPI: 28 (TPI)
Features
- Use in stainless steels and high strength steels up to 1000N/mm2
- Through holes
- Suitable for machine operations
- Depths up to approx. 3 x d1
Specifications
- Designation: VA (for stainless and tough steels)
- Material: Premium Grade High Speed Steel (HSSE-V3)
- Finish: Titanium Carbonitride (TiCN)
- Max Cut Depth: 3xD
- Shank Form: Reinforced Shank (with square drive)
- X: als
- Type: Spiral Point (Gun)
- Standard: DIN2184-1
- Thread Form: UNF
- Nut Tolerance: 2B
- Lead: Form B / 4.5 x P
Applications
- Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
- Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
- Steel - Low alloy & cast < 5% of alloying elements: Annealed
- Steel - Corrosion resistant & cast - Ferritic / Martensitic: Annealed
- Stainless Steel - Austenitic: Age Hardened
- Stainless Steel – Duplex
- Stainless Steel - Precipitation Hardening
- High temperature alloys - Fe based: Annealed
Specifications
Specifications
Dimensions
- d1 (mm): 6.35
- d2 (mm): 7
- l1 (mm): 80
- l2 (mm): 19
- l3 (mm): 30
- l4 (mm): 8
- Square Size (mm): 5.5
- z: 3
- Drill Size (mm): 5.5 (drill)
- TPI: 28 (TPI)
Specifications
- Designation: VA (for stainless and tough steels)
- Material: Premium Grade High Speed Steel (HSSE-V3)
- Finish: Titanium Carbonitride (TiCN)
- Max Cut Depth: 3xD
- Shank Form: Reinforced Shank (with square drive)
- X: als
- Type: Spiral Point (Gun)
- Standard: DIN2184-1
- Thread Form: UNF
- Nut Tolerance: 2B
- Lead: Form B / 4.5 x P
Applications
Applications
Applications
- Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
- Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
- Steel - Low alloy & cast < 5% of alloying elements: Annealed
- Steel - Corrosion resistant & cast - Ferritic / Martensitic: Annealed
- Stainless Steel - Austenitic: Age Hardened
- Stainless Steel – Duplex
- Stainless Steel - Precipitation Hardening
- High temperature alloys - Fe based: Annealed
Features & Benefits
Features & Benefits
Features
- Use in stainless steels and high strength steels up to 1000N/mm2
- Through holes
- Suitable for machine operations
- Depths up to approx. 3 x d1
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

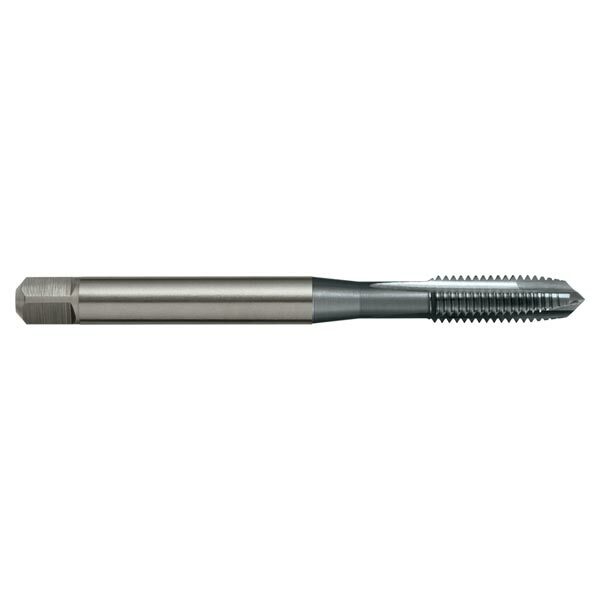

Sutton T177 UNF Spiral Point Tap - Premium HSS TiCN
Sutton T177 UNF Spiral Point Tap - Premium HSS TiCN
SKU: A0013415
- Wide Range
- Reliable Services
- Proven Trust
Available
The Sutton T177 UNF Spiral Point Tap by Sutton Tools is a 0 with Premium Grade High Speed Steel HSSE-V3 alloy material. It offers d1 11.1125 mm and is suitable for Stainless Steel - Precipitation Hardening.
- FREE SHIPPING OVER $299*
- RETURN AND EXCHANGE POLICY
Resources
Couldn't load pickup availability
Description
Description
Dimensions
- d1 (mm): 6.35
- d2 (mm): 7
- l1 (mm): 80
- l2 (mm): 19
- l3 (mm): 30
- l4 (mm): 8
- Square Size (mm): 5.5
- z: 3
- Drill Size (mm): 5.5 (drill)
- TPI: 28 (TPI)
Features
- Use in stainless steels and high strength steels up to 1000N/mm2
- Through holes
- Suitable for machine operations
- Depths up to approx. 3 x d1
Specifications
- Designation: VA (for stainless and tough steels)
- Material: Premium Grade High Speed Steel (HSSE-V3)
- Finish: Titanium Carbonitride (TiCN)
- Max Cut Depth: 3xD
- Shank Form: Reinforced Shank (with square drive)
- X: als
- Type: Spiral Point (Gun)
- Standard: DIN2184-1
- Thread Form: UNF
- Nut Tolerance: 2B
- Lead: Form B / 4.5 x P
Applications
- Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
- Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
- Steel - Low alloy & cast < 5% of alloying elements: Annealed
- Steel - Corrosion resistant & cast - Ferritic / Martensitic: Annealed
- Stainless Steel - Austenitic: Age Hardened
- Stainless Steel – Duplex
- Stainless Steel - Precipitation Hardening
- High temperature alloys - Fe based: Annealed
Specifications
Specifications
Dimensions
- d1 (mm): 6.35
- d2 (mm): 7
- l1 (mm): 80
- l2 (mm): 19
- l3 (mm): 30
- l4 (mm): 8
- Square Size (mm): 5.5
- z: 3
- Drill Size (mm): 5.5 (drill)
- TPI: 28 (TPI)
Specifications
- Designation: VA (for stainless and tough steels)
- Material: Premium Grade High Speed Steel (HSSE-V3)
- Finish: Titanium Carbonitride (TiCN)
- Max Cut Depth: 3xD
- Shank Form: Reinforced Shank (with square drive)
- X: als
- Type: Spiral Point (Gun)
- Standard: DIN2184-1
- Thread Form: UNF
- Nut Tolerance: 2B
- Lead: Form B / 4.5 x P
Applications
Applications
Applications
- Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
- Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
- Steel - Low alloy & cast < 5% of alloying elements: Annealed
- Steel - Corrosion resistant & cast - Ferritic / Martensitic: Annealed
- Stainless Steel - Austenitic: Age Hardened
- Stainless Steel – Duplex
- Stainless Steel - Precipitation Hardening
- High temperature alloys - Fe based: Annealed
Features & Benefits
Features & Benefits
Features
- Use in stainless steels and high strength steels up to 1000N/mm2
- Through holes
- Suitable for machine operations
- Depths up to approx. 3 x d1
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Sutton T177 UNF Spiral Point Tap - Premium HSS TiCN
Customer Service
Mon-Fri, 08:00-05:00pm
Call Us
(02) 9773-0122
Talk to a Sales Engineer
sales@aimsindustrial.com.au
Warehouse Address
Milperra NSW 2214, Australia
Your cart
(0)
Your cart is currently empty.
Not sure where to start? Try these collections:
Order note
Estimate Shipping
Product Comparison
| Description |
| Price |
| Vendor |
| Type |
| Product variants |
|
| The Sutton T177 UNF Spiral Point Tap by Sutton Tools is a 0 with Premium Grade High Speed Steel HSSE-V3 alloy material. It offers d1 11.1125 mm and is suitable for Stainless Steel - Precipitation Hardening. |
Regular price
From $68.70
Sale price
From $68.70
Regular price
Unit price
/per
| Sutton Tools |
TPI
12,14,16,18,20,24,28
Diameter (inch)
1,7/8,3/4,5/8,9/16,1/2,7/16,3/8,5/16,1/4
|
Choose your option
Sutton T177 UNF Spiral Point Tap - Premium HSS TiCN
Sutton T177 UNF Spiral Point Tap - Premium HSS TiCN
SKU: A0013415
Hurry up, only 2 items left in stock.
The Sutton T177 UNF Spiral Point Tap by Sutton Tools is a 0 with Premium Grade High Speed Steel HSSE-V3 alloy material. It offers d1 11.1125 mm and is suitable for Stainless Steel - Precipitation Hardening.
