Sutton T183 Metric Spiral Flute Tap - R15 N - Premium HSS 1

Sutton T183 Metric Spiral Flute Tap - R15 N - Premium HSS 2

Sutton T1830200 Metric M2 x 0.4 Spiral Flute Tap - R15 N - HSSE V3

Sutton T1830250 Metric M2.5 x 0.45 Spiral Flute Tap - R15 N - HSSE V3

Sutton T1830300 Metric M3 x 0.5 Spiral Flute Tap - R15 N - HSSE V3

Sutton T1830350 Metric M3.5 x 0.6 Spiral Flute Tap - R15 N - HSSE V3

Sutton T1830400 Metric M4 x 0.7 Spiral Flute Tap - R15 N - HSSE V3

Sutton T1830500 Metric M5 x 0.8 Spiral Flute Tap - R15 N - HSSE V3

Sutton T1830600 Metric M6 x 1 Spiral Flute Tap - R15 N - HSSE V3

Sutton T1830800 Metric M8 x 1.25 Spiral Flute Tap - R15 N - HSSE V3

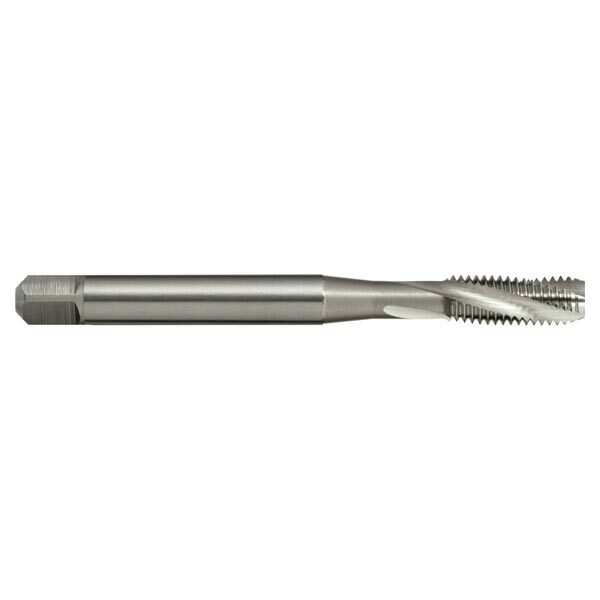

Sutton T1831000 Metric M10 x 1.5 Spiral Flute Tap - R15 N - HSSE V3

Specifications +

Specifications

Designation: N (for normal general purpose type materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Bright
Max Cut Depth: 1.5xD
Shank Form: Reinforced Shank (with square drive)
Helix Angle: R15
X: als
Type: Spiral Flute
Standard: DIN371
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: ISO 2 / 6H
Lead: Form C / 3 x P

Application +

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Aluminum & Magnesium, wrought alloy - Non Heat Treatable
Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened

Features & Benefits +

Features

General purpose use
Suitable for materials up to 1000N/mm2
Blind holes
Depths up to 1.5 x d1

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Save 30%

Sutton T183 Metric Spiral Flute Tap - R15 N - Premium HSS

SKU: A0013457

Type: Spiral Flute Tap

$34.41

$34.41 ~~$49.16~~

Inc. GST

⚙High Speed Steel (HSS)

⚙Sutton Metric Spiral Flute

📐Multiple Sizes Available

🔩Precise Thread Cutting

🏗Metalworking & Manufacturing

☑High Speed Operation Rated

Available

Product Highlights −

Features

General purpose use
Suitable for materials up to 1000N/mm2
Blind holes
Depths up to 1.5 x d1

Specifications

Designation: N (for normal general purpose type materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Bright
Max Cut Depth: 1.5xD
Shank Form: Reinforced Shank (with square drive)
Helix Angle: R15
X: als
Type: Spiral Flute
Standard: DIN371
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: ISO 2 / 6H
Lead: Form C / 3 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Aluminum & Magnesium, wrought alloy - Non Heat Treatable
Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened

FREE SHIPPING OVER $299*
RETURN AND EXCHANGE POLICY

Resources

Sutton-Tools-Taps-Dies-Threading-Catalogue

Sutton-Tools-ISO-Taps-Catalogue

Specifications +

Specifications

Designation: N (for normal general purpose type materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Bright
Max Cut Depth: 1.5xD
Shank Form: Reinforced Shank (with square drive)
Helix Angle: R15
X: als
Type: Spiral Flute
Standard: DIN371
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: ISO 2 / 6H
Lead: Form C / 3 x P

Application +

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Aluminum & Magnesium, wrought alloy - Non Heat Treatable
Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened

Features & Benefits +

Features

General purpose use
Suitable for materials up to 1000N/mm2
Blind holes
Depths up to 1.5 x d1
