Sutton T189 Metric Spiral Flute Tap - R40 N - Premium HSS Blue1

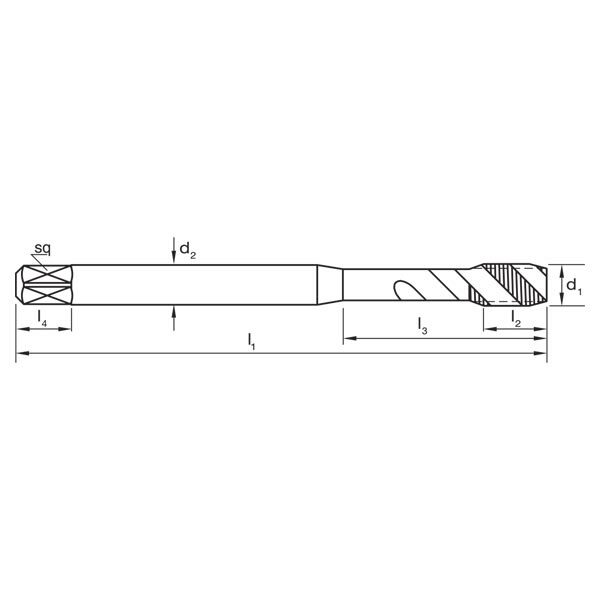

Sutton T189 Metric Spiral Flute Tap - R40 N - Premium HSS Blue2

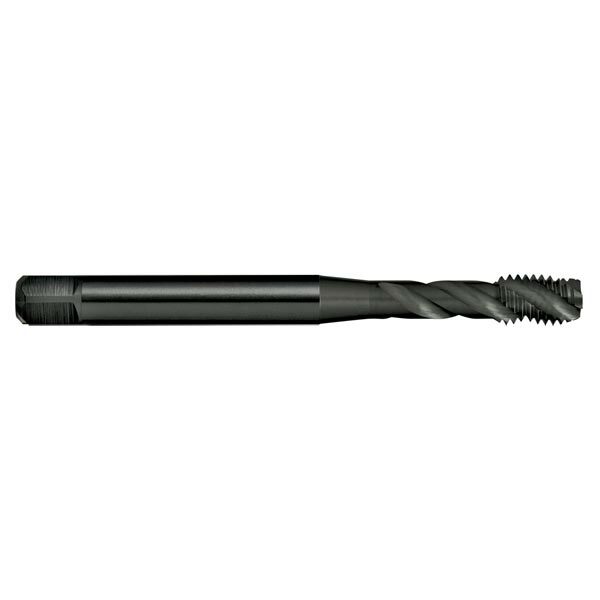

Sutton T1890200 M2 x 0.4 Spiral Flute Tap - R40 N - HSSE V3 Blue
Sutton T1890250 M2.5 x 0.45 Spiral Flute Tap - R40 N - HSSE V3 Blue
Sutton T1890300 M3 x 0.5 Spiral Flute Tap - R40 N - HSSE V3 Blue
Sutton T1890400 M4 x 0.7 Spiral Flute Tap - R40 N - HSSE V3 Blue
Sutton T1890500 M5 x 0.8 Spiral Flute Tap - R40 N - HSSE V3 Blue
Sutton T1890600 Metric M6 x 1 Spiral Flute Tap - R40 N - HSSE V3 Blue
Sutton T1890800 M8 x 1.25 Spiral Flute Tap - R40 N - HSSE V3 Blue
Sutton T1891000 M10 x 1.5 Spiral Flute Tap - R40 N - HSSE V3 Blue
Sutton T189 Metric Spiral Flute Tap - R40 N - Premium HSS Blue1
Sutton T189 Metric Spiral Flute Tap - R40 N - Premium HSS Blue2
Sutton T1890200 M2 x 0.4 Spiral Flute Tap - R40 N - HSSE V3 Blue
Sutton T1890250 M2.5 x 0.45 Spiral Flute Tap - R40 N - HSSE V3 Blue
Sutton T1890300 M3 x 0.5 Spiral Flute Tap - R40 N - HSSE V3 Blue
Sutton T1890400 M4 x 0.7 Spiral Flute Tap - R40 N - HSSE V3 Blue
Sutton T1890500 M5 x 0.8 Spiral Flute Tap - R40 N - HSSE V3 Blue
Sutton T1890600 Metric M6 x 1 Spiral Flute Tap - R40 N - HSSE V3 Blue
Sutton T1890800 M8 x 1.25 Spiral Flute Tap - R40 N - HSSE V3 Blue
Sutton T1891000 M10 x 1.5 Spiral Flute Tap - R40 N - HSSE V3 Blue

Sutton T189 Metric Spiral Flute Tap - R40 N - Premium HSS Blue

Sutton T189 Metric Spiral Flute Tap - R40 N - Premium HSS Blue

SKU: A0013506

$48.84
$48.84
Inc. GST

Available

The Sutton T189 Metric Spiral Flute Tap by Sutton Tools is a 0 made from Premium Grade High Speed Steel (HSSE-V3). It provides a Pitch of 1.5 mm and is suitable for Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed.
Buy Now

Resources

File icon
Sutton-Tools-Taps-Dies-Threading-Catalogue
File icon
Sutton-Tools-ISO-Taps-Catalogue

Features

  • General purpose use
  • Suitable for materials up to 1000N/mm2
  • Blind holes
  • Depths up to 2.5 x d1

Specifications

  • Designation: N (for normal general purpose type materials)
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Steam Oxide (Blue)
  • Max Cut Depth: 2.5xD
  • Shank Form: Reinforced Shank (with square drive)
  • Helix Angle: R40
  • X: als
  • Type: Spiral Flute
  • Standard: DIN371
  • Thread Form: ISO Metric Coarse (M)
  • Nut Tolerance: ISO 2 / 6H
  • Lead: Form C / 3 x P

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
  • Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
  • Steel - High alloy, cast & tool: Annealed

Specifications

  • Designation: N (for normal general purpose type materials)
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Steam Oxide (Blue)
  • Max Cut Depth: 2.5xD
  • Shank Form: Reinforced Shank (with square drive)
  • Helix Angle: R40
  • X: als
  • Type: Spiral Flute
  • Standard: DIN371
  • Thread Form: ISO Metric Coarse (M)
  • Nut Tolerance: ISO 2 / 6H
  • Lead: Form C / 3 x P

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
  • Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
  • Steel - High alloy, cast & tool: Annealed

Features

  • General purpose use
  • Suitable for materials up to 1000N/mm2
  • Blind holes
  • Depths up to 2.5 x d1
