Sutton T199 Metric Spiral Flute Tap - R45 VADH - Premium HSS Blue1

Sutton T199 Metric Spiral Flute Tap - R45 VADH - Premium HSS Blue2

Sutton T1990600 M6 x 1 Spiral Flute Tap - R45 VADH - HSSE V3 Blue

Sutton T1990800 M8 x 1.25 Spiral Flute Tap - R45 VADH - HSSE V3 Blue

Sutton T1991000 M10 x 1.5 Spiral Flute Tap - R45 VADH - HSSE V3 Blue

Sutton T1991200 M12 x 1.75 Spiral Flute Tap - R45 VADH - HSSE V3 Blue

Sutton T1991400 M14 x 2 Spiral Flute Tap - R45 VADH - HSSE V3 Blue

Sutton T1991600 M16 x 2 Spiral Flute Tap - R45 VADH - HSSE V3 Blue

Sutton T1991800 M18 x 2.5 Spiral Flute Tap - R45 VADH - HSSE V3 Blue

Sutton T1992000 M20 x 2.5 Spiral Flute Tap - R45 VADH - HSSE V3 Blue

Sutton T1992200 M22 x 2.5 Spiral Flute Tap - R45 VADH - HSSE V3 Blue

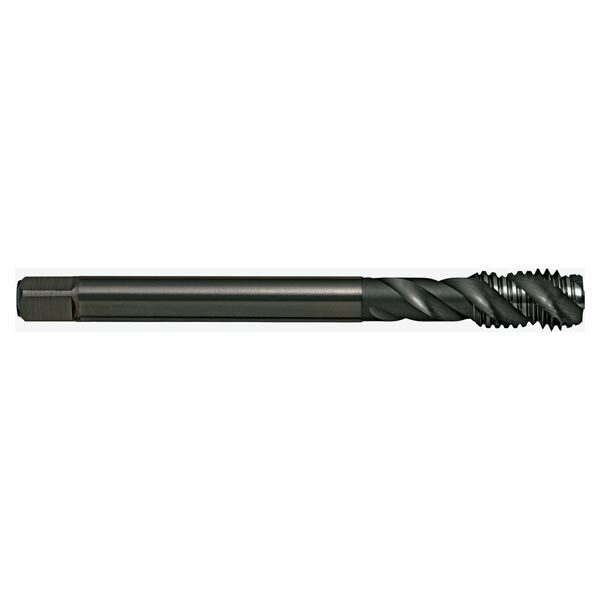

Sutton T1992400 M24 x 3 Spiral Flute Tap - R45 VADH - HSSE V3 Blue

Sutton T1992700 M27 x 3 Spiral Flute Tap - R45 VADH - HSSE V3 Blue

Sutton T1993000 M30 x 3.5 Spiral Flute Tap - R45 VADH - HSSE V3 Blue

Sutton T1993600 M36 x 4 Spiral Flute Tap - R45 VADH - HSSE V3 Blue

Sutton T1994200 M42 x 4.5 Spiral Flute Tap - R45 VADH - HSSE V3 Blue

Specifications +

Specifications

Designation: VA (for stainless and tough steels)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Steam Oxide (Blue)
Max Cut Depth: 3xD
Shank Form: Reduced Shank (with square drive)
Helix Angle: R45
X: als
Type: Spiral Flute
Standard: DIN376
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: ISO 2 / 6H
Lead: Form C / 3 x P

Application +

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Stainless Steel - Austenitic: Age Hardened
Stainless Steel - Duplex

Features & Benefits +

Features

Suitable for controlled tapping in deep holes
Use in stainless steels and high strength steels up to 850N/mm2
Blind holes
Depths up to 3 x d1

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Sutton T199 Metric Spiral Flute Tap - R45 VADH - Premium HSS Blue

SKU: A0013573

Type: Spiral Flute Tap

$63.42

Inc. GST

⚙High Speed Steel (HSS)

⚙Sutton Metric Spiral Flute

📐Multiple Sizes Available

🔩Precise Thread Cutting

🏗Metalworking & Manufacturing

☑High Speed Operation Rated

Available

Product Highlights −

Features

Suitable for controlled tapping in deep holes
Use in stainless steels and high strength steels up to 850N/mm2
Blind holes
Depths up to 3 x d1

Specifications

Designation: VA (for stainless and tough steels)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Steam Oxide (Blue)
Max Cut Depth: 3xD
Shank Form: Reduced Shank (with square drive)
Helix Angle: R45
X: als
Type: Spiral Flute
Standard: DIN376
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: ISO 2 / 6H
Lead: Form C / 3 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Stainless Steel - Austenitic: Age Hardened
Stainless Steel - Duplex

FREE SHIPPING OVER $299*
RETURN AND EXCHANGE POLICY

Resources

Sutton-Tools-Taps-Dies-Threading-Catalogue

Sutton-Tools-ISO-Taps-Catalogue

Specifications +

Specifications

Designation: VA (for stainless and tough steels)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Steam Oxide (Blue)
Max Cut Depth: 3xD
Shank Form: Reduced Shank (with square drive)
Helix Angle: R45
X: als
Type: Spiral Flute
Standard: DIN376
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: ISO 2 / 6H
Lead: Form C / 3 x P

Application +

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Stainless Steel - Austenitic: Age Hardened
Stainless Steel - Duplex

Features & Benefits +

Features

Suitable for controlled tapping in deep holes
Use in stainless steels and high strength steels up to 850N/mm2
Blind holes
Depths up to 3 x d1

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Available Options:

M6mm spiral flute tap
Model Number: T1990600
M8mm spiral flute tap
Model Number: T1990800
M10mm spiral flute tap
Model Number: T1991000
M12mm spiral flute tap
Model Number: T1991200
M14mm spiral flute tap
Model Number: T1991400
M16mm spiral flute tap
Model Number: T1991600
M18mm spiral flute tap
Model Number: T1991800
M20mm spiral flute tap
Model Number: T1992000
M22mm spiral flute tap
Model Number: T1992200
M24mm spiral flute tap
Model Number: T1992400
M27mm spiral flute tap
Model Number: T1992700
M30mm spiral flute tap
Model Number: T1993000
M36mm spiral flute tap
Model Number: T1993600
M42mm spiral flute tap
Model Number: T1994200
