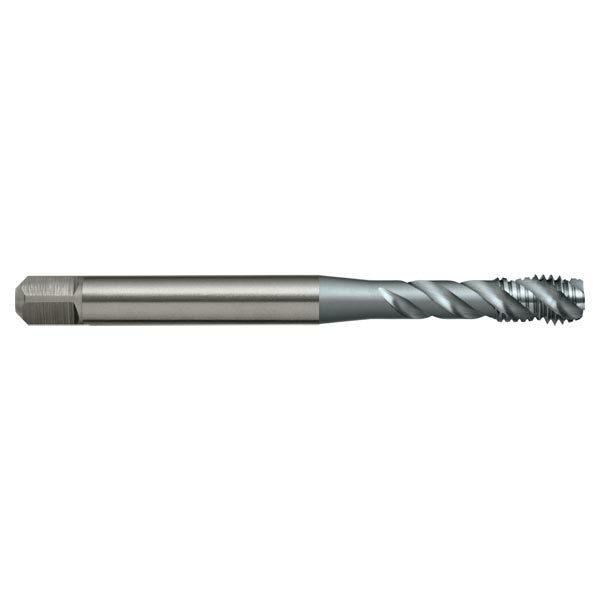

Sutton T201 Metric Spiral Flute Tap - R45 VADH - Premium HSS TiCN1

Sutton T201 Metric Spiral Flute Tap - R45 VADH - Premium HSS TiCN2

Sutton T2010300 M3 x 0.5 Spiral Flute Tap - R45 VADH - HSSE V3 TiCN

Sutton T2010400 M4 x 0.7 Spiral Flute Tap - R45 VADH - HSSE V3 TiCN

Sutton T2010500 M5 x 0.8 Spiral Flute Tap - R45 VADH - HSSE V3 TiCN

Sutton T2010600 M6 x 1 Spiral Flute Tap - R45 VADH - HSSE V3 TiCN

Sutton T2010800 M8 x 1.25 Spiral Flute Tap - R45 VADH - HSSE V3 TiCN

Sutton T2011000 M10 x 1.5 Spiral Flute Tap - R45 VADH - HSSE V3 TiCN

Description +

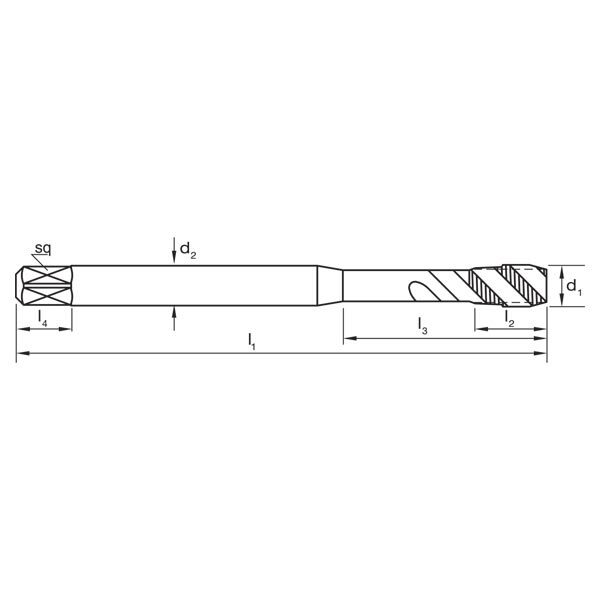

Dimensions

d1: M3
d2 (mm): 3.5
l1 (mm): 56
l2 (mm): 5
l3 (mm): 18
l4 (mm): 6
Square Size (mm): 2.7
z: 3
Drill Size (mm): 2.5 (drill)
Pitch (mm): 0.5 (pitch)

Features

Suitable for controlled tapping in deep holes
Use in stainless steels and high strength steels up to 850N/mm2
Blind holes
Depths up to 3 x d1

Specifications

Designation: VA (for stainless and tough steels)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Titanium Carbonitride (TiCN)
Max Cut Depth: 3xD
Shank Form: Reduced Shank (with square drive)
Helix Angle: R45
X: als
Type: Spiral Flute
Standard: DIN371
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: ISO 2 / 6H
Lead: Form C / 3 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Corrosion resistant & cast - Ferritic / Martensitic: Annealed
Stainless Steel - Austenitic: Age Hardened
Stainless Steel – Duplex
Stainless Steel - Precipitation Hardening
High temperature alloys - Fe based: Annealed

Specifications +

Dimensions

d1: M3
d2 (mm): 3.5
l1 (mm): 56
l2 (mm): 5
l3 (mm): 18
l4 (mm): 6
Square Size (mm): 2.7
z: 3
Drill Size (mm): 2.5 (drill)
Pitch (mm): 0.5 (pitch)

Specifications

Designation: VA (for stainless and tough steels)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Titanium Carbonitride (TiCN)
Max Cut Depth: 3xD
Shank Form: Reduced Shank (with square drive)
Helix Angle: R45
X: als
Type: Spiral Flute
Standard: DIN371
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: ISO 2 / 6H
Lead: Form C / 3 x P

Application +

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Corrosion resistant & cast - Ferritic / Martensitic: Annealed
Stainless Steel - Austenitic: Age Hardened
Stainless Steel – Duplex
Stainless Steel - Precipitation Hardening
High temperature alloys - Fe based: Annealed

Features & Benefits +

Features

Suitable for controlled tapping in deep holes
Use in stainless steels and high strength steels up to 850N/mm2
Blind holes
Depths up to 3 x d1

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Sutton T201 Metric Spiral Flute Tap - R45 VADH - Premium HSS TiCN

SKU: A0013586

$61.35

Inc. GST

Buy It Now

Available

The Sutton T201 Metric Spiral Flute Tap by Sutton Tools is a 0 with Premium Grade High Speed Steel (HSSE-V3). It provides Pitch (mm): 1.5 (pitch) and is suitable for Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed.
