Sutton T208 Metric Spiral Flute Tap - R50 VAPM IK - Premium HSS TiCN1

Sutton T208 Metric Spiral Flute Tap - R50 VAPM IK - Premium HSS TiCN2

Sutton T2081200 M12 x 1.75 Spiral Flute Tap R50 VAPM IK - HSSE V3 TiCN

Sutton T2081400 M14 x 2 Spiral Flute Tap - R50 VAPM IK - HSSE V3 TiCN

Sutton T2081600 M16 x 2 Spiral Flute Tap - R50 VAPM IK - HSSE V3 TiCN

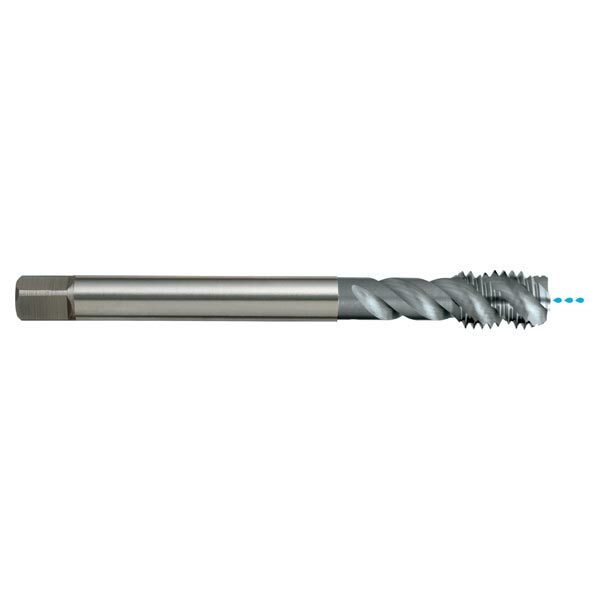

Sutton T2081800 M18 x 2.5 Spiral Flute Tap R50 VAPM IK - HSSE V3 TiCN

Sutton T2082000 M20 x 2.5 Spiral Flute Tap R50 VAPM IK - HSSE V3 TiCN

Description +

Dimensions

d1: M12
d2 (mm): 9
l1 (mm): 110
l2 (mm): 17.5
l4 (mm): 10
Square Size (mm): 7
z: 4
Drill Size (mm): 10.2 (drill)
Pitch (mm): 1.75 (pitch)

Features

Universal high performance tapping
PM-HSSE V3 offers superior tool life
Use in stainless steels and high strength steels up to 850N/mm2
Deep blind holes
Depths up to 3 x d1

Specifications

Designation: VA (for stainless and tough steels)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Titanium Carbonitride (TiCN)
Max Cut Depth: 3xD
Shank Form: Reduced Shank (with square drive)
Helix Angle: R50
X: ru
Type: Spiral Flute
Standard: DIN376
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: 6HX
Lead: Form C / 3 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Steel - Corrosion resistant & cast - Ferritic / Martensitic: Annealed
Stainless Steel - Austenitic: Age Hardened
Stainless Steel – Duplex
Stainless Steel - Precipitation Hardening
High temperature alloys - Fe based: Annealed

Specifications +

Dimensions

d1: M12
d2 (mm): 9
l1 (mm): 110
l2 (mm): 17.5
l4 (mm): 10
Square Size (mm): 7
z: 4
Drill Size (mm): 10.2 (drill)
Pitch (mm): 1.75 (pitch)

Specifications

Designation: VA (for stainless and tough steels)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Titanium Carbonitride (TiCN)
Max Cut Depth: 3xD
Shank Form: Reduced Shank (with square drive)
Helix Angle: R50
X: ru
Type: Spiral Flute
Standard: DIN376
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: 6HX
Lead: Form C / 3 x P

Application +

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Steel - Corrosion resistant & cast - Ferritic / Martensitic: Annealed
Stainless Steel - Austenitic: Age Hardened
Stainless Steel – Duplex
Stainless Steel - Precipitation Hardening
High temperature alloys - Fe based: Annealed

Features & Benefits +

Features

Universal high performance tapping
PM-HSSE V3 offers superior tool life
Use in stainless steels and high strength steels up to 850N/mm2
Deep blind holes
Depths up to 3 x d1

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Sutton T208 Metric Spiral Flute Tap - R50 VAPM IK - Premium HSS TiCN

SKU: A0013643

$351.49

Inc. GST

Buy It Now

Available

The Sutton T208 Metric Spiral Flute Tap by Sutton Tools is a 0 with Premium Grade High Speed Steel HSSE-V3. It provides 10.2 (drill) and is suitable for Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered.
