Description
Description
Features
- Suitable for harder short chipping materials up to 45 HRc
- Blind holes
- Depths up to 1.5 x d1
Specifications
- Designation: H (for hard materials)
- Material: Powdered Metallurgy- High Speed Steel Cobalt (PM-HSS Co8%)
- Finish: Titanium Carbonitride (TiCN)
- Max Cut Depth: 1.5xD
- Shank Form: Reduced Shank (with square drive)
- Helix Angle: R15
- X: als
- Type: Spiral Flute
- Standard: DIN376
- Thread Form: ISO Metric Coarse (M)
- Nut Tolerance: ISO 2 / 6HX
- Lead: Form C / 3 x P
Applications
- Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Quenched & Tempered
- Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
- Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
- Steel - High alloy, cast & tool: Hardened & Tempered
- Steel - Corrosion resistant & cast - Martensitic: Quenched & Tempered
- Cast Iron, Grey (GG) - Ferritic / Pearlitic
- Cast Iron, Grey (GG) – Pearlitic
- Cast Iron, Nodular (GGG) – Ferritic/Pearlitic
- Cast Iron, Malleable – Ferritic/Pearlitic
- Copper & Copper alloys (Brass/Bronze) - Brass (CuZn, CuSnZn)
- Titanium & Titanium alloys - Alpha / Beta alloys: Annealed
- Titanium & Titanium alloys - Alpha / Beta alloys: Age Hardened
- Titanium & Titanium alloys - Beta alloys: Age Hardened
- Cast Iron - Chilled: Cast
Specifications
Specifications
Specifications
- Designation: H (for hard materials)
- Material: Powdered Metallurgy- High Speed Steel Cobalt (PM-HSS Co8%)
- Finish: Titanium Carbonitride (TiCN)
- Max Cut Depth: 1.5xD
- Shank Form: Reduced Shank (with square drive)
- Helix Angle: R15
- X: als
- Type: Spiral Flute
- Standard: DIN376
- Thread Form: ISO Metric Coarse (M)
- Nut Tolerance: ISO 2 / 6HX
- Lead: Form C / 3 x P
Applications
Applications
Applications
- Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Quenched & Tempered
- Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
- Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
- Steel - High alloy, cast & tool: Hardened & Tempered
- Steel - Corrosion resistant & cast - Martensitic: Quenched & Tempered
- Cast Iron, Grey (GG) - Ferritic / Pearlitic
- Cast Iron, Grey (GG) – Pearlitic
- Cast Iron, Nodular (GGG) – Ferritic/Pearlitic
- Cast Iron, Malleable – Ferritic/Pearlitic
- Copper & Copper alloys (Brass/Bronze) - Brass (CuZn, CuSnZn)
- Titanium & Titanium alloys - Alpha / Beta alloys: Annealed
- Titanium & Titanium alloys - Alpha / Beta alloys: Age Hardened
- Titanium & Titanium alloys - Beta alloys: Age Hardened
- Cast Iron - Chilled: Cast
Features & Benefits
Features & Benefits
Features
- Suitable for harder short chipping materials up to 45 HRc
- Blind holes
- Depths up to 1.5 x d1
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

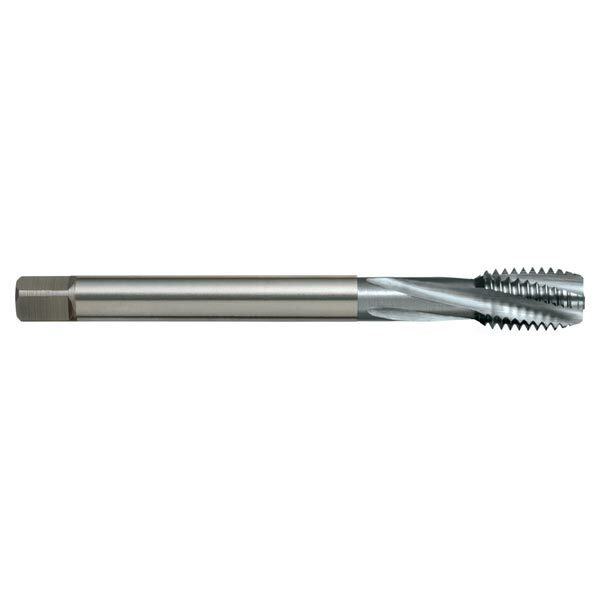

Sutton T212 Metric Spiral Flute Tap - R15 H - Cobalt Steel TiCN
