Sutton T215 M3 x 0.5 Spiral Flute Tap R15 Ti - PM-HSS Co - TiCN - DIN 371
Out of stock

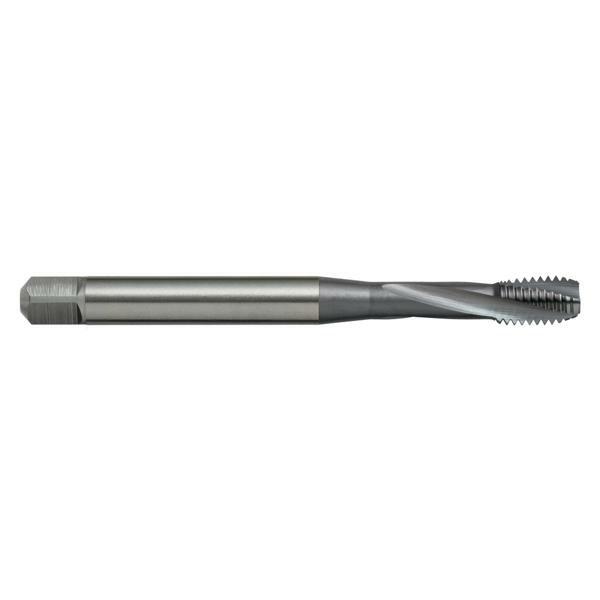

The Sutton T215 is a spiral flute tap (R15 spiral, Ti designation) for metric coarse (M) threads, made from powder metallurgy, 8% cobalt high speed steel (PM-HSS Co) with a TiCN coating. This listing covers 6 sizes from M3 x 0.5 to M10 x 1.5.
The 15° right-hand spiral flute suits blind holes in tough, short chipping materials, up to 1.5 x D in depth. The slow helix does not transport chips well, so it has no advantage in soft or long chipping materials, especially deeper than 1.5 x d1. The chamfer is Form C (3 x P), generally for blind holes.
The thread tolerance is 6HX. The tap is built to DIN 371: reinforced shank with square drive.
Where this product is used
- For Titanium based alloys.
- Blind holes up to approx. 1.5 x d1.
Design features
- Powder metallurgy, 8% cobalt high speed steel (PM-HSS Co). The cobalt keeps strength and hardness at very high cutting temperatures, which suits heavy duty tapping of materials up to 45 HRC.
- TiCN coating for abrasive materials such as cast iron and aluminium alloys, and adhesive materials such as copper and copper-based alloys.
- 3 flutes.
- 15° right-hand spiral flute.
- Form C chamfer, 3 x P.
- Thread tolerance 6HX.
- Unique cutting geometry for highly efficient swarf ejection.
- Optimised micro-finish for optimal process reliability and excellent thread quality.
- DIN 371 construction, reinforced shank with square drive.
Sizes
Dimensions are in millimetres. Item numbers are the Sutton catalogue numbers. If you are not sure which tapping drill to use, try our tap drill size selector.
| Item no. | Thread size | Pitch (mm) | Tapping drill (mm) | l1 overall (mm) | l2 thread (mm) | l3 (mm) | d2 shank (mm) | sq square (mm) | l4 square length (mm) | Flutes |
|---|---|---|---|---|---|---|---|---|---|---|
| T215 0300 | M3 x 0.5 | 0.5 | 2.5 | 56 | 6 | 18 | 3.5 | 2.7 | 6 | 3 |
| T215 0400 | M4 x 0.7 | 0.7 | 3.3 | 63 | 7 | 21 | 4.5 | 3.4 | 6 | 3 |
| T215 0500 | M5 x 0.8 | 0.8 | 4.2 | 70 | 8 | 25 | 6 | 4.9 | 8 | 3 |
| T215 0600 | M6 x 1 | 1 | 5 | 80 | 10 | 30 | 6 | 4.9 | 8 | 3 |
| T215 0800 | M8 x 1.25 | 1.25 | 6.8 | 90 | 12.5 | 35 | 8 | 6.2 | 9 | 3 |
| T215 1000 | M10 x 1.5 | 1.5 | 8.5 | 100 | 15 | 39 | 10 | 8 | 11 | 3 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | T215 |
| Type | Spiral flute tap |
| Thread series | Metric coarse (M) |
| Material | PM-HSS Co |
| Finish | TiCN |
| Designation | Ti |
| Spiral | R15 (15° right-hand) |
| Chamfer | Form C / 3 x P |
| Thread tolerance | 6HX |
| Standard | DIN 371 |
| Flutes | 3 |
| Sizes in this listing | 6 sizes, M3 x 0.5 to M10 x 1.5 |
