Description
Description
Dimensions
- d1: M12
- d2 (mm): 9
- l1 (mm): 110
- l2 (mm): 17.5
- l4 (mm): 10
- Square Size (mm): 7
- z: 2
- Drill Size (mm): 10.2 (drill)
- Pitch (mm): 1.75 (pitch)
Features
- Suitable for use in wrought aluminium and low silicon aluminium
- Blind holes
- Depths up to 3 x d1
- CrN for longer tool life
Specifications
- Designation: Al (for malleable alumimum with long chips)
- Material: Premium Grade High Speed Steel (HSSE-V3)
- Finish: Chromium Nitride (CrN)
- Max Cut Depth: 3xD
- Shank Form: Reduced Shank (with square drive)
- Helix Angle: R45
- X: als
- Type: Spiral Flute
- Standard: DIN376
- Thread Form: ISO Metric Coarse (M)
- Nut Tolerance: ISO 2 / 6H
- Lead: Form C / 3 x P
Applications
- Aluminum & Magnesium, wrought alloy - Non Heat Treatable
- Aluminum & Magnesium, wrought alloy - Heat Treatable
- Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable
- Aluminum & Magnesium, cast alloy ≤12% Si - Heat Treatable: Age Hardened
- Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%
- Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn)
Specifications
Specifications
Dimensions
- d1: M12
- d2 (mm): 9
- l1 (mm): 110
- l2 (mm): 17.5
- l4 (mm): 10
- Square Size (mm): 7
- z: 2
- Drill Size (mm): 10.2 (drill)
- Pitch (mm): 1.75 (pitch)
Specifications
- Designation: Al (for malleable alumimum with long chips)
- Material: Premium Grade High Speed Steel (HSSE-V3)
- Finish: Chromium Nitride (CrN)
- Max Cut Depth: 3xD
- Shank Form: Reduced Shank (with square drive)
- Helix Angle: R45
- X: als
- Type: Spiral Flute
- Standard: DIN376
- Thread Form: ISO Metric Coarse (M)
- Nut Tolerance: ISO 2 / 6H
- Lead: Form C / 3 x P
Applications
Applications
Applications
- Aluminum & Magnesium, wrought alloy - Non Heat Treatable
- Aluminum & Magnesium, wrought alloy - Heat Treatable
- Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable
- Aluminum & Magnesium, cast alloy ≤12% Si - Heat Treatable: Age Hardened
- Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%
- Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn)
Features & Benefits
Features & Benefits
Features
- Suitable for use in wrought aluminium and low silicon aluminium
- Blind holes
- Depths up to 3 x d1
- CrN for longer tool life
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

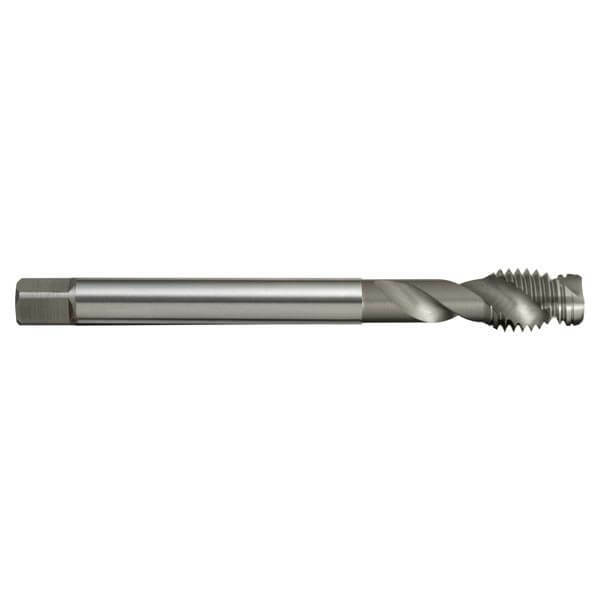

Sutton T234 Metric Spiral Flute Tap - R45 Al - Premium HSS CrN
