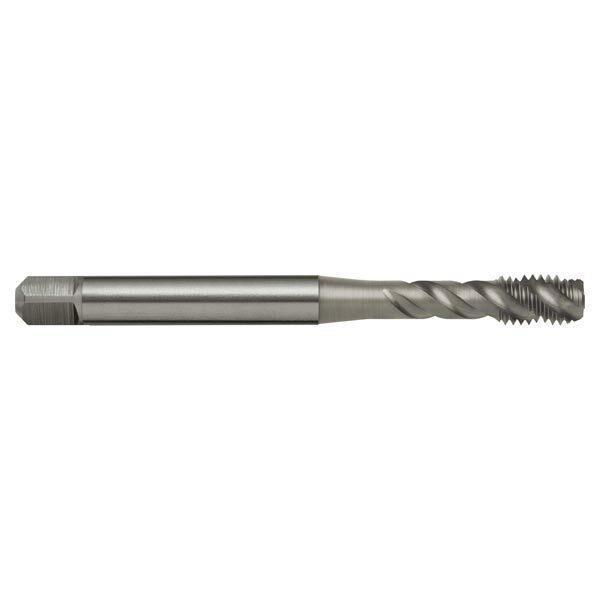

Sutton T235 Metric Spiral Flute Tap - R45 W - Premium HSS Ni1

Sutton T235 Metric Spiral Flute Tap - R45 W - Premium HSS Ni2

Sutton T2350200 Metric M2 x 0.4 Spiral Flute Tap - R45 W - HSSE V3 Ni

Sutton T2350250 M2.5 x 0.45 Spiral Flute Tap - R45 W - HSSE V3 Ni

Sutton T2350300 Metric M3 x 0.5 Spiral Flute Tap - R45 W - HSSE V3 Ni

Sutton T2350350 M3.5 x 0.6 Spiral Flute Tap - R45 W - HSSE V3 Ni

Sutton T2350400 Metric M4 x 0.7 Spiral Flute Tap - R45 W - HSSE V3 Ni

Sutton T2350500 Metric M5 x 0.8 Spiral Flute Tap - R45 W - HSSE V3 Ni

Sutton T2350600 Metric M6 x 1 Spiral Flute Tap - R45 W - HSSE V3 Ni

Sutton T2350800 Metric M8 x 1.25 Spiral Flute Tap - R45 W - HSSE V3 Ni

Sutton T2351000 Metric M10 x 1.5 Spiral Flute Tap - R45 W - HSSE V3 Ni

Description +

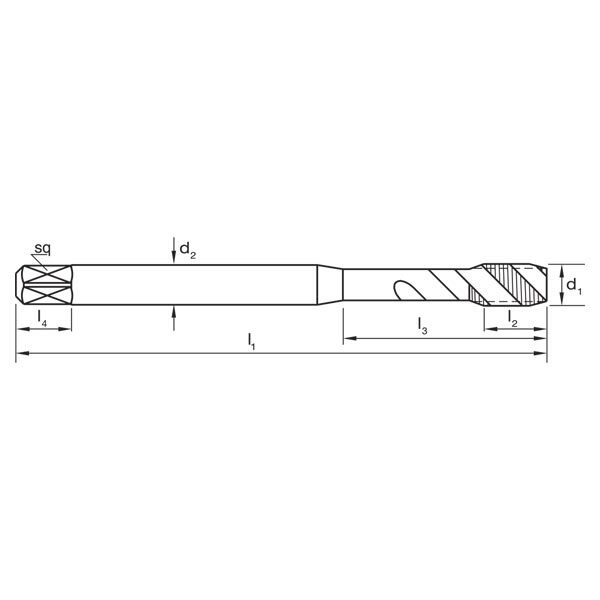

Dimensions

d1: M2
d2 (mm): 2.8
l1 (mm): 45
l2 (mm): 8
l3 (mm): n/a|
l4 (mm): 5
Square Size (mm): 2.1
z: 2
Drill Size (mm): 1.6 (drill)
Pitch (mm): 0.4 (pitch)

Features

Suitable for use in soft materials
CrN for copper and non-ferrous materials
Blind holes
Depths up to 3 x d1

Specifications

Designation: W (for soft materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Plasma Nitride (Ni)
Max Cut Depth: 3xD
Shank Form: Reinforced Shank (with square drive)
Helix Angle: R45
X: als
Type: Spiral Flute
Standard: DIN371
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: ISO 2 / 6H
Lead: Form C / 3 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Aluminum & Magnesium, wrought alloy - Non Heat Treatable

Specifications +

Dimensions

d1: M2
d2 (mm): 2.8
l1 (mm): 45
l2 (mm): 8
l3 (mm): n/a|
l4 (mm): 5
Square Size (mm): 2.1
z: 2
Drill Size (mm): 1.6 (drill)
Pitch (mm): 0.4 (pitch)

Specifications

Designation: W (for soft materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Plasma Nitride (Ni)
Max Cut Depth: 3xD
Shank Form: Reinforced Shank (with square drive)
Helix Angle: R45
X: als
Type: Spiral Flute
Standard: DIN371
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: ISO 2 / 6H
Lead: Form C / 3 x P

Application +

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Aluminum & Magnesium, wrought alloy - Non Heat Treatable

Features & Benefits +

Features

Suitable for use in soft materials
CrN for copper and non-ferrous materials
Blind holes
Depths up to 3 x d1

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Sutton T235 Metric Spiral Flute Tap - R45 W - Premium HSS Ni

SKU: A0013746

$50.46

Inc. GST

Buy It Now

Available

The Sutton T235 Metric Spiral Flute Tap by Sutton Tools is a Spiral Flute made from Premium Grade High Speed Steel (HSSE-V3). It provides a Drill Size of 8.5 (drill) and is suitable for Aluminum & Magnesium, wrought alloy - Non Heat Treatable.
