Description
Description
Dimensions
- d1: M6
- d2 (mm): 4.5
- l1 (mm): 80
- l2 (mm): 10
- l4 (mm): 6
- Square Size (mm): 3.4
- z: 3
- Drill Size (mm): 5 (drill)
- Pitch (mm): 1 (pitch)
Features
- Suitable for use in soft materials
- CrN for copper and non-ferrous materials
- Blind holes
- Depths up to 3 x d1
Specifications
- Designation: W (for soft materials)
- Material: Premium Grade High Speed Steel (HSSE-V3)
- Finish: Plasma Nitride (Ni)
- Max Cut Depth: 3xD
- Shank Form: Reduced Shank (with square drive)
- Helix Angle: R45
- X: als
- Type: Spiral Flute
- Standard: DIN376
- Thread Form: ISO Metric Coarse (M)
- Nut Tolerance: ISO 2 / 6H
- Lead: Form C / 3 x P
Applications
- Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
- Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
- Steel - Low alloy & cast < 5% of alloying elements: Annealed
- Aluminum & Magnesium, wrought alloy - Non Heat Treatable
Specifications
Specifications
Dimensions
- d1: M6
- d2 (mm): 4.5
- l1 (mm): 80
- l2 (mm): 10
- l4 (mm): 6
- Square Size (mm): 3.4
- z: 3
- Drill Size (mm): 5 (drill)
- Pitch (mm): 1 (pitch)
Specifications
- Designation: W (for soft materials)
- Material: Premium Grade High Speed Steel (HSSE-V3)
- Finish: Plasma Nitride (Ni)
- Max Cut Depth: 3xD
- Shank Form: Reduced Shank (with square drive)
- Helix Angle: R45
- X: als
- Type: Spiral Flute
- Standard: DIN376
- Thread Form: ISO Metric Coarse (M)
- Nut Tolerance: ISO 2 / 6H
- Lead: Form C / 3 x P
Applications
Applications
Applications
- Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
- Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
- Steel - Low alloy & cast < 5% of alloying elements: Annealed
- Aluminum & Magnesium, wrought alloy - Non Heat Treatable
Features & Benefits
Features & Benefits
Features
- Suitable for use in soft materials
- CrN for copper and non-ferrous materials
- Blind holes
- Depths up to 3 x d1
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

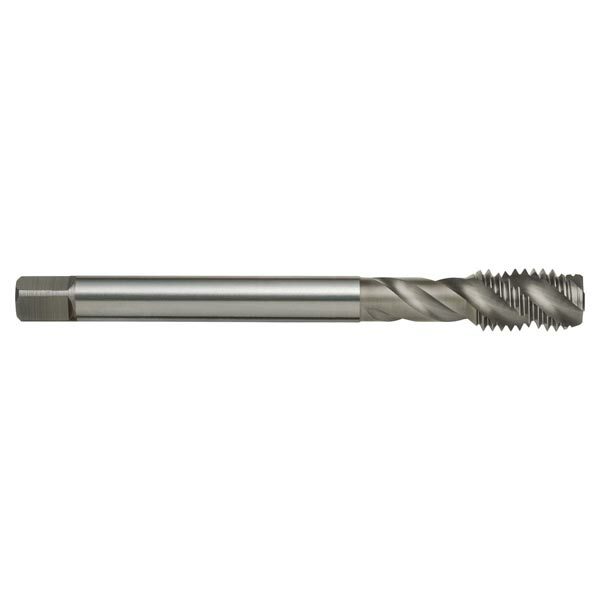

Sutton T236 Metric Spiral Flute Tap - R45 W - Premium HSS Ni
Sutton T236 Metric Spiral Flute Tap - R45 W - Premium HSS Ni
SKU: A0013755
- Wide Range
- Reliable Services
- Proven Trust
Available
The Sutton T236 Metric Spiral Flute Tap by Sutton Tools is a 0 with Plasma Nitride finish and meets Standard DIN376 and has Helix Angle R45 and Shank Form Reduced Shank with square drive and Max Cut Depth 3xD and Lead Form C / 3 x P. It provides Drill Size 8.5 (drill) and is suitable for blind holes.
- FREE SHIPPING OVER $299*
- RETURN AND EXCHANGE POLICY
Couldn't load pickup availability
Description
Description
Dimensions
- d1: M6
- d2 (mm): 4.5
- l1 (mm): 80
- l2 (mm): 10
- l4 (mm): 6
- Square Size (mm): 3.4
- z: 3
- Drill Size (mm): 5 (drill)
- Pitch (mm): 1 (pitch)
Features
- Suitable for use in soft materials
- CrN for copper and non-ferrous materials
- Blind holes
- Depths up to 3 x d1
Specifications
- Designation: W (for soft materials)
- Material: Premium Grade High Speed Steel (HSSE-V3)
- Finish: Plasma Nitride (Ni)
- Max Cut Depth: 3xD
- Shank Form: Reduced Shank (with square drive)
- Helix Angle: R45
- X: als
- Type: Spiral Flute
- Standard: DIN376
- Thread Form: ISO Metric Coarse (M)
- Nut Tolerance: ISO 2 / 6H
- Lead: Form C / 3 x P
Applications
- Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
- Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
- Steel - Low alloy & cast < 5% of alloying elements: Annealed
- Aluminum & Magnesium, wrought alloy - Non Heat Treatable
Specifications
Specifications
Dimensions
- d1: M6
- d2 (mm): 4.5
- l1 (mm): 80
- l2 (mm): 10
- l4 (mm): 6
- Square Size (mm): 3.4
- z: 3
- Drill Size (mm): 5 (drill)
- Pitch (mm): 1 (pitch)
Specifications
- Designation: W (for soft materials)
- Material: Premium Grade High Speed Steel (HSSE-V3)
- Finish: Plasma Nitride (Ni)
- Max Cut Depth: 3xD
- Shank Form: Reduced Shank (with square drive)
- Helix Angle: R45
- X: als
- Type: Spiral Flute
- Standard: DIN376
- Thread Form: ISO Metric Coarse (M)
- Nut Tolerance: ISO 2 / 6H
- Lead: Form C / 3 x P
Applications
Applications
Applications
- Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
- Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
- Steel - Low alloy & cast < 5% of alloying elements: Annealed
- Aluminum & Magnesium, wrought alloy - Non Heat Treatable
Features & Benefits
Features & Benefits
Features
- Suitable for use in soft materials
- CrN for copper and non-ferrous materials
- Blind holes
- Depths up to 3 x d1
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Sutton T236 Metric Spiral Flute Tap - R45 W - Premium HSS Ni
Customer Service
Mon-Fri, 08:00-05:00pm
Call Us
(02) 9773-0122
Talk to a Sales Engineer
sales@aimsindustrial.com.au
Warehouse Address
Milperra NSW 2214, Australia
Your cart
(0)
Your cart is currently empty.
Not sure where to start? Try these collections:
Order note
Estimate Shipping
Product Comparison
| Description |
| Price |
| Vendor |
| Type |
| Product variants |
|
| The Sutton T236 Metric Spiral Flute Tap by Sutton Tools is a 0 with Plasma Nitride finish and meets Standard DIN376 and has Helix Angle R45 and Shank Form Reduced Shank with square drive and Max Cut Depth 3xD and Lead Form C / 3 x P. It provides Drill Size 8.5 (drill) and is suitable for blind holes. |
Regular price
From $51.83
Sale price
From $51.83
Regular price
Unit price
/per
| Sutton Tools |
Diameter (metric)
M6,M8,M10,M12,M14,M16,M18,M20
|
Choose your option
Sutton T236 Metric Spiral Flute Tap - R45 W - Premium HSS Ni
Sutton T236 Metric Spiral Flute Tap - R45 W - Premium HSS Ni
SKU: A0013755
Available
The Sutton T236 Metric Spiral Flute Tap by Sutton Tools is a 0 with Plasma Nitride finish and meets Standard DIN376 and has Helix Angle R45 and Shank Form Reduced Shank with square drive and Max Cut Depth 3xD and Lead Form C / 3 x P. It provides Drill Size 8.5 (drill) and is suitable for blind holes.
