Description
Description
Dimensions
- d1: M3
- d2 (mm): 3.5
- l1 (mm): 56
- l2 (mm): 5
- l3 (mm): 18
- l4 (mm): 6
- Square Size (mm): 2.7
- z: 3
- Drill Size (mm): 2.5 (drill)
- Pitch (mm): 0.5 (pitch)
Features
- Suitable for use in soft materials
- CrN for copper and non-ferrous materials
- Blind Holes
- Depths up to 3 x d
Specifications
- Designation: Cu (for copper materials)
- Material: Premium Grade High Speed Steel (HSSE-V3)
- Finish: Chromium Nitride (CrN)
- Max Cut Depth: 3xD
- Shank Form: Reinforced Shank (with square drive)
- Helix Angle: R45
- X: als
- Type: Spiral Flute
- Standard: DIN371
- Thread Form: ISO Metric Coarse (M)
- Nut Tolerance: ISO 2 / 6H
- Lead: Form C / 3 x P
Applications
- Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%
- Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn)
Specifications
Specifications
Dimensions
- d1: M3
- d2 (mm): 3.5
- l1 (mm): 56
- l2 (mm): 5
- l3 (mm): 18
- l4 (mm): 6
- Square Size (mm): 2.7
- z: 3
- Drill Size (mm): 2.5 (drill)
- Pitch (mm): 0.5 (pitch)
Specifications
- Designation: Cu (for copper materials)
- Material: Premium Grade High Speed Steel (HSSE-V3)
- Finish: Chromium Nitride (CrN)
- Max Cut Depth: 3xD
- Shank Form: Reinforced Shank (with square drive)
- Helix Angle: R45
- X: als
- Type: Spiral Flute
- Standard: DIN371
- Thread Form: ISO Metric Coarse (M)
- Nut Tolerance: ISO 2 / 6H
- Lead: Form C / 3 x P
Applications
Applications
Applications
- Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%
- Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn)
Features & Benefits
Features & Benefits
Features
- Suitable for use in soft materials
- CrN for copper and non-ferrous materials
- Blind Holes
- Depths up to 3 x d
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

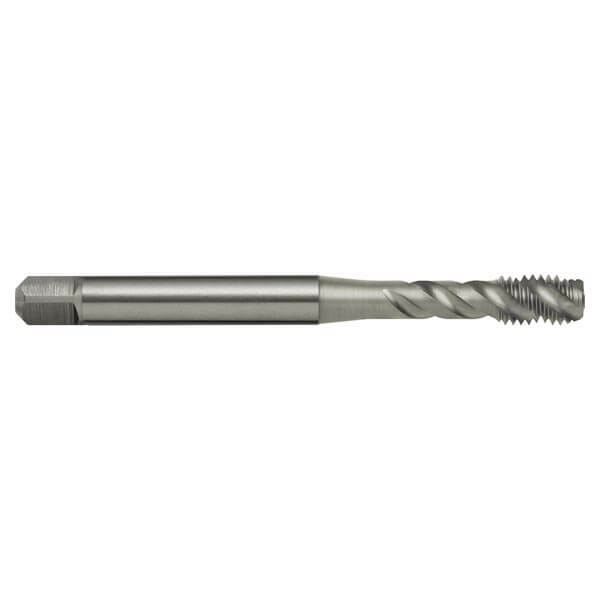

Sutton T239 Metric Spiral Flute Tap - R45 Cu - Premium HSS CrN
Sutton T239 Metric Spiral Flute Tap - R45 Cu - Premium HSS CrN
SKU: A0013774
- Wide Range
- Reliable Services
- Proven Trust
Available
The Sutton T239 Metric Spiral Flute Tap by Sutton Tools is a 0 with CrN finish. It offers a max cut depth of 3xD and is suitable for Copper & Copper alloys (Brass/Bronze).
- FREE SHIPPING OVER $299*
- RETURN AND EXCHANGE POLICY
Couldn't load pickup availability
Description
Description
Dimensions
- d1: M3
- d2 (mm): 3.5
- l1 (mm): 56
- l2 (mm): 5
- l3 (mm): 18
- l4 (mm): 6
- Square Size (mm): 2.7
- z: 3
- Drill Size (mm): 2.5 (drill)
- Pitch (mm): 0.5 (pitch)
Features
- Suitable for use in soft materials
- CrN for copper and non-ferrous materials
- Blind Holes
- Depths up to 3 x d
Specifications
- Designation: Cu (for copper materials)
- Material: Premium Grade High Speed Steel (HSSE-V3)
- Finish: Chromium Nitride (CrN)
- Max Cut Depth: 3xD
- Shank Form: Reinforced Shank (with square drive)
- Helix Angle: R45
- X: als
- Type: Spiral Flute
- Standard: DIN371
- Thread Form: ISO Metric Coarse (M)
- Nut Tolerance: ISO 2 / 6H
- Lead: Form C / 3 x P
Applications
- Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%
- Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn)
Specifications
Specifications
Dimensions
- d1: M3
- d2 (mm): 3.5
- l1 (mm): 56
- l2 (mm): 5
- l3 (mm): 18
- l4 (mm): 6
- Square Size (mm): 2.7
- z: 3
- Drill Size (mm): 2.5 (drill)
- Pitch (mm): 0.5 (pitch)
Specifications
- Designation: Cu (for copper materials)
- Material: Premium Grade High Speed Steel (HSSE-V3)
- Finish: Chromium Nitride (CrN)
- Max Cut Depth: 3xD
- Shank Form: Reinforced Shank (with square drive)
- Helix Angle: R45
- X: als
- Type: Spiral Flute
- Standard: DIN371
- Thread Form: ISO Metric Coarse (M)
- Nut Tolerance: ISO 2 / 6H
- Lead: Form C / 3 x P
Applications
Applications
Applications
- Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%
- Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn)
Features & Benefits
Features & Benefits
Features
- Suitable for use in soft materials
- CrN for copper and non-ferrous materials
- Blind Holes
- Depths up to 3 x d
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Sutton T239 Metric Spiral Flute Tap - R45 Cu - Premium HSS CrN
