Sutton T241 Metric Spiral Flute Tap - R45 W - Premium HSS Tinite1

Sutton T241 Metric Spiral Flute Tap - R45 W - Premium HSS Tinite2

Sutton T2410300 M3 x 0.5 Spiral Flute Tap - R45 W - HSSE V3 TiN

Sutton T2410350 M3.5 x 0.6 Spiral Flute Tap - R45 W - HSSE V3 TiN

Sutton T2410400 M4 x 0.7 Spiral Flute Tap - R45 W - HSSE V3 TiN

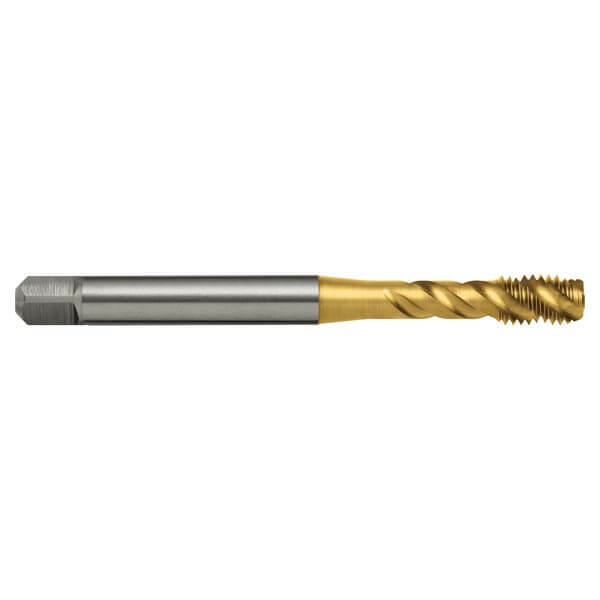

Sutton T2410500 M5 x 0.8 Spiral Flute Tap - R45 W - HSSE V3 TiN

Sutton T2410600 M6 x 1 Spiral Flute Tap - R45 W - HSSE V3 TiN

Sutton T2410800 M8 x 1.25 Spiral Flute Tap - R45 W - HSSE V3 TiN

Sutton T2411000 M10 x 1.5 Spiral Flute Tap - R45 W - HSSE V3 TiN

Description +

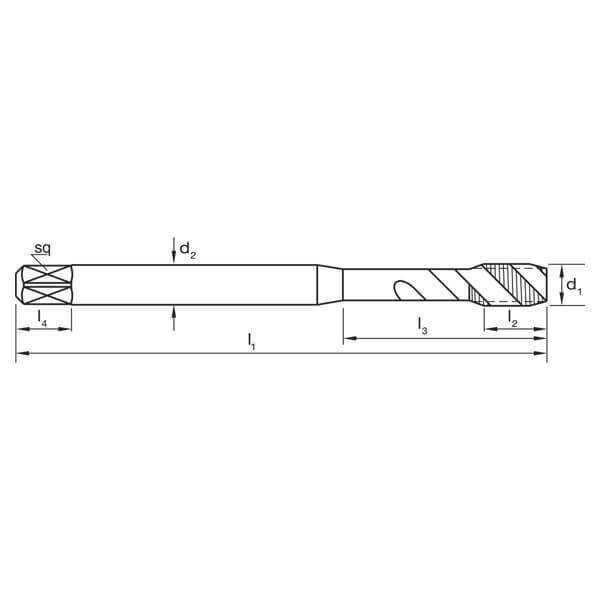

Dimensions

d1: M3
d2 (mm): 3.5
l1 (mm): 56
l2 (mm): 5
l3 (mm): 18
l4 (mm): 6
Square Size (mm): 2.7
z: 3
Drill Size (mm): 2.5 (drill)
Pitch (mm): 0.5 (Pitch)

Features

Suitable for use in soft materials
CrN for copper and non-ferrous materials
Blind holes
Depths up to 3 x d1

Specifications

Designation: W (for soft materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Titanium Nitride (TiN)
Max Cut Depth: 3xD
Shank Form: Reinforced Shank (with square drive)
Helix Angle: R45
X: als
Type: Spiral Flute
Standard: DIN371
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: ISO 2 / 6H
Lead: Form C / 3 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn)

Specifications +

Dimensions

d1: M3
d2 (mm): 3.5
l1 (mm): 56
l2 (mm): 5
l3 (mm): 18
l4 (mm): 6
Square Size (mm): 2.7
z: 3
Drill Size (mm): 2.5 (drill)
Pitch (mm): 0.5 (Pitch)

Specifications

Designation: W (for soft materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Titanium Nitride (TiN)
Max Cut Depth: 3xD
Shank Form: Reinforced Shank (with square drive)
Helix Angle: R45
X: als
Type: Spiral Flute
Standard: DIN371
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: ISO 2 / 6H
Lead: Form C / 3 x P

Application +

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn)

Features & Benefits +

Features

Suitable for use in soft materials
CrN for copper and non-ferrous materials
Blind holes
Depths up to 3 x d1

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Sutton T241 Metric Spiral Flute Tap - R45 W - Premium HSS Tinite

SKU: A0013786

$61.35

Inc. GST

Buy It Now

Available

The Sutton T241 Metric Spiral Flute Tap by Sutton Tools is a 0 with Premium Grade High Speed Steel (HSSE-V3) material. It provides depths up to 3 x d1 and is suitable for Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed.
