Description
Description

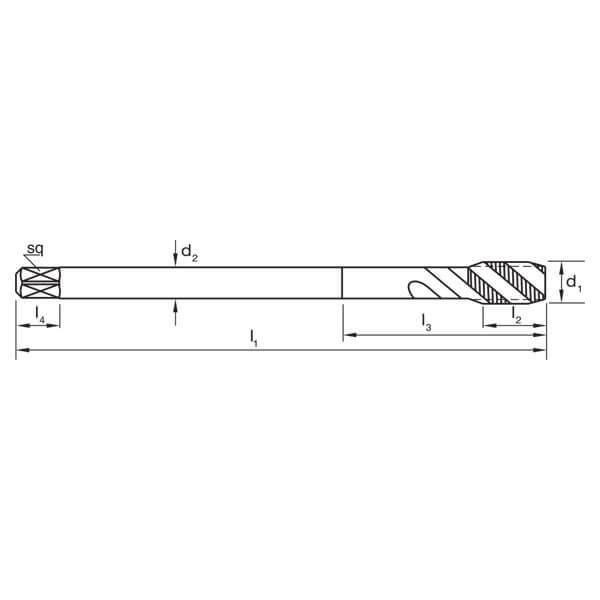

Dimensions
- d1: M6
- d2 (mm): 4.5
- l1 (mm): 80
- l2 (mm): 10
- l4 (mm): 6
- Square Size (mm): 3.4
- z: 3
- Drill Size (mm): 8.8 (drill)
- Pitch (mm): 1 (Pitch)
Features
- Suitable for use in soft materials
- CrN for copper and non-ferrous materials
- Blind holes
- Depths up to 3 x d1
Specifications
- Designation: W (for soft materials)
- Material: Premium Grade High Speed Steel (HSSE-V3)
- Finish: Titanium Nitride (TiN)
- Max Cut Depth: 3xD
- Shank Form: Reduced Shank (with square drive)
- Helix Angle: R45
- X: als
- Type: Spiral Flute
- Standard: DIN376
- Thread Form: ISO Metric Coarse (M)
- Nut Tolerance: ISO 2 / 6H
- Lead: Form C / 3 x P
Applications
- Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
- Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
- Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
- Steel - Low alloy & cast < 5% of alloying elements: Annealed
- Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn)
Specifications
Specifications
Dimensions
- d1: M6
- d2 (mm): 4.5
- l1 (mm): 80
- l2 (mm): 10
- l4 (mm): 6
- Square Size (mm): 3.4
- z: 3
- Drill Size (mm): 8.8 (drill)
- Pitch (mm): 1 (Pitch)
Specifications
- Designation: W (for soft materials)
- Material: Premium Grade High Speed Steel (HSSE-V3)
- Finish: Titanium Nitride (TiN)
- Max Cut Depth: 3xD
- Shank Form: Reduced Shank (with square drive)
- Helix Angle: R45
- X: als
- Type: Spiral Flute
- Standard: DIN376
- Thread Form: ISO Metric Coarse (M)
- Nut Tolerance: ISO 2 / 6H
- Lead: Form C / 3 x P
Applications
Applications
Applications
- Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
- Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
- Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
- Steel - Low alloy & cast < 5% of alloying elements: Annealed
- Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn)
Features & Benefits
Features & Benefits
Features
- Suitable for use in soft materials
- CrN for copper and non-ferrous materials
- Blind holes
- Depths up to 3 x d1
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Sutton T242 Metric Spiral Flute Tap - R45 W - Premium HSS Tinite
Sutton T242 Metric Spiral Flute Tap - R45 W - Premium HSS Tinite
SKU: A0013793
- Wide Range
- Reliable Services
- Proven Trust
Available
The Sutton T242 Metric Spiral Flute Tap by Sutton Tools is a Spiral Flute tap made from Premium Grade High Speed Steel (HSSE-V3) conforming to DIN376. It provides a 3xD max cut depth and is suitable for annealed non-alloy steels.
- FREE SHIPPING OVER $299*
- RETURN AND EXCHANGE POLICY
Couldn't load pickup availability
Description
Description
Dimensions
- d1: M6
- d2 (mm): 4.5
- l1 (mm): 80
- l2 (mm): 10
- l4 (mm): 6
- Square Size (mm): 3.4
- z: 3
- Drill Size (mm): 8.8 (drill)
- Pitch (mm): 1 (Pitch)
Features
- Suitable for use in soft materials
- CrN for copper and non-ferrous materials
- Blind holes
- Depths up to 3 x d1
Specifications
- Designation: W (for soft materials)
- Material: Premium Grade High Speed Steel (HSSE-V3)
- Finish: Titanium Nitride (TiN)
- Max Cut Depth: 3xD
- Shank Form: Reduced Shank (with square drive)
- Helix Angle: R45
- X: als
- Type: Spiral Flute
- Standard: DIN376
- Thread Form: ISO Metric Coarse (M)
- Nut Tolerance: ISO 2 / 6H
- Lead: Form C / 3 x P
Applications
- Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
- Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
- Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
- Steel - Low alloy & cast < 5% of alloying elements: Annealed
- Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn)
Specifications
Specifications
Dimensions
- d1: M6
- d2 (mm): 4.5
- l1 (mm): 80
- l2 (mm): 10
- l4 (mm): 6
- Square Size (mm): 3.4
- z: 3
- Drill Size (mm): 8.8 (drill)
- Pitch (mm): 1 (Pitch)
Specifications
- Designation: W (for soft materials)
- Material: Premium Grade High Speed Steel (HSSE-V3)
- Finish: Titanium Nitride (TiN)
- Max Cut Depth: 3xD
- Shank Form: Reduced Shank (with square drive)
- Helix Angle: R45
- X: als
- Type: Spiral Flute
- Standard: DIN376
- Thread Form: ISO Metric Coarse (M)
- Nut Tolerance: ISO 2 / 6H
- Lead: Form C / 3 x P
Applications
Applications
Applications
- Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
- Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
- Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
- Steel - Low alloy & cast < 5% of alloying elements: Annealed
- Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn)
Features & Benefits
Features & Benefits
Features
- Suitable for use in soft materials
- CrN for copper and non-ferrous materials
- Blind holes
- Depths up to 3 x d1
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Sutton T242 Metric Spiral Flute Tap - R45 W - Premium HSS Tinite
Customer Service
Mon-Fri, 08:00-05:00pm
Call Us
(02) 9773-0122
Talk to a Sales Engineer
sales@aimsindustrial.com.au
Warehouse Address
Milperra NSW 2214, Australia
Your cart
(0)
Your cart is currently empty.
Not sure where to start? Try these collections:
Order note
Estimate Shipping
Product Comparison
| Description |
| Price |
| Vendor |
| Type |
| Product variants |
|
| The Sutton T242 Metric Spiral Flute Tap by Sutton Tools is a Spiral Flute tap made from Premium Grade High Speed Steel (HSSE-V3) conforming to DIN376. It provides a 3xD max cut depth and is suitable for annealed non-alloy steels. |
Regular price
From $60.92
Sale price
From $60.92
Regular price
Unit price
/per
| Sutton Tools |
Diameter (metric)
M6,M8,M10,M12,M14,M16,M18,M20
|
Choose your option
Sutton T242 Metric Spiral Flute Tap - R45 W - Premium HSS Tinite
Sutton T242 Metric Spiral Flute Tap - R45 W - Premium HSS Tinite
SKU: A0013793
Hurry up, only 6 items left in stock.
The Sutton T242 Metric Spiral Flute Tap by Sutton Tools is a Spiral Flute tap made from Premium Grade High Speed Steel (HSSE-V3) conforming to DIN376. It provides a 3xD max cut depth and is suitable for annealed non-alloy steels.
