Description
Description
Features
- General purpose use, materials up to approx. 1000 N/mm2
- Blind holes
- Suitable for machine operations
- Depths up to approx. 2.5 x d1
Specifications
- Designation: N (for normal general purpose type materials)
- Material: Premium Grade High Speed Steel (HSSE-V3)
- Finish: Bright
- Max Cut Depth: 2.5xD
- Shank Form: Reduced Shank (with square drive)
- Helix Angle: R40
- X: als
- Type: Spiral Flute
- Standard: DIN374
- Thread Form: ISO Metric Fine (MF)
- Nut Tolerance: ISO 2 / 6H
- Lead: Form C / 3 x P
Applications
- Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
- Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
- Steel - Low alloy & cast < 5% of alloying elements: Annealed
- Aluminum & Magnesium, wrought alloy - Non Heat Treatable
- Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened
Specifications
Specifications
- Designation: N (for normal general purpose type materials)
- Material: Premium Grade High Speed Steel (HSSE-V3)
- Finish: Bright
- Max Cut Depth: 2.5xD
- Shank Form: Reduced Shank (with square drive)
- Helix Angle: R40
- X: als
- Type: Spiral Flute
- Standard: DIN374
- Thread Form: ISO Metric Fine (MF)
- Nut Tolerance: ISO 2 / 6H
- Lead: Form C / 3 x P
Applications
Applications
- Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
- Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
- Steel - Low alloy & cast < 5% of alloying elements: Annealed
- Aluminum & Magnesium, wrought alloy - Non Heat Treatable
- Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened
Features & Benefits
Features & Benefits
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

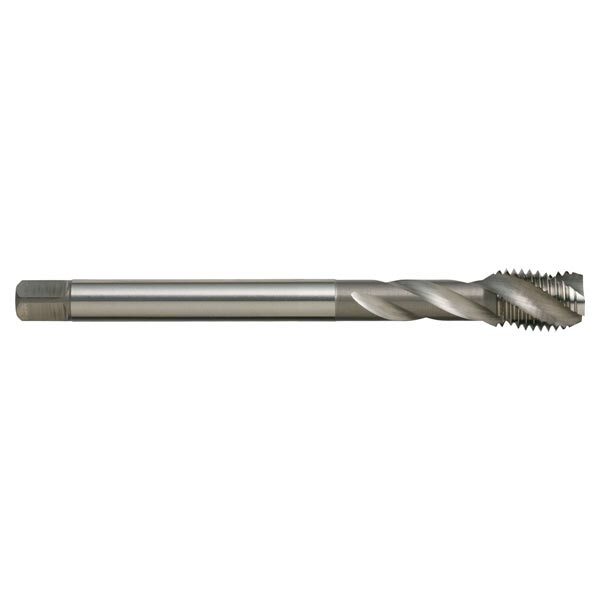

Sutton T245 Metric Fine Spiral Flute Tap - R40 N - Premium HSS
Sutton T245 Metric Fine Spiral Flute Tap - R40 N - Premium HSS
SKU: A0013847
- Wide Range
- Reliable Services
- Proven Trust
Available
The Sutton T245 Metric Fine Spiral Flute Tap by Sutton Tools is a 0 made of Premium Grade High Speed Steel (HSSE-V3). It provides a 9 mm drill size and is suitable for Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed.
