Sutton T247 M6 x 0.75 Spiral Flute Tap R40 - HSSE - Steam Oxide - DIN 374
Available

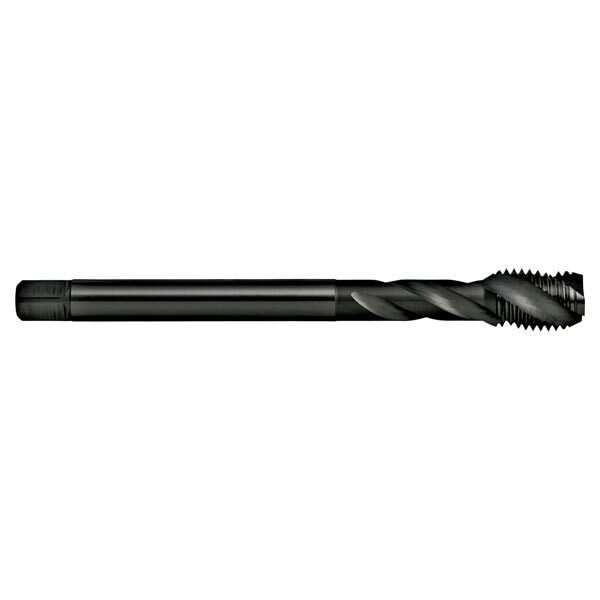

The Sutton T247 is a spiral flute tap (R40 spiral, N designation) for metric fine (MF) threads, made from premium grade high speed steel (HSSE) with a blue steam-oxide finish. This listing covers 10 sizes from M6 x 0.75 to M20 x 1.5.
The 40° right-hand spiral flute suits blind holes in long chipping materials: the high helix angle curls the chips and transports them back out of the hole. The tap cuts on reversal, so the flutes have rake on both front and back faces. The N designation is for normal, general purpose materials, with a normal rake angle and normal thread relief. The chamfer is Form C (2.5 x P), generally for blind holes.
The thread tolerance is ISO 2 / 6H. The tap is built to DIN 374: reduced shank with square drive.
Where this product is used
- General purpose use, materials up to approx. 1000 N/mm2.
- Blind holes.
- Suitable for machine operations.
- Depths up to approx. 2.5 x d1.
Design features
- Premium grade high speed steel (HSSE). The vanadium grade gives high wear resistance and toughness for most tapping applications.
- Blue steam-oxide finish for ferrous metals; it helps prevent chip build-up on the cutting edges and carries lubricant well.
- 3 to 4 flutes, depending on size.
- 40° right-hand spiral flute.
- Form C chamfer, 2.5 x P.
- Thread tolerance ISO 2 / 6H.
- The N designation is for normal, general purpose materials, with a normal rake angle and normal thread relief.
- DIN 374 construction, reduced shank with square drive.
Sizes

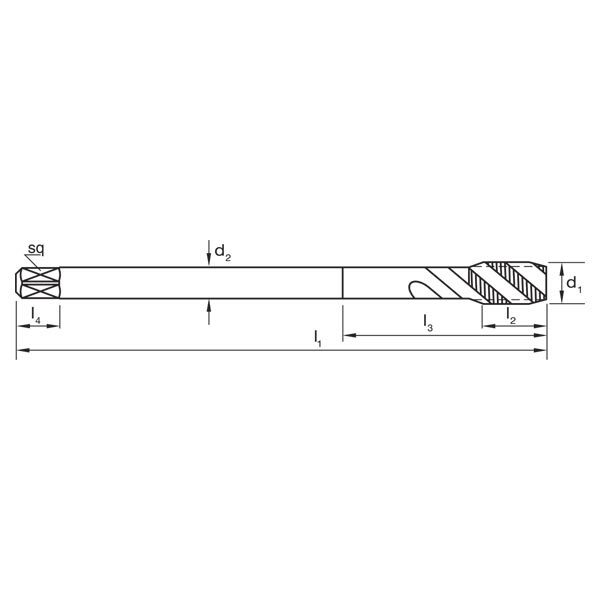

Dimensions are in millimetres. Item numbers are the Sutton catalogue numbers. If you are not sure which tapping drill to use, try our tap drill size selector.
| Item no. | Thread size | Pitch (mm) | Tapping drill (mm) | l1 overall (mm) | l2 thread (mm) | d2 shank (mm) | sq square (mm) | l4 square length (mm) | Flutes |
|---|---|---|---|---|---|---|---|---|---|
| T247 0604 | M6 x 0.75 | 0.75 | 5.3 | 80 | 8 | 4.5 | 3.4 | 6 | 3 |
| T247 0805 | M8 x 1 | 1 | 7 | 90 | 8 | 6 | 4.9 | 8 | 3 |
| T247 1005 | M10 x 1 | 1 | 9 | 90 | 10 | 7 | 5.5 | 8 | 3 |
| T247 1006 | M10 x 1.25 | 1.25 | 8.8 | 100 | 13 | 7 | 5.5 | 8 | 3 |
| T247 1206 | M12 x 1.25 | 1.25 | 10.8 | 100 | 14 | 9 | 7 | 10 | 3 |
| T247 1207 | M12 x 1.5 | 1.5 | 10.5 | 100 | 14 | 9 | 7 | 10 | 3 |
| T247 1407 | M14 x 1.5 | 1.5 | 12.5 | 100 | 16 | 11 | 9 | 12 | 3 |
| T247 1607 | M16 x 1.5 | 1.5 | 14.5 | 100 | 16 | 12 | 9 | 12 | 3 |
| T247 1807 | M18 x 1.5 | 1.5 | 16.5 | 110 | 20 | 14 | 11 | 14 | 4 |
| T247 2007 | M20 x 1.5 | 1.5 | 18.5 | 125 | 20 | 16 | 12 | 15 | 4 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | T247 |
| Type | Spiral flute tap |
| Thread series | Metric fine (MF) |
| Material | HSSE |
| Finish | Steam Oxide |
| Designation | N |
| Spiral | R40 (40° right-hand) |
| Chamfer | Form C / 2.5 x P |
| Thread tolerance | ISO 2 / 6H |
| Standard | DIN 374 |
| Flutes | 3 to 4 |
| Sizes in this listing | 10 sizes, M6 x 0.75 to M20 x 1.5 |
