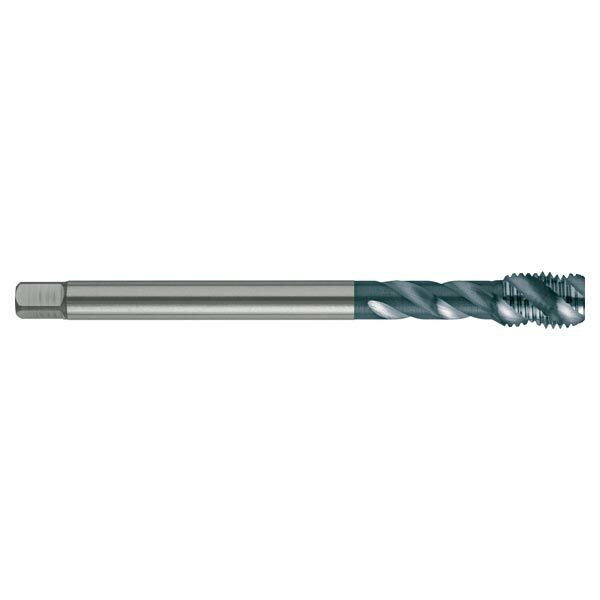

Sutton T251 Metric Fine Spiral Flute Tap - R45 VADH - Premium HSS TiCN1

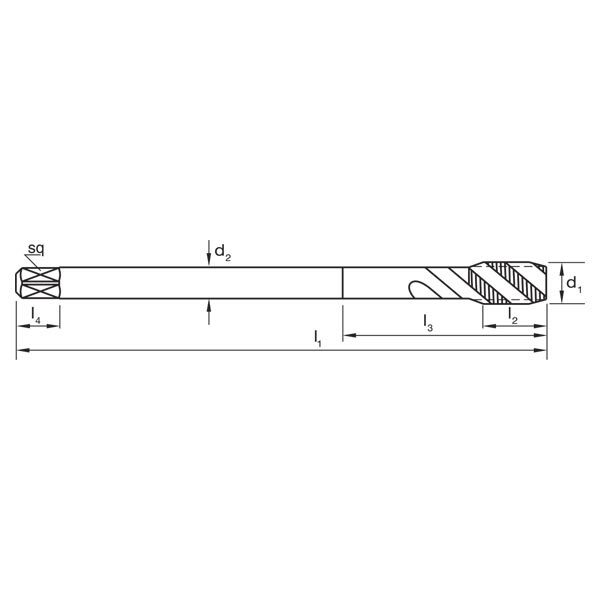

Sutton T251 Metric Fine Spiral Flute Tap - R45 VADH - Premium HSS TiCN2

Sutton T2510604 MF6 x 0.75 Spiral Flute Tap - R45 VADH - HSSE V3 TiCN

Sutton T2510805 MF8 x 1 Spiral Flute Tap - R45 VADH - HSSE V3 TiCN

Sutton T2511005 MF10 x 1 Spiral Flute Tap - R45 VADH - HSSE V3 TiCN

Sutton T2511006 MF10 x 1.25 Spiral Flute Tap - R45 VADH - HSSE V3 TiCN

Sutton T2511205 MF12 x 1 Spiral Flute Tap - R45 VADH - HSSE V3 TiCN

Sutton T2511206 MF12 x 1.25 Spiral Flute Tap - R45 VADH - HSSE V3 TiCN

Sutton T2511407 MF14 x 1.5 Spiral Flute Tap - R45 VADH - HSSE V3 TiCN

Description +

Features

Use in stainless steels and high strength steels up to 1000N/mm2
Blind holes
Suitable for synchronous tapping in machine operations
Depths up to approx. 3 x d1

Specifications

Designation: VA (for stainless and tough steels)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Titanium Carbonitride (TiCN)
Max Cut Depth: 3xD
Shank Form: Reduced Shank (with square drive)
Helix Angle: R45
X: als
Type: Spiral Flute
Standard: DIN374
Thread Form: ISO Metric Fine (MF)
Nut Tolerance: ISO 2 / 6H
Lead: Form C / 3 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Corrosion resistant & cast - Ferritic / Martensitic: Annealed
Stainless Steel - Austenitic: Age Hardened
Stainless Steel Duplex
Stainless Steel - Precipitation Hardening
High temperature alloys - Fe based: Annealed

Specifications +

Designation: VA (for stainless and tough steels)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Titanium Carbonitride (TiCN)
Max Cut Depth: 3xD
Shank Form: Reduced Shank (with square drive)
Helix Angle: R45
X: als
Type: Spiral Flute
Standard: DIN374
Thread Form: ISO Metric Fine (MF)
Nut Tolerance: ISO 2 / 6H
Lead: Form C / 3 x P

Application +

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Corrosion resistant & cast - Ferritic / Martensitic: Annealed
Stainless Steel - Austenitic: Age Hardened
Stainless Steel Duplex
Stainless Steel - Precipitation Hardening
High temperature alloys - Fe based: Annealed

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Sutton T251 Metric Fine Spiral Flute Tap - R45 VADH - Premium HSS TiCN

SKU: A0013923

$119.31

Inc. GST

Buy It Now

Available

The Sutton T251 Metric Fine Spiral Flute Tap by Sutton Tools is a 0 made of Premium Grade High Speed Steel (HSSE-V3). It provides depths up to approximately 3 x d1 and is suitable for Stainless Steel - Precipitation Hardening.
