Sutton T252 Metric Fine Spiral Flute Tap - R50 VA PM - HSSE V3 TiCN1

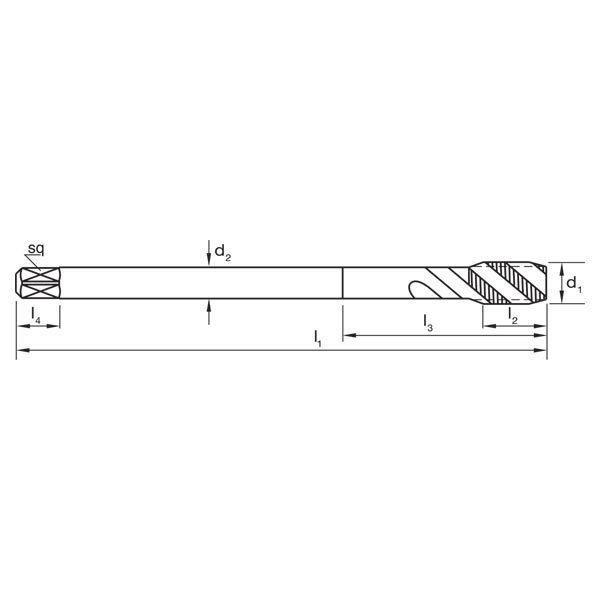

Sutton T252 Metric Fine Spiral Flute Tap - R50 VA PM - HSSE V3 TiCN2

Sutton T2520604 MF6 x 0.75 Spiral Flute Tap - R50 VA PM - HSSE V3 TiCN

Sutton T2520803 MF8 x 0.5 Spiral Flute Tap - R50 VA PM - HSSE V3 TiCN

Sutton T2520805 Metric MF8 x 1 Spiral Flute Tap - R50 VA PM - HSSE V3 TiCN

Sutton T2521004 MF10 x 0.75 Spiral Flute Tap - R50 VA PM - HSSE V3 TiCN

Sutton T2521005 MF10 x 1 Spiral Flute Tap - R50 VA PM - HSSE V3 TiCN

Sutton T2521006 MF10 x 1.25 Spiral Flute Tap - R50 VA PM - HSSE V3 TiCN

Sutton T2521205 MF12 x 1 Spiral Flute Tap - R50 VA PM - HSSE V3 TiCN

Sutton T2521206 MF12 x 1.25 Spiral Flute Tap - R50 VA PM - HSSE V3 TiCN

Sutton T2521207 MF12 x 1.5 Spiral Flute Tap - R50 VA PM - HSSE V3 TiCN

Sutton T2521405 MF14 x 1 Spiral Flute Tap - R50 VA PM - HSSE V3 TiCN

Sutton T2521406 MF14 x 1.25 Spiral Flute Tap - R50 VA PM - HSSE V3 TiCN

Sutton T2521407 MF14 x 1.5 Spiral Flute Tap - R50 VA PM - HSSE V3 TiCN

Sutton T2521605 MF16 x 1 Spiral Flute Tap - R50 VA PM - HSSE V3 TiCN

Sutton T2521607 MF16 x 1.5 Spiral Flute Tap - R50 VA PM - HSSE V3 TiCN

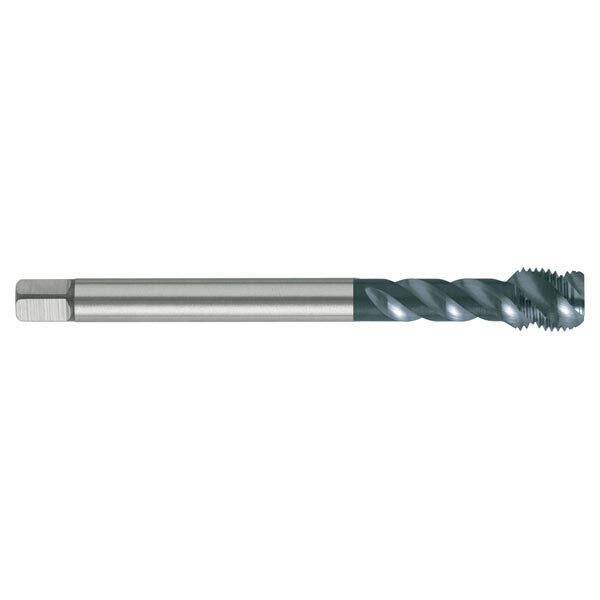

Sutton T2521805 MF18 x 1 Spiral Flute Tap - R50 VA PM - HSSE V3 TiCN

Sutton T2521807 MF18 x 1.5 Spiral Flute Tap - R50 VA PM - HSSE V3 TiCN

Sutton T2522005 MF20 x 1 Spiral Flute Tap - R50 VA PM - HSSE V3 TiCN

Sutton T2522007 MF20 x 1.5 Spiral Flute Tap - R50 VA PM - HSSE V3 TiCN

Description +

Features

Use in stainless steels and high strength steels up to 1000N/mm2
PM-HSSE V3 offers higher edge hardness than standard VA series
Blind holes
Suitable for synchronous tapping in machine operations
Depths up to approx. 3 x d1

Specifications

Designation: VA (for stainless and tough steels)
Material: Powdered Metallurgy - Vanadium Grade High Speed Steel (PM-HSSE V3)
Finish: Titanium Carbonitride (TiCN)
Max Cut Depth: 3xD
Shank Form: Reduced Shank (with square drive)
Helix Angle: R50
X: als
Type: Spiral Flute
Standard: DIN374
Thread Form: ISO Metric Fine (MF)
Nut Tolerance: 6HX
Lead: Form C / 3 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Steel - Corrosion resistant & cast - Ferritic / Martensitic: Annealed
Stainless Steel - Austenitic: Age Hardened
Stainless Steel Duplex
Stainless Steel - Precipitation Hardening
High temperature alloys - Fe based: Annealed
High temperature alloys - Ni / Co based: Annealed

Specifications +

Designation: VA (for stainless and tough steels)
Material: Powdered Metallurgy - Vanadium Grade High Speed Steel (PM-HSSE V3)
Finish: Titanium Carbonitride (TiCN)
Max Cut Depth: 3xD
Shank Form: Reduced Shank (with square drive)
Helix Angle: R50
X: als
Type: Spiral Flute
Standard: DIN374
Thread Form: ISO Metric Fine (MF)
Nut Tolerance: 6HX
Lead: Form C / 3 x P

Application +

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Steel - Corrosion resistant & cast - Ferritic / Martensitic: Annealed
Stainless Steel - Austenitic: Age Hardened
Stainless Steel Duplex
Stainless Steel - Precipitation Hardening
High temperature alloys - Fe based: Annealed
High temperature alloys - Ni / Co based: Annealed

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Sutton T252 Metric Fine Spiral Flute Tap - R50 VA PM - HSSE V3 TiCN

SKU: A0013931

$154.68

Inc. GST

Buy It Now

Available

The Sutton T252 Metric Fine Spiral Flute Tap by Sutton Tools is a Spiral Flute with Titanium Carbonitride TiCN finish. It provides a pitch of 0.75 mm and is suitable for Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered.
