Description
Description

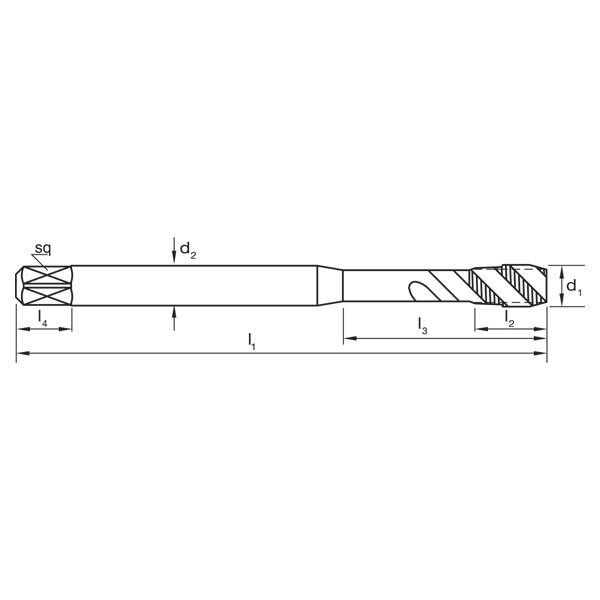

Dimensions
- d1 (mm): 0.112
- d2 (mm): 3.5
- l1 (mm): 56
- l2 (mm): 5
- l3 (mm): 18
- l4 (mm): 6
- Square Size (mm): 2.7
- z: 2
- Drill Size (mm): 2.3 (drill)
- TPI: 40 (TPI)
Features
- General purpose use, materials up to approx. 1000 N/mm2
- Blind holes
- Suitable for machine operations
- Depths up to approx. 2.5 x d1
Specifications
- Designation: VA (for stainless and tough steels)
- Material: Premium Grade High Speed Steel (HSSE-V3)
- Finish: Steam Oxide (Blue)
- Max Cut Depth: 3xD
- Shank Form: Reinforced Shank (with square drive)
- Helix Angle: R45
- X: als
- Type: Spiral Flute
- Standard: DIN2184-1
- Thread Form: UNC
- Nut Tolerance: 2B
- Lead: Form C / 3 x P
Applications
- Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
- Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
- Stainless Steel - Austenitic: Age Hardened
- Stainless Steel - Duplex
Specifications
Specifications
Dimensions
- d1 (mm): 0.112
- d2 (mm): 3.5
- l1 (mm): 56
- l2 (mm): 5
- l3 (mm): 18
- l4 (mm): 6
- Square Size (mm): 2.7
- z: 2
- Drill Size (mm): 2.3 (drill)
- TPI: 40 (TPI)
Specifications
- Designation: VA (for stainless and tough steels)
- Material: Premium Grade High Speed Steel (HSSE-V3)
- Finish: Steam Oxide (Blue)
- Max Cut Depth: 3xD
- Shank Form: Reinforced Shank (with square drive)
- Helix Angle: R45
- X: als
- Type: Spiral Flute
- Standard: DIN2184-1
- Thread Form: UNC
- Nut Tolerance: 2B
- Lead: Form C / 3 x P
Applications
Applications
Applications
- Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
- Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
- Stainless Steel - Austenitic: Age Hardened
- Stainless Steel - Duplex
Features & Benefits
Features & Benefits
Features
- General purpose use, materials up to approx. 1000 N/mm2
- Blind holes
- Suitable for machine operations
- Depths up to approx. 2.5 x d1
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

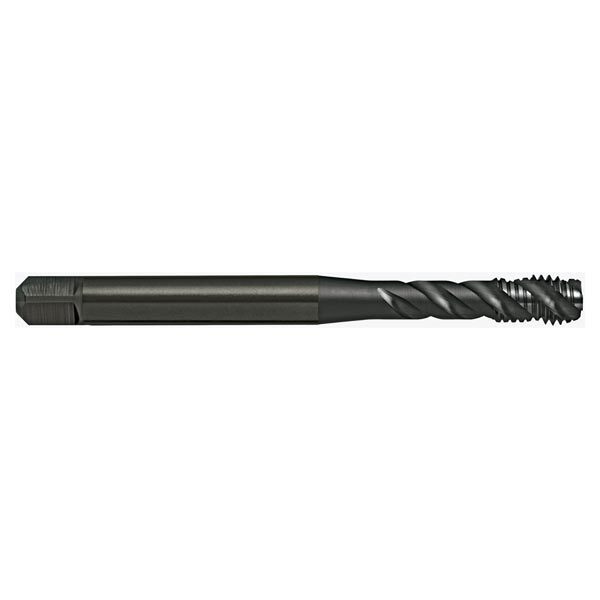

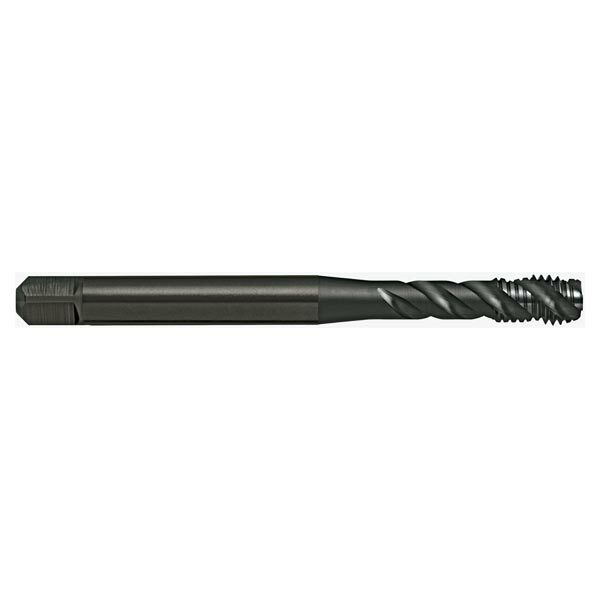

Sutton T261 UNC Spiral Flute Tap - R45 VADH - Premium HSS Blue
Sutton T261 UNC Spiral Flute Tap - R45 VADH - Premium HSS Blue
SKU: A0014018
- Wide Range
- Reliable Services
- Proven Trust
Available
The Sutton T261 UNC Spiral Flute Tap by Sutton Tools is a 0 with Premium Grade High Speed Steel (HSSE-V3). It provides Drill Size 2.3 mm (drill) and is suitable for Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed.
