Sutton T262 UNC Spiral Flute Tap - R45 VADH - Premium HSS TiCN1

Sutton T262 UNC Spiral Flute Tap - R45 VADH - Premium HSS TiCN2

Sutton T2620218 UNC 2 x 56 Spiral Flute Tap - R45 VADH - HSSE V3 TiCN

Sutton T2620284 UNC 4 x 40 Spiral Flute Tap - R45 VADH - HSSE V3 TiCN

Sutton T2620351 UNC 6 x 32 Spiral Flute Tap - R45 VADH - HSSE V3 TiCN

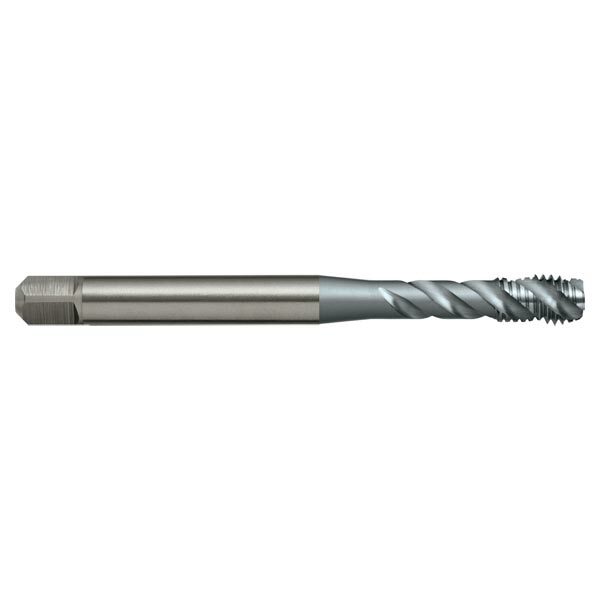

Sutton T2620417 UNC 8-32 Spiral Flute Tap - R45 VADH - HSSE V3 TiCN

Sutton T2620483 UNC 10-24 Spiral Flute Tap - R45 VADH - HSSE V3 TiCN

Sutton T2620635 UNC 1/4 x 20 Spiral Flute Tap - R45 VADH - HSSE V3 TiCN

Sutton T2620794 UNC 5/16 x 18 Spiral Flute Tap - R45 VADH - HSSE V3 TiCN

Sutton T2620953 UNC 3/8 x 16 Spiral Flute Tap - R45 VADH - HSSE V3 TiCN

Sutton T2621111 UNC 7/16 x 14 Spiral Flute Tap - R45 VADH - HSSE V3 TiCN

Sutton T2621270 UNC 1/2 x 13 Spiral Flute Tap - R45 VADH - HSSE V3 TiCN

Sutton T2621588 UNC 5/8 x 11 Spiral Flute Tap - R45 VADH - HSSE V3 TiCN

Sutton T2621905 UNC 3/4 x 10 Spiral Flute Tap - R45 VADH - HSSE V3 TiCN

Sutton T2622223 UNC 7/8 x 9 Spiral Flute Tap - R45 VADH - HSSE V3 TiCN

Sutton T2622540 UNC 1 x 8 Spiral Flute Tap - R45 VADH - HSSE V3 TiCN

Description +

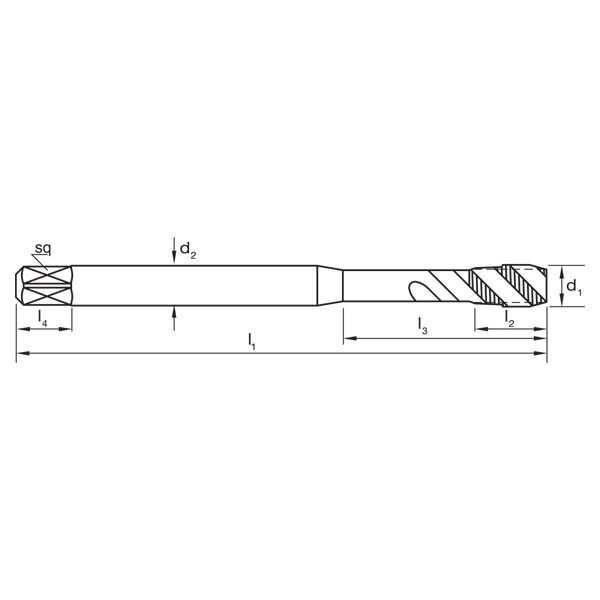

Dimensions

d1 (mm): 2.1844
d2 (mm): 2.8
l1 (mm): 45
l2 (mm): 9
l3 (mm): 12
l4 (mm): 5
Square Size (mm): 2.1
z: 2
Drill Size (mm): 1.85 (drill)
TPI: 56 (TPI)

Features

General purpose use, materials up to approx. 1000 N/mm2
Blind holes
Suitable for machine operations
Depths up to approx. 2.5 x d1

Specifications

Designation: VA (for stainless and tough steels)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Titanium Carbonitride (TiCN)
Max Cut Depth: 3xD
Shank Form: Reinforced Shank (with square drive)
Helix Angle: R45
X: als
Type: Spiral Flute
Standard: DIN2184-1
Thread Form: UNC
Nut Tolerance: 2B
Lead: Form C / 3 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Corrosion resistant & cast - Ferritic / Martensitic: Annealed
Stainless Steel - Austenitic: Age Hardened
Stainless Steel – Duplex
Stainless Steel - Precipitation Hardening
High temperature alloys - Fe based: Annealed

Specifications +

Dimensions

d1 (mm): 2.1844
d2 (mm): 2.8
l1 (mm): 45
l2 (mm): 9
l3 (mm): 12
l4 (mm): 5
Square Size (mm): 2.1
z: 2
Drill Size (mm): 1.85 (drill)
TPI: 56 (TPI)

Specifications

Designation: VA (for stainless and tough steels)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Titanium Carbonitride (TiCN)
Max Cut Depth: 3xD
Shank Form: Reinforced Shank (with square drive)
Helix Angle: R45
X: als
Type: Spiral Flute
Standard: DIN2184-1
Thread Form: UNC
Nut Tolerance: 2B
Lead: Form C / 3 x P

Application +

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Corrosion resistant & cast - Ferritic / Martensitic: Annealed
Stainless Steel - Austenitic: Age Hardened
Stainless Steel – Duplex
Stainless Steel - Precipitation Hardening
High temperature alloys - Fe based: Annealed

Features & Benefits +

Features

General purpose use, materials up to approx. 1000 N/mm2
Blind holes
Suitable for machine operations
Depths up to approx. 2.5 x d1

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Sutton T262 UNC Spiral Flute Tap - R45 VADH - Premium HSS TiCN

SKU: A0014032

$383.67

Inc. GST

Buy It Now

Available

The Sutton T262 UNC Spiral Flute Tap by Sutton Tools is a 0 with Titanium Carbonitride TiCN finish. It offers 14 TPI and is suitable for high temperature alloys Fe based annealed.
