Description
Description

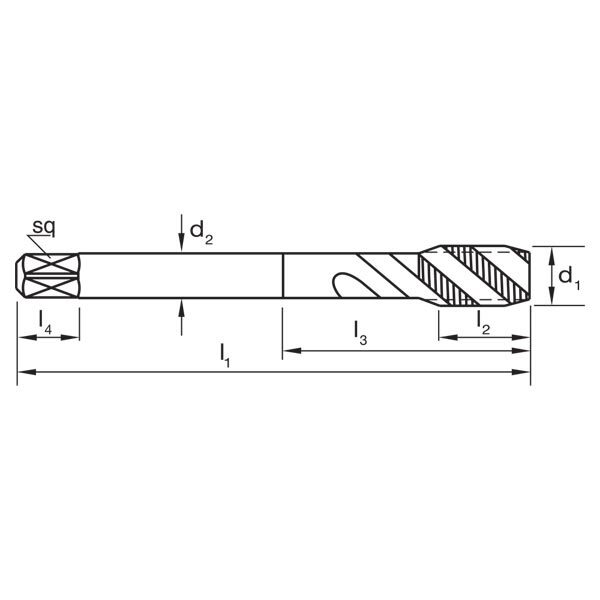

Dimensions
- d1 (mm): 1.125
- d2 (mm): 22
- l1 (mm): 180
- l2 (mm): 30
- l4 (mm): 21
- Square Size (mm): 18
- z: 4
- Drill Size (mm): 25.5 (drill)
- TPI: 8 (TPI)
Features
- Use in stainless steels and high strength steels up to 1000N/mm2
- Blind holes
- Suitable for synchronous tapping in machine operations
- Depths up to approx. 2.5 x d1
Specifications
- Designation: VA (for stainless and tough steels)
- Material: Premium Grade High Speed Steel (HSSE-V3)
- Finish: Titanium Carbonitride (TiCN)
- Max Cut Depth: 2.5xD
- Shank Form: Reduced Shank (with square drive)
- Helix Angle: R40
- X: als
- Type: Spiral Flute
- Standard: DIN2184-1
- Thread Form: Unified National Form 60° (8UN)
- Nut Tolerance: 2B
- Lead: Form C / 3 x P
Applications
- Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
- Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
- Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
- Steel - Low alloy & cast < 5% of alloying elements: Annealed
- Steel - Corrosion resistant & cast - Ferritic / Martensitic: Annealed
- Stainless Steel - Austenitic: Age Hardened
- Stainless Steel – Duplex
- Stainless Steel - Precipitation Hardening
Specifications
Specifications
Dimensions
- d1 (mm): 1.125
- d2 (mm): 22
- l1 (mm): 180
- l2 (mm): 30
- l4 (mm): 21
- Square Size (mm): 18
- z: 4
- Drill Size (mm): 25.5 (drill)
- TPI: 8 (TPI)
Specifications
- Designation: VA (for stainless and tough steels)
- Material: Premium Grade High Speed Steel (HSSE-V3)
- Finish: Titanium Carbonitride (TiCN)
- Max Cut Depth: 2.5xD
- Shank Form: Reduced Shank (with square drive)
- Helix Angle: R40
- X: als
- Type: Spiral Flute
- Standard: DIN2184-1
- Thread Form: Unified National Form 60° (8UN)
- Nut Tolerance: 2B
- Lead: Form C / 3 x P
Applications
Applications
Applications
- Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
- Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
- Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
- Steel - Low alloy & cast < 5% of alloying elements: Annealed
- Steel - Corrosion resistant & cast - Ferritic / Martensitic: Annealed
- Stainless Steel - Austenitic: Age Hardened
- Stainless Steel – Duplex
- Stainless Steel - Precipitation Hardening
Features & Benefits
Features & Benefits
Features
- Use in stainless steels and high strength steels up to 1000N/mm2
- Blind holes
- Suitable for synchronous tapping in machine operations
- Depths up to approx. 2.5 x d1
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

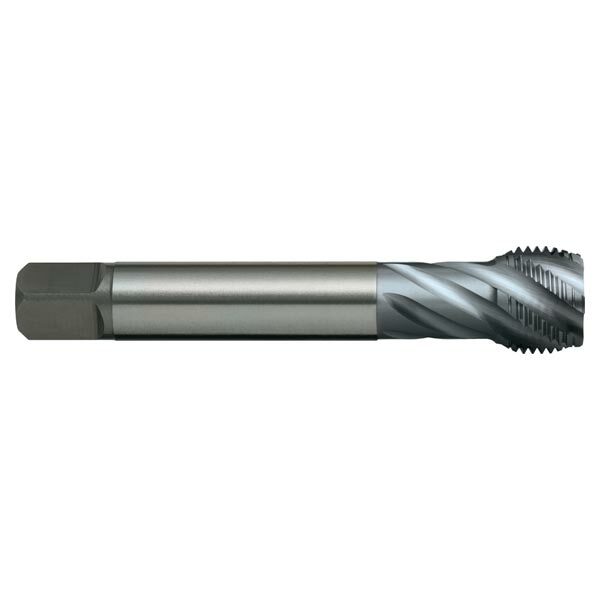

Sutton T264 8UN Spiral Flute Tap - R40 VA - Premium HSS TiCN
Sutton T264 8UN Spiral Flute Tap - R40 VA - Premium HSS TiCN
SKU: A0014041
- Wide Range
- Reliable Services
- Proven Trust
Available
The Sutton T264 8UN Spiral Flute Tap by Sutton Tools is a 0 with Premium Grade High Speed Steel (HSSE-V3) material. It provides a drill size of 25.5 (drill) and is suitable for Stainless Steel - Precipitation Hardening.
