Sutton T266 UNC Spiral Flute Tap - R40 NH - Vanadium HSS Blue1

Sutton T266 UNC Spiral Flute Tap - R40 NH - Vanadium HSS Blue2

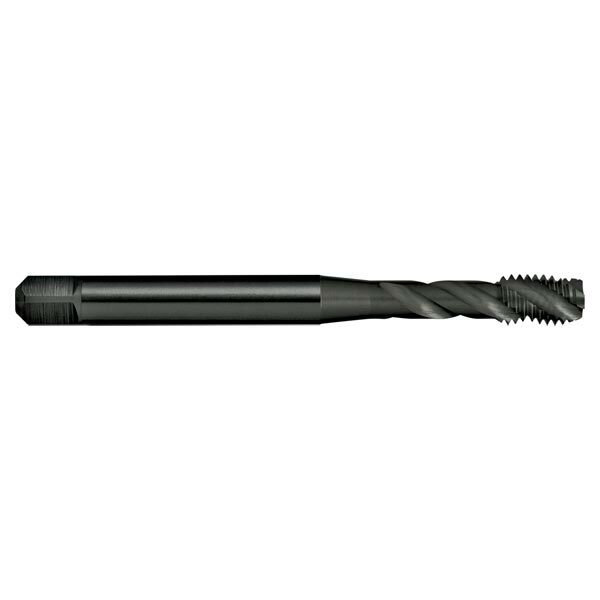

Sutton T2660635 UNC 1/4 x 20 Spiral Flute Tap - R40 NH - HSSE V3 Blue

Sutton T2660794 UNC 5/16 x 18 Spiral Flute Tap - R40 NH - HSSE V3 Blue

Sutton T2660953 UNC 3/8 x 16 Spiral Flute Tap - R40 NH - HSSE V3 Blue

Sutton T2661270 UNC 1/2 x 13 Spiral Flute Tap - R40 NH - HSSE V3 Blue

Sutton T2661588 UNC 5/8 x 11 Spiral Flute Tap - R40 NH - HSSE V3 Blue

Sutton T2661905 UNC 3/4 x 10 Spiral Flute Tap - R40 NH - HSSE V3 Blue

Sutton T2662540 UNC 1-8 Spiral Flute Tap - R40 NH - HSSE V3 Blue

Description +

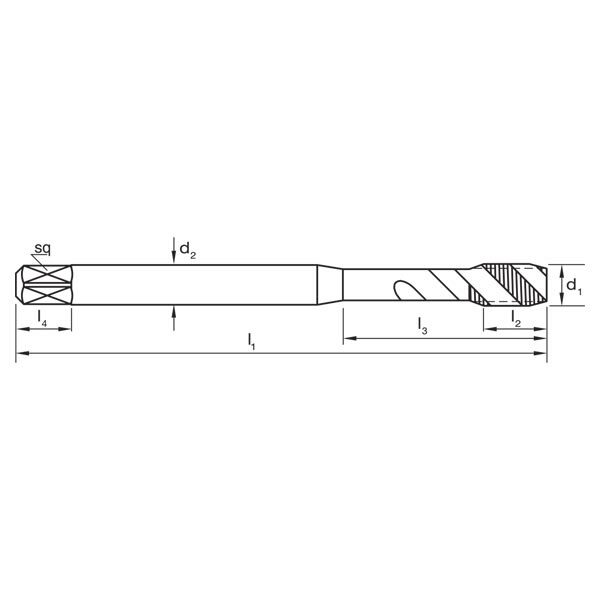

Dimensions

d1 (mm): 6.35
d2 (mm): 7
l1 (mm): 80
l2 (mm): 10
l3 (mm): 30
l4 (mm): 8
Square Size (mm): 5.5
z: 3
Drill Size (mm): 5.1 (drill)
TPI: 20 (TPI)

Features

Use in harder short chipping materials up to 42 HRc
Blind holes
Suitable for synchronous tapping in machine operations
Depths up to approx. 2.5 x d1

Specifications

Designation: NH
Material: Powdered Metallurgy - Vanadium Grade High Speed Steel (PM-HSSE V3)
Finish: Steam Oxide (Blue)
Max Cut Depth: 2.5xD
Shank Form: Reinforced Shank (with square drive)
Helix Angle: R40
X: als
Type: Spiral Flute
Standard: DIN2184-1
Thread Form: UNC
Nut Tolerance: 2B
Lead: Form C / 3 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered

Specifications +

Dimensions

d1 (mm): 6.35
d2 (mm): 7
l1 (mm): 80
l2 (mm): 10
l3 (mm): 30
l4 (mm): 8
Square Size (mm): 5.5
z: 3
Drill Size (mm): 5.1 (drill)
TPI: 20 (TPI)

Specifications

Designation: NH
Material: Powdered Metallurgy - Vanadium Grade High Speed Steel (PM-HSSE V3)
Finish: Steam Oxide (Blue)
Max Cut Depth: 2.5xD
Shank Form: Reinforced Shank (with square drive)
Helix Angle: R40
X: als
Type: Spiral Flute
Standard: DIN2184-1
Thread Form: UNC
Nut Tolerance: 2B
Lead: Form C / 3 x P

Application +

Applications

Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered

Features & Benefits +

Features

Use in harder short chipping materials up to 42 HRc
Blind holes
Suitable for synchronous tapping in machine operations
Depths up to approx. 2.5 x d1

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Sold out

Sutton T266 UNC Spiral Flute Tap - R40 NH - Vanadium HSS Blue

SKU: A0014066

$279.40

Inc. GST

Buy It Now

Out of stock

The Sutton T266 UNC Spiral Flute Tap by Sutton Tools is a 0 made from Powdered Metallurgy - Vanadium Grade High Speed Steel (PM-HSSE V3). It provides 13 TPI and is suitable for Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered.
