Sutton T275 UNF Spiral Flute Tap - R40 N - Premium HSS 1

Sutton T275 UNF Spiral Flute Tap - R40 N - Premium HSS 2

Sutton T2750284 UNF #4 x 48 Spiral Flute Tap - R40 N - HSSE V3

Sutton T2750318 UNF #5 x 44 Spiral Flute Tap - R40 N - HSSE V3

Sutton T2750351 UNF #6 x 40 Spiral Flute Tap - R40 N - HSSE V3

Sutton T2750417 UNF #8 x 36 Spiral Flute Tap - R40 N - HSSE V3

Sutton T2750483 UNF #10 x 32 Spiral Flute Tap - R40 N - HSSE V3

Sutton T2750549 UNF #12 x 28 Spiral Flute Tap - R40 N - HSSE V3

Sutton T2750635 UNF 1/4 x 28 Spiral Flute Tap - R40 N - HSSE V3

Sutton T2750794 UNF 5/16 x 24 Spiral Flute Tap - R40 N - HSSE V3

Sutton T2750953 UNF 3/8 x 24 Spiral Flute Tap - R40 N - HSSE V3

Sutton T2751111 UNF 7/16 x 20 Spiral Flute Tap - R40 N - HSSE V3

Sutton T2751270 UNF 1/2 x 20 Spiral Flute Tap - R40 N - HSSE V3

Sutton T2751429 UNF 9/16 x 18 Spiral Flute Tap - R40 N - HSSE V3

Sutton T2751588 UNF 5/8 x 18 Spiral Flute Tap - R40 N - HSSE V3

Sutton T2751905 UNF 3/4 x 16 Spiral Flute Tap - R40 N - HSSE V3

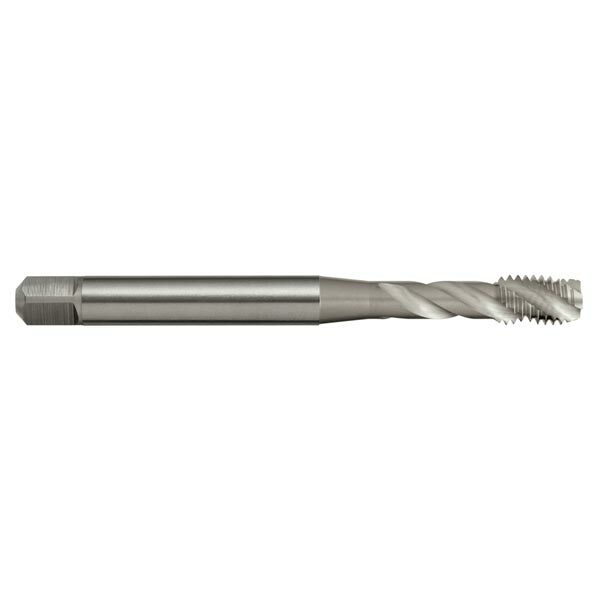

Sutton T2752223 UNF 7/8 x 14 Spiral Flute Tap - R40 N - HSSE V3

Sutton T2752540 UNF #1 x 12 Spiral Flute Tap - R40 N - HSSE V3

Description +

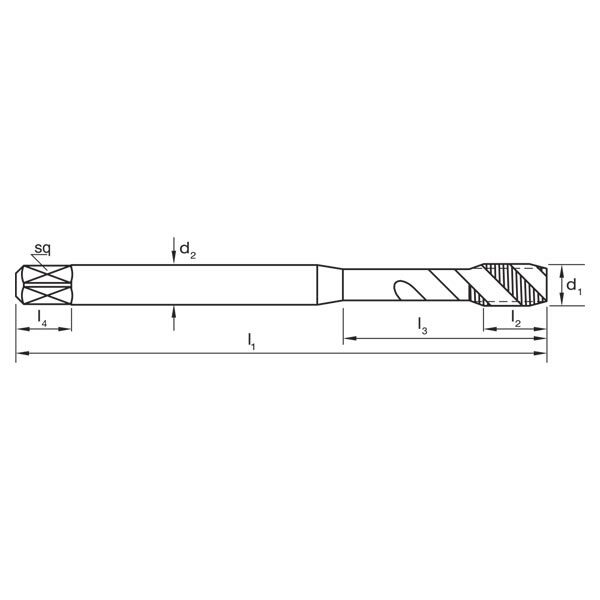

Dimensions

d1 (mm): 0.112
d2 (mm): 3.5
l1 (mm): 56
l2 (mm): 5
l3 (mm): 18
l4 (mm): 6
Square Size (mm): 2.7
z: 2
Drill Size (mm): 2.35 (drill)
TPI: 48 (TPI)

Features

General purpose use, materials up to approx. 1000 N/mm2
Blind holes
Suitable for machine operations
Depths up to approx. 2.5 x d1

Specifications

Designation: N (for normal general purpose type materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Bright
Max Cut Depth: 2.5xD
Shank Form: Reinforced Shank (with square drive)
Helix Angle: R40
X: als
Type: Spiral Flute
Standard: DIN2184-1
Thread Form: UNF
Nut Tolerance: 2B
Lead: Form C / 3 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Aluminum & Magnesium, wrought alloy - Non Heat Treatable
Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened

Specifications +

Dimensions

d1 (mm): 0.112
d2 (mm): 3.5
l1 (mm): 56
l2 (mm): 5
l3 (mm): 18
l4 (mm): 6
Square Size (mm): 2.7
z: 2
Drill Size (mm): 2.35 (drill)
TPI: 48 (TPI)

Specifications

Designation: N (for normal general purpose type materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Bright
Max Cut Depth: 2.5xD
Shank Form: Reinforced Shank (with square drive)
Helix Angle: R40
X: als
Type: Spiral Flute
Standard: DIN2184-1
Thread Form: UNF
Nut Tolerance: 2B
Lead: Form C / 3 x P

Application +

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Aluminum & Magnesium, wrought alloy - Non Heat Treatable
Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened

Features & Benefits +

Features

General purpose use, materials up to approx. 1000 N/mm2
Blind holes
Suitable for machine operations
Depths up to approx. 2.5 x d1

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Sutton T275 UNF Spiral Flute Tap - R40 N - Premium HSS

SKU: A0014106

$284.54

Inc. GST

Buy It Now

Available

The Sutton T275 UNF Spiral Flute Tap by Sutton Tools is a 0 with Premium Grade High Speed Steel. It offers 48 TPI and is suitable for Machining.

FREE SHIPPING OVER $299*
RETURN AND EXCHANGE POLICY

Resources

Sutton-Tools-Taps-Dies-Threading-Catalogue

Sutton-Tools-ISO-Taps-Catalogue

Description +

Dimensions

d1 (mm): 0.112
d2 (mm): 3.5
l1 (mm): 56
l2 (mm): 5
l3 (mm): 18
l4 (mm): 6
Square Size (mm): 2.7
z: 2
Drill Size (mm): 2.35 (drill)
TPI: 48 (TPI)

Features

General purpose use, materials up to approx. 1000 N/mm2
Blind holes
Suitable for machine operations
Depths up to approx. 2.5 x d1

Specifications

Designation: N (for normal general purpose type materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Bright
Max Cut Depth: 2.5xD
Shank Form: Reinforced Shank (with square drive)
Helix Angle: R40
X: als
Type: Spiral Flute
Standard: DIN2184-1
Thread Form: UNF
Nut Tolerance: 2B
Lead: Form C / 3 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Aluminum & Magnesium, wrought alloy - Non Heat Treatable
Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened

Specifications +

Dimensions

d1 (mm): 0.112
d2 (mm): 3.5
l1 (mm): 56
l2 (mm): 5
l3 (mm): 18
l4 (mm): 6
Square Size (mm): 2.7
z: 2
Drill Size (mm): 2.35 (drill)
TPI: 48 (TPI)

Specifications

Designation: N (for normal general purpose type materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Bright
Max Cut Depth: 2.5xD
Shank Form: Reinforced Shank (with square drive)
Helix Angle: R40
X: als
Type: Spiral Flute
Standard: DIN2184-1
Thread Form: UNF
Nut Tolerance: 2B
Lead: Form C / 3 x P

Application +

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Aluminum & Magnesium, wrought alloy - Non Heat Treatable
Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened

Features & Benefits +

Features

General purpose use, materials up to approx. 1000 N/mm2
Blind holes
Suitable for machine operations
Depths up to approx. 2.5 x d1
