Sutton T300 Metric Fine Straight Flute Tap - Premium HSS Ni/Blue1

Sutton T300 Metric Fine Straight Flute Tap - Premium HSS Ni/Blue2

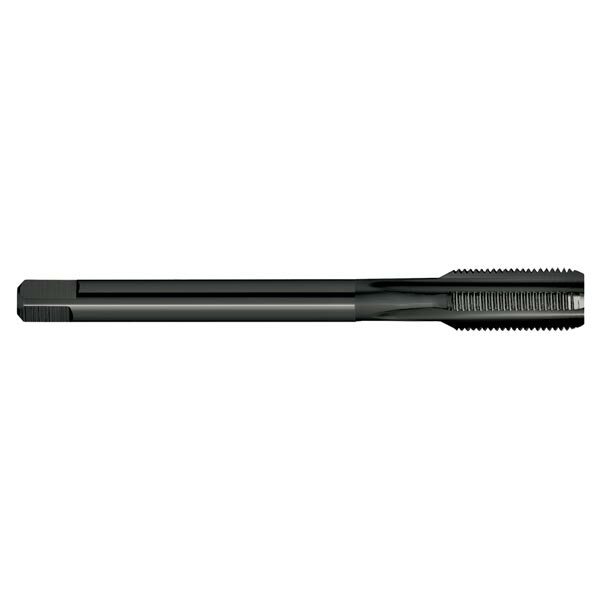

Sutton T3000403 Metric MF4 x 0.5 Straight Flute Tap - HSSE V3 Ni/Blue

Sutton T3000503 Metric MF5 x 0.5 Straight Flute Tap - HSSE V3 Ni/Blue

Sutton T3000604 Metric MF6 x 0.75 Straight Flute Tap - HSSE V3 Ni/Blue

Sutton T3000805 Metric MF8 x 1 Straight Flute Tap - HSSE V3 Ni/Blue

Sutton T3001005 Metric MF10 x 1 Straight Flute Tap - HSSE V3 Ni/Blue

Sutton T3001006 MF10 x 1.25 Straight Flute Tap - HSSE V3 Ni/Blue

Sutton T3001206 MF12 x 1.25 Straight Flute Tap - HSSE V3 Ni/Blue

Sutton T3001207 Metric MF12 x 1.5 Straight Flute Tap - HSSE V3 Ni/Blue

Sutton T3001406 MF14 x 1.25 Straight Flute Tap - HSSE V3 Ni/Blue

Sutton T3001407 Metric MF14 x 1.5 Straight Flute Tap - HSSE V3 Ni/Blue

Sutton T3001607 Metric MF16 x 1.5 Straight Flute Tap - HSSE V3 Ni/Blue

Sutton T3001807 Metric MF18 x 1.5 Straight Flute Tap - HSSE V3 Ni/Blue

Sutton T3002007 Metric MF20 x 1.5 Straight Flute Tap - HSSE V3 Ni/Blue

Description +

Features

HSSE V3, for use in grey cast iron (GG)
VHM, for use in Al >10% Si & cast iron (GGG)
Through & blind holes
Depths up to 3 x d1

Specifications

Designation: GG (for cast iron)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Plasma Nitride (Ni) + Steam Oxide (Blue)
Max Cut Depth: 3xD
Shank Form: Reduced Shank (with square drive)
X: als
Type: Straight Flute
Standard: DIN374
Thread Form: ISO Metric Fine (MF)
Nut Tolerance: 6HX
Lead: Form C / 3 x P

Applications

Cast Iron, Grey (GG) - Ferritic / Pearlitic
Cast Iron, Grey (GG) Pearlitic
Cast Iron, Nodular (GGG) Ferritic
Cast Iron, Nodular (GGG) - Pearlitic

Specifications +

Designation: GG (for cast iron)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Plasma Nitride (Ni) + Steam Oxide (Blue)
Max Cut Depth: 3xD
Shank Form: Reduced Shank (with square drive)
X: als
Type: Straight Flute
Standard: DIN374
Thread Form: ISO Metric Fine (MF)
Nut Tolerance: 6HX
Lead: Form C / 3 x P

Application +

Cast Iron, Grey (GG) - Ferritic / Pearlitic
Cast Iron, Grey (GG) Pearlitic
Cast Iron, Nodular (GGG) Ferritic
Cast Iron, Nodular (GGG) - Pearlitic

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Sutton T300 Metric Fine Straight Flute Tap - Premium HSS Ni/Blue

SKU: A0014334

$47.07

Inc. GST

Buy It Now

Available

The Sutton T300 Metric Fine Straight Flute Tap by Sutton Tools is a Straight Flute tool in Premium Grade High Speed Steel (HSSE-V3). It provides the Max Cut Depth 3xD and is for Cast Iron, Grey (GG) - Ferritic / Pearlitic.
