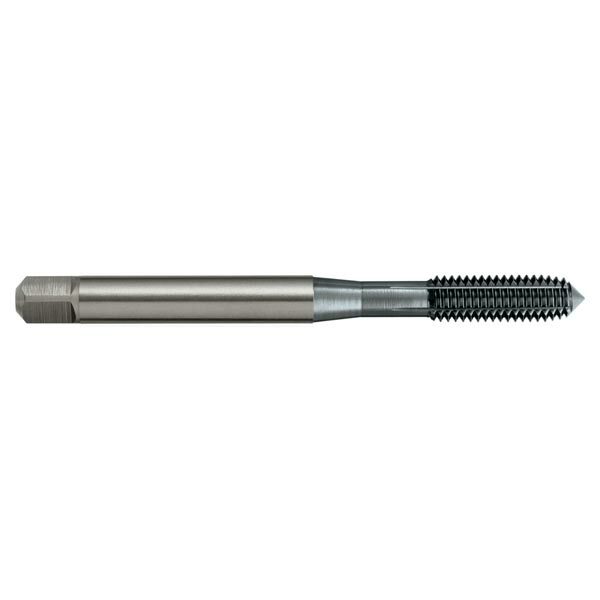

Sutton T3210600 Metric M6 x 1 Thread Forming Tap - HSSE V3 TiCN
Sutton T3210800 Metric M8 x 1.25 Thread Forming Tap - HSSE V3 TiCN
Sutton T3211000 Metric M10 x 1.5 Thread Forming Tap - HSSE V3 TiCN
Sutton T321 Metric Thread Forming Tap - Premium HSS TiCN1
Sutton T321 Metric Thread Forming Tap - Premium HSS TiCN2
Sutton T3210300 Metric M3 x 0.5 Thread Forming Tap - HSSE V3 TiCN
Sutton T3210350 Metric M3.5 x 0.6 Thread Forming Tap - HSSE V3 TiCN
Sutton T3210400 Metric M4 x 0.7 Thread Forming Tap - HSSE V3 TiCN
Sutton T3210500 Metric M5 x 0.8 Thread Forming Tap - HSSE V3 TiCN
Sutton T3210600 Metric M6 x 1 Thread Forming Tap - HSSE V3 TiCN
Sutton T3210800 Metric M8 x 1.25 Thread Forming Tap - HSSE V3 TiCN
Sutton T3211000 Metric M10 x 1.5 Thread Forming Tap - HSSE V3 TiCN

Sutton T321 Metric Thread Forming Tap - Premium HSS TiCN

Sutton T321 Metric Thread Forming Tap - Premium HSS TiCN

SKU: A0014497

$78.29
$78.29
Inc. GST
Buy It Now

Available

The Sutton T321 Metric Thread Forming Tap by Sutton Tools is a 0 with TiCN finish. It provides Drill Size 9.3 (drill) and is suitable for through or blind holes.

Resources

File icon
Sutton-Tools-Taps-Dies-Threading-Catalogue
File icon
Sutton-Tools-ISO-Taps-Catalogue

Features

  • Suitable for materials with >10% elongation
  • Through or blind holes
  • Depths up to 3 x d1

Specifications

  • Designation: N (for normal general purpose type materials)
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Titanium Carbonitride (TiCN)
  • Max Cut Depth: 3xD
  • Shank Form: Reinforced Shank (with square drive)
  • X: als
  • Type: Fluteless - Multi Coolant Groove
  • Standard: DIN2174
  • Thread Form: ISO Metric Coarse (M)
  • Nut Tolerance: 6HX
  • Lead: Form D / 4 x P

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
  • Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Annealed
  • Stainless Steel - Austenitic: Age Hardened
  • Aluminum & Magnesium, wrought alloy - Non Heat Treatable
  • Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened
  • Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%

Specifications

  • Designation: N (for normal general purpose type materials)
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Titanium Carbonitride (TiCN)
  • Max Cut Depth: 3xD
  • Shank Form: Reinforced Shank (with square drive)
  • X: als
  • Type: Fluteless - Multi Coolant Groove
  • Standard: DIN2174
  • Thread Form: ISO Metric Coarse (M)
  • Nut Tolerance: 6HX
  • Lead: Form D / 4 x P

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
  • Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Annealed
  • Stainless Steel - Austenitic: Age Hardened
  • Aluminum & Magnesium, wrought alloy - Non Heat Treatable
  • Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened
  • Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%

Features

  • Suitable for materials with >10% elongation
  • Through or blind holes
  • Depths up to 3 x d1
