Sutton T324 Metric Thread Forming Tap - Premium HSS TiCN1

Sutton T324 Metric Thread Forming Tap - Premium HSS TiCN2

Sutton T3241200 Metric M12 x 1.75 Thread Forming Tap - HSSE V3 TiCN

Sutton T3241400 Metric M14 x 2 Thread Forming Tap - HSSE V3 TiCN

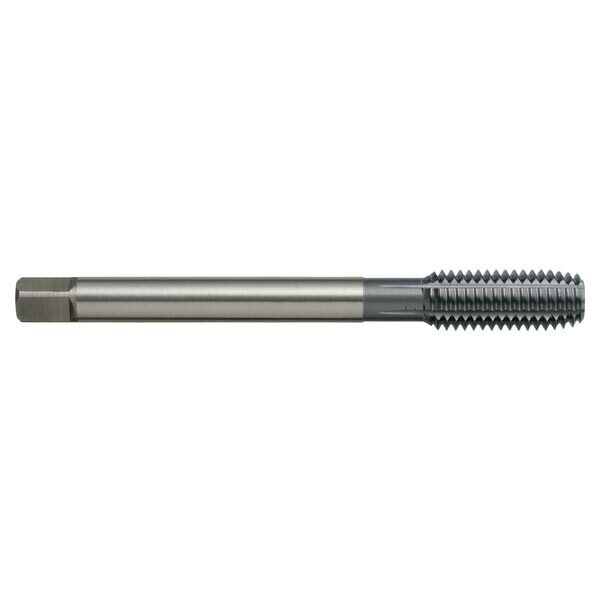

Sutton T3241600 Metric M16 x 2 Thread Forming Tap - HSSE V3 TiCN

Description +

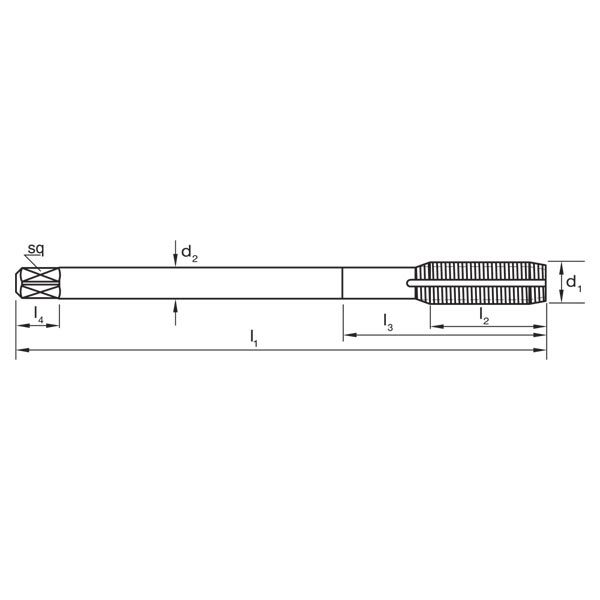

Dimensions

d1: M12
d2 (mm): 9
l1 (mm): 110
l2 (mm): 29
l4 (mm): 10
Square Size (mm): 7
Drill Size (mm): 11.2 (drill)
Pitch (mm): 1.75 (pitch)

Features

Suitable for materials with >10% elongation
Through or blind holes
Depths up to 3 x d1

Specifications

Designation: N (for normal general purpose type materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Titanium Carbonitride (TiCN)
Max Cut Depth: 3xD
Shank Form: Reduced Shank (with square drive)
X: als
Type: Fluteless - Multi Coolant Groove
Standard: DIN2174
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: 6GX
Lead: Form C / 3 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Stainless Steel - Austenitic: Age Hardened
Aluminum & Magnesium, wrought alloy - Non Heat Treatable
Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened
Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%

Specifications +

Dimensions

d1: M12
d2 (mm): 9
l1 (mm): 110
l2 (mm): 29
l4 (mm): 10
Square Size (mm): 7
Drill Size (mm): 11.2 (drill)
Pitch (mm): 1.75 (pitch)

Specifications

Designation: N (for normal general purpose type materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Titanium Carbonitride (TiCN)
Max Cut Depth: 3xD
Shank Form: Reduced Shank (with square drive)
X: als
Type: Fluteless - Multi Coolant Groove
Standard: DIN2174
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: 6GX
Lead: Form C / 3 x P

Application +

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Stainless Steel - Austenitic: Age Hardened
Aluminum & Magnesium, wrought alloy - Non Heat Treatable
Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened
Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%

Features & Benefits +

Features

Suitable for materials with >10% elongation
Through or blind holes
Depths up to 3 x d1

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Sold out

Sutton T324 Metric Thread Forming Tap - Premium HSS TiCN

SKU: A0014514

$174.08

Inc. GST

Buy It Now

Out of stock

The Sutton T324 Metric Thread Forming Tap by Sutton Tools is a 0 tool in Premium Grade High Speed Steel (HSSE-V3). It provides 110 mm and is suitable for Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered.
