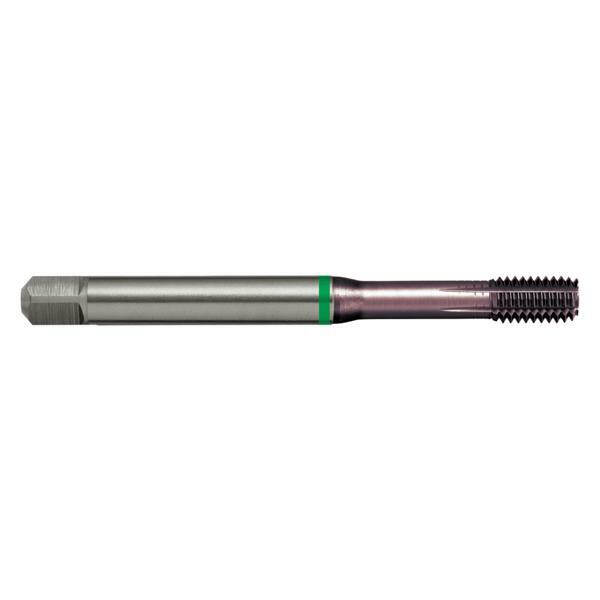

Sutton T3250300 M3 x 0.5 Thread Forming Tap - 11% Cobalt Steel TiAIN
Sutton T3250400 M4 x 0.7 Thread Forming Tap - 11% Cobalt Steel TiAIN
Sutton T3250500 M5 x 0.8 Thread Forming Tap - 11% Cobalt Steel TiAIN
Sutton T3250600 Metric M6 x 1 Thread Forming Tap - 11% Cobalt Steel TiAIN
Sutton T3250800 M8 x 1.25 Thread Forming Tap - 11% Cobalt Steel TiAIN
Sutton T3251000 M10 x 1.5 Thread Forming Tap - 11% Cobalt Steel TiAIN

Sutton T325 Metric Thread Forming Tap - 11% Cobalt Steel TiAIN

Sutton T325 Metric Thread Forming Tap - 11% Cobalt Steel TiAIN

SKU: A0014517

$74.97
$74.97
Inc. GST
Buy It Now

Available

The Sutton T325 Metric Thread Forming Tap by Sutton Tools is a 0 precision tool with 11% Cobalt Steel material. It offers l1 (mm): 100 and is suitable for Steel - Non-alloy, cast & free cutting (~ 0.15 %C/0.45 %C): Annealed.

Resources

File icon
Sutton-Tools-Taps-Dies-Threading-Catalogue
File icon
Sutton-Tools-ISO-Taps-Catalogue

Dimensions

  • d1: M2
  • d2 (mm): 2.8
  • l1 (mm): 45
  • l2 (mm): 6
  • l4 (mm): 5
  • Square Size (mm): 2.1
  • Drill Size (mm): 1.8 (drill)
  • Pitch (mm): 0.4 (pitch)

Features

  • SPM for superior performance
  • Application specific geometry
  • Suitable for materials with >10% elongation
  • Through or blind holes
  • Depths up to 3 x d1

Specifications

  • Designation: UNI (for normal general purpose type materials)
  • Material: Powdered Metallurgy- High Speed Steel Cobalt (SPM-HSS Co11%)
  • Finish: Titanium Aluminium Nitride (TiAIN)
  • Max Cut Depth: 3xD
  • Shank Form: Reinforced Shank (with square drive)
  • X: als
  • Type: Fluteless - Multi Coolant Groove
  • Standard: DIN2174
  • Thread Form: ISO Metric Coarse (M)
  • Nut Tolerance: 6HX
  • Lead: Form C / 3 x P

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
  • Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Annealed
  • Steel - High alloy, cast & tool: Annealed
  • Stainless Steel - Austenitic: Age Hardened
  • Stainless Steel – Duplex
  • Aluminum & Magnesium, wrought alloy - Non Heat Treatable
  • Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened
  • Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable
  • Aluminum & Magnesium, cast alloy ≤12% Si - Heat Treatable: Age Hardened
  • Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%

Dimensions

  • d1: M2
  • d2 (mm): 2.8
  • l1 (mm): 45
  • l2 (mm): 6
  • l4 (mm): 5
  • Square Size (mm): 2.1
  • Drill Size (mm): 1.8 (drill)
  • Pitch (mm): 0.4 (pitch)

Specifications

  • Designation: UNI (for normal general purpose type materials)
  • Material: Powdered Metallurgy- High Speed Steel Cobalt (SPM-HSS Co11%)
  • Finish: Titanium Aluminium Nitride (TiAIN)
  • Max Cut Depth: 3xD
  • Shank Form: Reinforced Shank (with square drive)
  • X: als
  • Type: Fluteless - Multi Coolant Groove
  • Standard: DIN2174
  • Thread Form: ISO Metric Coarse (M)
  • Nut Tolerance: 6HX
  • Lead: Form C / 3 x P

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
  • Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Annealed
  • Steel - High alloy, cast & tool: Annealed
  • Stainless Steel - Austenitic: Age Hardened
  • Stainless Steel – Duplex
  • Aluminum & Magnesium, wrought alloy - Non Heat Treatable
  • Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened
  • Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable
  • Aluminum & Magnesium, cast alloy ≤12% Si - Heat Treatable: Age Hardened
  • Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%

Features

  • SPM for superior performance
  • Application specific geometry
  • Suitable for materials with >10% elongation
  • Through or blind holes
  • Depths up to 3 x d1
