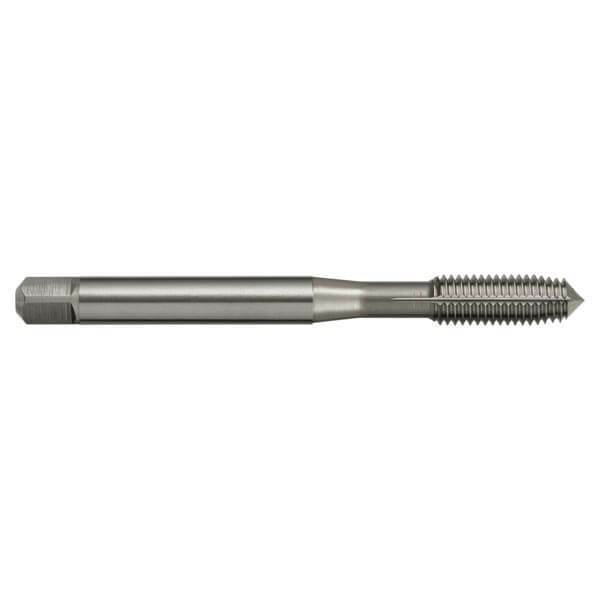

Sutton T3291000 M10 x 1.5 Thread Forming Tap - 11% Cobalt Steel TiAIN
Sutton T329 Metric Thread Forming Tap - 11% Cobalt Steel TiAIN1
Sutton T329 Metric Thread Forming Tap - 11% Cobalt Steel TiAIN2
Sutton T3290300 M3 x 0.5 Thread Forming Tap - 11% Cobalt Steel TiAIN
Sutton T3290350 M3.5 x 0.6 Thread Forming Tap - 11% Cobalt Steel TiAIN
Sutton T3290400 M4 x 0.7 Thread Forming Tap - 11% Cobalt Steel TiAIN
Sutton T3290500 M5 x 0.8 Thread Forming Tap - 11% Cobalt Steel TiAIN
Sutton T3290600 Metric M6 x 1 Thread Forming Tap - 11% Cobalt Steel TiAIN
Sutton T3290800 M8 x 1.25 Thread Forming Tap - 11% Cobalt Steel TiAIN
Sutton T3291000 M10 x 1.5 Thread Forming Tap - 11% Cobalt Steel TiAIN

Sutton T329 Metric Thread Forming Tap - 11% Cobalt Steel TiAIN

Sutton T329 Metric Thread Forming Tap - 11% Cobalt Steel TiAIN

SKU: A0014535

$78.29
$78.29
Inc. GST
Buy It Now

Available

The Sutton T329 Metric Thread Forming Tap by Sutton Tools is a 0 with Titanium Aluminium Nitride finish. It provides a Drill Size 9.3 mm and is suitable for Aluminum & Magnesium, cast alloy ≤12% Si - Heat Treatable: Age Hardened.

Resources

File icon
Sutton-Tools-Taps-Dies-Threading-Catalogue
File icon
Sutton-Tools-ISO-Taps-Catalogue

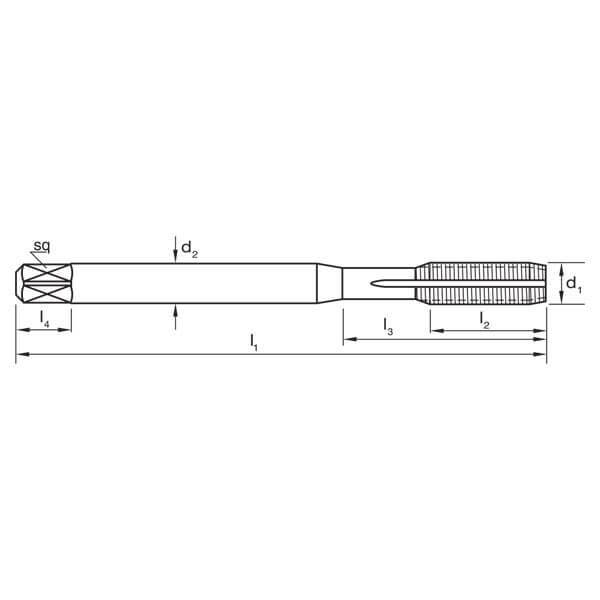

Dimensions

  • d1: M3
  • d2 (mm): 3.5
  • l1 (mm): 56
  • l2 (mm): 11
  • l3 (mm): 18
  • l4 (mm): 6
  • Square Size: 2.7
  • Drill Size (mm): 2.8 (drill)
  • Pitch (mm): 0.5

Features

  • Suitable for materials with >10% elongation
  • Through or blind holes
  • Depths up to 3 x d

Specifications

  • Designation: Cu (for copper materials)
  • Material: Powdered Metallurgy- High Speed Steel Cobalt (SPM-HSS Co11%)
  • Finish: Titanium Aluminium Nitride (TiAIN)
  • Max Cut Depth: 3xD
  • Shank Form: Reinforced Shank (with square drive)
  • X: als
  • Type: Fluteless - Multi Coolant Groove
  • Standard: DIN2174
  • Thread Form: ISO Metric Coarse (M)
  • Nut Tolerance: 6HX
  • Lead: Form C / 3 x P

Applications

  • Aluminum & Magnesium, wrought alloy - Non Heat Treatable
  • Aluminum & Magnesium, wrought alloy - Heat Treatable
  • Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable
  • Aluminum & Magnesium, cast alloy ≤12% Si - Heat Treatable: Age Hardened
  • Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%
  • Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn)

Dimensions

  • d1: M3
  • d2 (mm): 3.5
  • l1 (mm): 56
  • l2 (mm): 11
  • l3 (mm): 18
  • l4 (mm): 6
  • Square Size: 2.7
  • Drill Size (mm): 2.8 (drill)
  • Pitch (mm): 0.5

Specifications

  • Designation: Cu (for copper materials)
  • Material: Powdered Metallurgy- High Speed Steel Cobalt (SPM-HSS Co11%)
  • Finish: Titanium Aluminium Nitride (TiAIN)
  • Max Cut Depth: 3xD
  • Shank Form: Reinforced Shank (with square drive)
  • X: als
  • Type: Fluteless - Multi Coolant Groove
  • Standard: DIN2174
  • Thread Form: ISO Metric Coarse (M)
  • Nut Tolerance: 6HX
  • Lead: Form C / 3 x P

Applications

  • Aluminum & Magnesium, wrought alloy - Non Heat Treatable
  • Aluminum & Magnesium, wrought alloy - Heat Treatable
  • Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable
  • Aluminum & Magnesium, cast alloy ≤12% Si - Heat Treatable: Age Hardened
  • Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%
  • Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn)

Features

  • Suitable for materials with >10% elongation
  • Through or blind holes
  • Depths up to 3 x d
