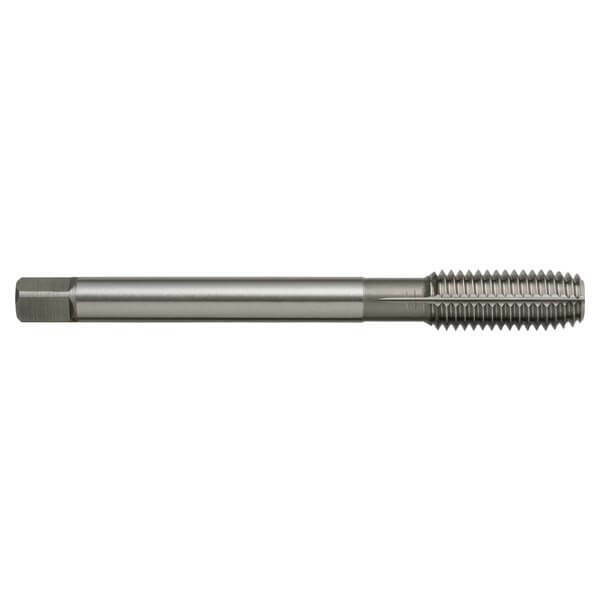

Sutton T3301200 Tap M 12 x 1.75 6HX Forming Cu DIN2174 C HSSE CrN CrN HSSE V31

Sutton T3301200 Tap M 12 x 1.75 6HX Forming Cu DIN2174 C HSSE CrN CrN HSSE V32

Specifications +

Dimensions

d1: M12
d2 (mm): 9
l1 (mm): 110
l2 (mm): 29
l4 (mm): 10
Square Size (mm): 7
Drill Size (mm): 11.2 (drill)
Pitch (mm): 1.75 (pitch)

Specifications

Designation: Cu (for copper materials)
Material: Powdered Metallurgy- High Speed Steel Cobalt (SPM-HSS Co11%)
Finish: Titanium Aluminium Nitride (TiAIN)
Max Cut Depth: 3xD
Shank Form: Reduced Shank (with square drive)
X: als
Type: Fluteless - Multi Coolant Groove
Standard: DIN2174
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: 6HX
Lead: Form C / 3 x P

Application +

Applications

Aluminum & Magnesium, wrought alloy - Non Heat Treatable
Aluminum & Magnesium, wrought alloy - Heat Treatable
Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable
Aluminum & Magnesium, cast alloy ≤12% Si - Heat Treatable: Age Hardened
Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%
Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn)

Features & Benefits +

Features

Suitable for materials with >10% elongation
Through or blind holes
Depths up to 3 x d

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Sutton T3301200 Tap M 12 x 1.75 6HX Forming Cu DIN2174 C HSSE CrN CrN HSSE V3

SKU: A0014542

Type: Threading Die

$199.80

Inc. GST

⚙Precision Heat Treated

⚙Sutton Tap 1.75 6HX

📐Precision Ground Thread Form

🔩Precise Thread Cutting

🏗Metalworking & Manufacturing

☑High Speed Operation Rated

Available

Product Highlights −

Dimensions

d1: M12
d2 (mm): 9
l1 (mm): 110
l2 (mm): 29
l4 (mm): 10
Square Size (mm): 7
Drill Size (mm): 11.2 (drill)
Pitch (mm): 1.75 (pitch)

Features

Suitable for materials with >10% elongation
Through or blind holes
Depths up to 3 x d

Specifications

Designation: Cu (for copper materials)
Material: Powdered Metallurgy- High Speed Steel Cobalt (SPM-HSS Co11%)
Finish: Titanium Aluminium Nitride (TiAIN)
Max Cut Depth: 3xD
Shank Form: Reduced Shank (with square drive)
X: als
Type: Fluteless - Multi Coolant Groove
Standard: DIN2174
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: 6HX
Lead: Form C / 3 x P

Applications

Aluminum & Magnesium, wrought alloy - Non Heat Treatable
Aluminum & Magnesium, wrought alloy - Heat Treatable
Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable
Aluminum & Magnesium, cast alloy ≤12% Si - Heat Treatable: Age Hardened
Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%
Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn)
