Description
Description
Features
- Use in stainless steels and high strength steels up to 1000N/mm2
- PM-HSSE V3 offers higher edge hardness than standard VA series
- Blind holes
- Suitable for machine operations
- Depths up to approx. 3 x d1
Specifications
- Designation: VA (for stainless and tough steels)
- Material: Powdered Metallurgy - Vanadium Grade High Speed Steel (PM-HSSE V3)
- Finish: Steam Oxide (Blue)
- Max Cut Depth: 3xD
- Shank Form: Reduced Shank (with square drive)
- Helix Angle: R50
- X: als
- Type: Spiral Flute
- Standard: DIN5156
- Thread Form: ISO G Parallel Series 55° (G-BSPF)
- Nut Tolerance: ISO 228
- Lead: Form C / 3 x P
Applications
- Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
- Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
- Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
- Steel - Low alloy & cast < 5% of alloying elements: Annealed
- Stainless Steel - Austenitic: Age Hardened
- Stainless Steel - Duplex
Specifications
Specifications
Specifications
- Designation: VA (for stainless and tough steels)
- Material: Powdered Metallurgy - Vanadium Grade High Speed Steel (PM-HSSE V3)
- Finish: Steam Oxide (Blue)
- Max Cut Depth: 3xD
- Shank Form: Reduced Shank (with square drive)
- Helix Angle: R50
- X: als
- Type: Spiral Flute
- Standard: DIN5156
- Thread Form: ISO G Parallel Series 55° (G-BSPF)
- Nut Tolerance: ISO 228
- Lead: Form C / 3 x P
Applications
Applications
Applications
- Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
- Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
- Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
- Steel - Low alloy & cast < 5% of alloying elements: Annealed
- Stainless Steel - Austenitic: Age Hardened
- Stainless Steel - Duplex
Features & Benefits
Features & Benefits
Features
- Use in stainless steels and high strength steels up to 1000N/mm2
- PM-HSSE V3 offers higher edge hardness than standard VA series
- Blind holes
- Suitable for machine operations
- Depths up to approx. 3 x d1
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

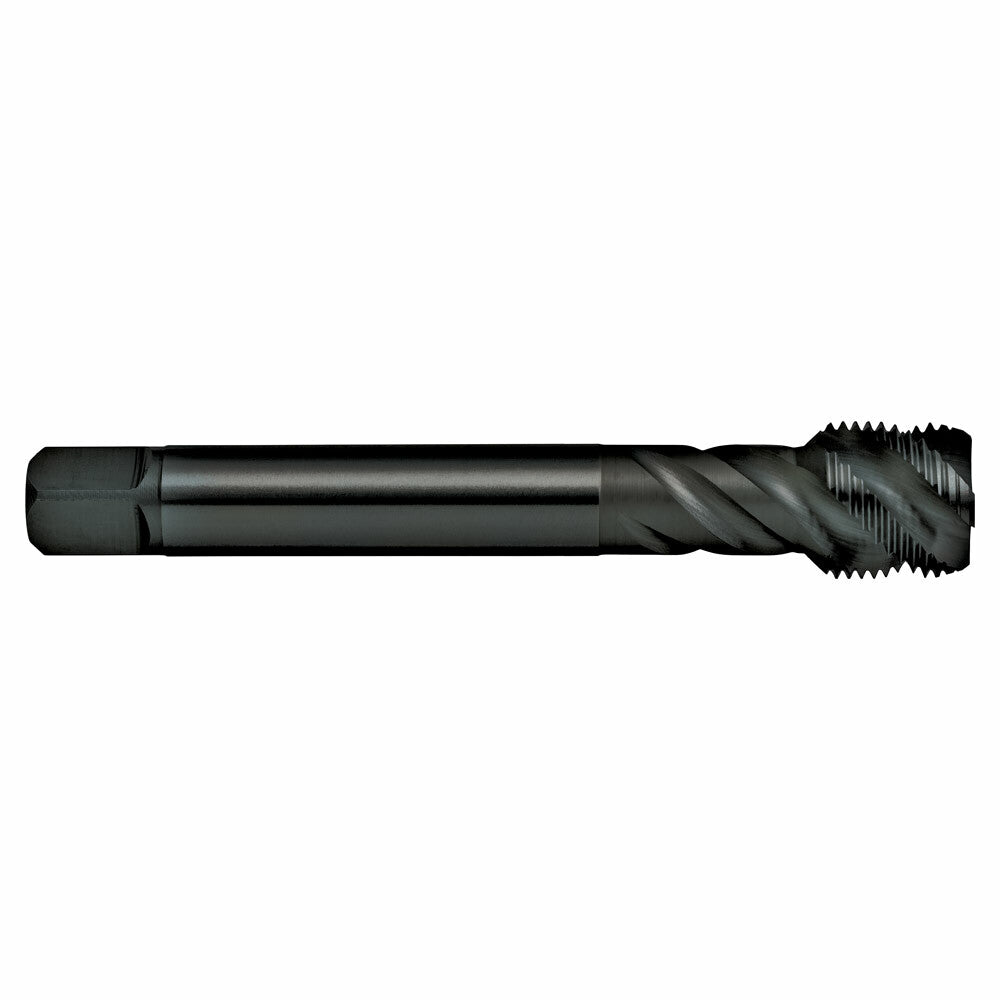

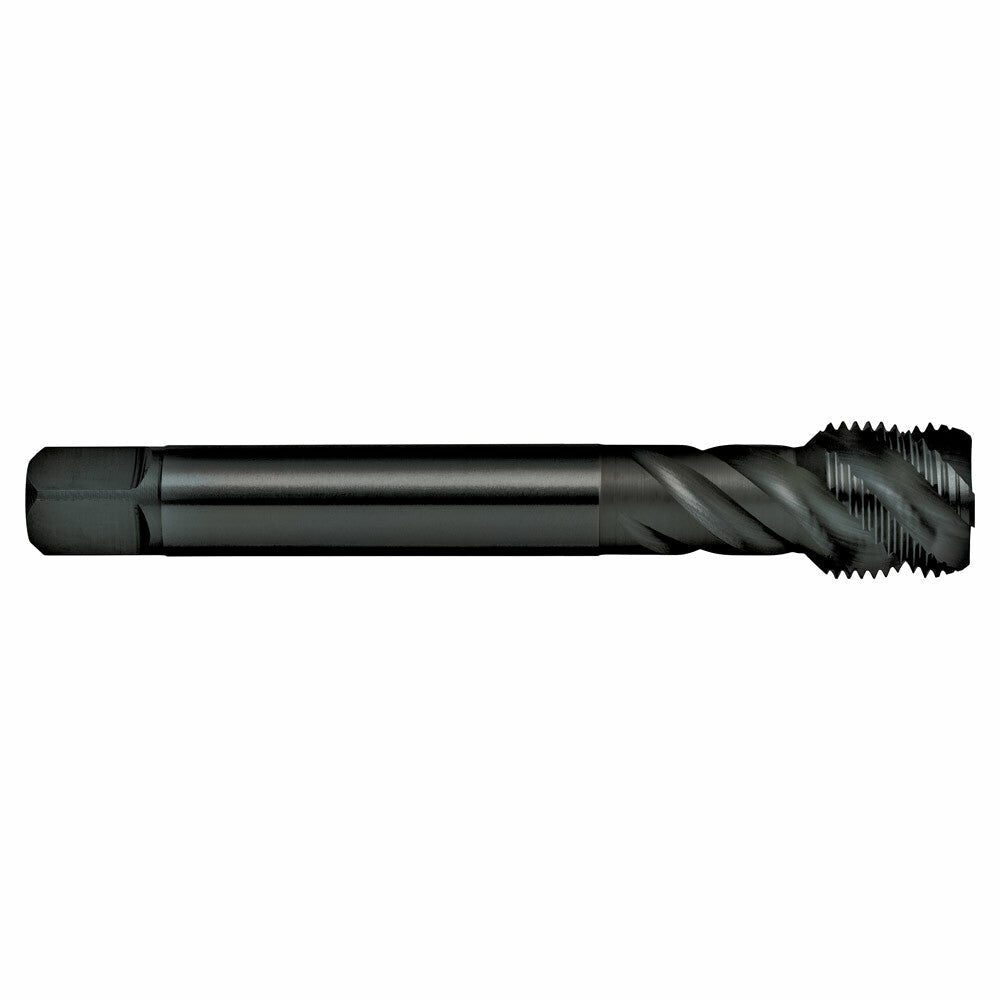

Sutton T351 BSPF Spiral Flute Tap - R50 VAPM - Vanadium HSS Blue
Sutton T351 BSPF Spiral Flute Tap - R50 VAPM - Vanadium HSS Blue
SKU: A0014597
- Wide Range
- Reliable Services
- Proven Trust
Available
The Sutton T351 BSPF Spiral Flute Tap by Sutton Tools is a 0 with Powdered Metallurgy - Vanadium Grade High Speed Steel (PM-HSSE V3) material. It provides 125 mm l1 and is suitable for Stainless Steel - Austenitic Age Hardened.
