Sutton T363 BSPF Thread Forming Tap - Premium HSS TiCN1

Sutton T363 BSPF Thread Forming Tap - Premium HSS TiCN2

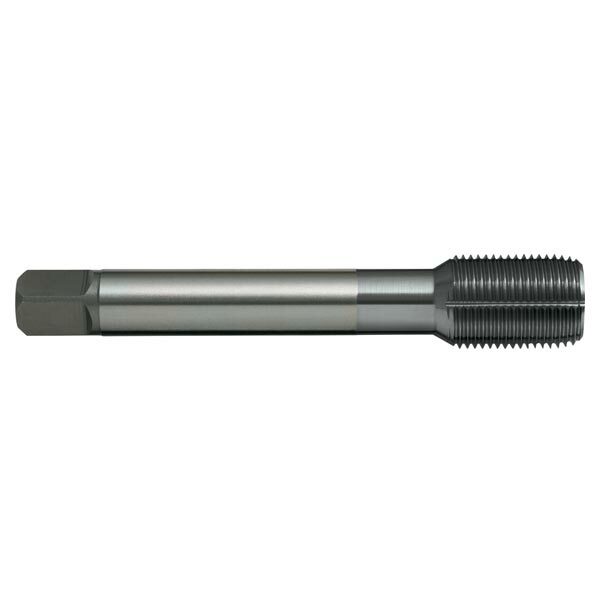

Sutton T3630973 BSPF G 1/8 x 28 Thread Forming Tap - HSSE V3 TiCN

Sutton T3631316 BSPF G 1/4 x 19 Thread Forming Tap - HSSE V3 TiCN

Sutton T3631666 BSPF G 3/8 x 19 Thread Forming Tap - HSSE V3 TiCN

Sutton T3632096 BSPF G 1/2 x 14 Thread Forming Tap - HSSE V3 TiCN

Sutton T3632291 BSPF G 5/8 x 14 Thread Forming Tap - HSSE V3 TiCN

Sutton T3632644 BSPF G 3/4 x 14 Thread Forming Tap - HSSE V3 TiCN

Specifications +

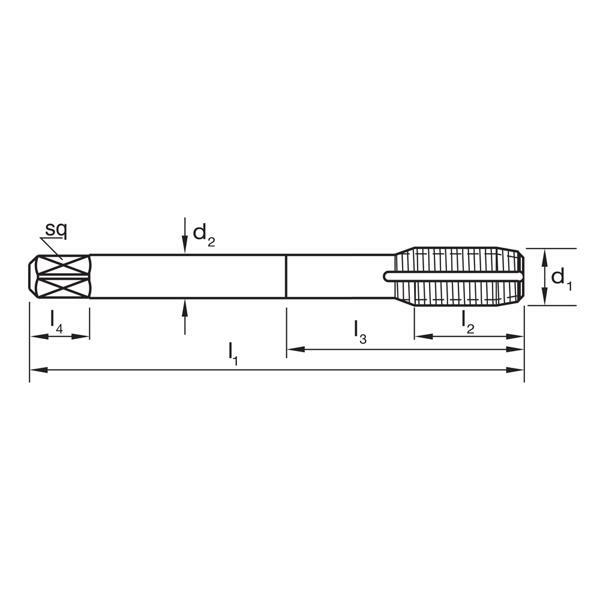

Dimensions

d1: G 1/8
d2 (mm): 7
l1 (mm): 90
l2 (mm): 20
l4 (mm): 8
Square Size (mm): 5.5
Drill Size (mm): 9.25 (drill)
TPI: 28 (TPI)

Specifications

Designation: N (for normal general purpose type materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Titanium Carbonitride (TiCN)
Max Cut Depth: 3xD
Shank Form: Reduced Shank (with square drive)
X: als
Type: Fluteless - Multi Coolant Groove
Standard: DIN5156
Thread Form: ISO G Parallel Series 55Â° (G-BSPF)
Nut Tolerance: ISO 228 X
Lead: Form C / 3 x P

Application +

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Stainless Steel - Austenitic: Age Hardened
Aluminum & Magnesium, wrought alloy - Non Heat Treatable
Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened
Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%

Features & Benefits +

Features

For cold forming of threads in materials with good flow characteristics
Brt - For non-ferrous materials
TiCN - Suitable for abrasive and difficult materials
Through or blind holes
Suitable for machine operations
Depths up to approx. 3 x d1

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Save 29%

Sutton T363 BSPF Thread Forming Tap - Premium HSS TiCN

SKU: A0014631

Type: Threading Die

$250.93

$250.93 ~~$358.47~~

Inc. GST

⚙Professional Grade Construction

⚙Sutton BSPF Thread Forming

📐Multiple Sizes Available

🔩Precise Thread Cutting

🏗Metalworking & Manufacturing

☑High Speed Operation Rated

Available

Product Highlights −

Dimensions

d1: G 1/8
d2 (mm): 7
l1 (mm): 90
l2 (mm): 20
l4 (mm): 8
Square Size (mm): 5.5
Drill Size (mm): 9.25 (drill)
TPI: 28 (TPI)

Features

For cold forming of threads in materials with good flow characteristics
Brt - For non-ferrous materials
TiCN - Suitable for abrasive and difficult materials
Through or blind holes
Suitable for machine operations
Depths up to approx. 3 x d1

Specifications

Designation: N (for normal general purpose type materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Titanium Carbonitride (TiCN)
Max Cut Depth: 3xD
Shank Form: Reduced Shank (with square drive)
X: als
Type: Fluteless - Multi Coolant Groove
Standard: DIN5156
Thread Form: ISO G Parallel Series 55Â° (G-BSPF)
Nut Tolerance: ISO 228 X
Lead: Form C / 3 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Stainless Steel - Austenitic: Age Hardened
Aluminum & Magnesium, wrought alloy - Non Heat Treatable
Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened
Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%
