Description
Description

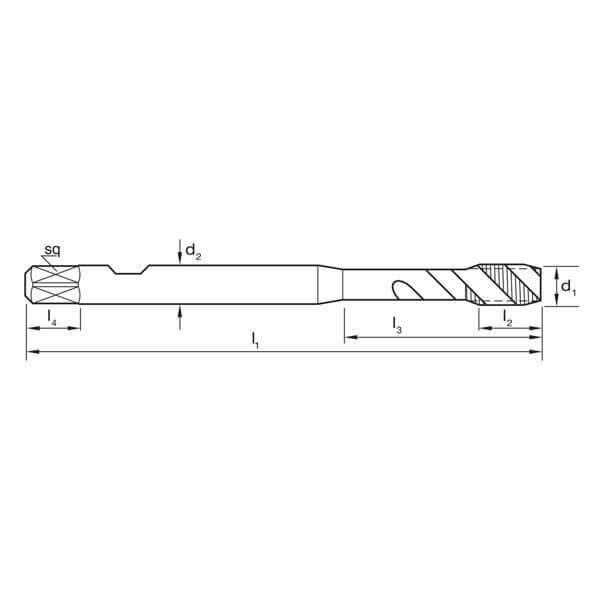

Dimensions
- d1: M5
- d2 (mm): 6
- l1 (mm): 70
- l2 (mm): 8
- l3 (mm): 25
- l4 (mm): 8
- Square Size (mm): 4.9
- z: 2
- Drill Size (mm): 4.2 (drill)
- Pitch (mm): 0.8 (pitch)
Features
- For high speed and precision tapping
- For rigid tapping in CNC machines with synchronised feed for aluminium & aluminium alloys
- Blind holes up to 2 x d1
- h6 endmill shank
Specifications
- Designation: Al (for malleable aluminum with long chips)
- Material: Powdered Metallurgy - Vanadium Grade High Speed Steel (PM-HSSE V3)
- Finish: Chromium Nitride (CrN)
- Max Cut Depth: 2xD
- Shank Form: Reinforced Shank (square-end, drive-flat)
- Helix Angle: R45
- X: ru
- Type: Spiral Flute
- Standard: Sutton
- Thread Form: ISO Metric Coarse (M)
- Nut Tolerance: 6HX
- Lead: Form C / 3 x P
Applications
- Aluminum & Magnesium, wrought alloy - Non Heat Treatable
- Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened
- Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable
- Aluminum & Magnesium, cast alloy ≤12% Si - Heat Treatable: Age Hardened
- Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%
- Copper & Copper alloys (Brass/Bronze) - Brass (CuZn, CuSnZn)
- Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn)
Specifications
Specifications
Dimensions
- d1: M5
- d2 (mm): 6
- l1 (mm): 70
- l2 (mm): 8
- l3 (mm): 25
- l4 (mm): 8
- Square Size (mm): 4.9
- z: 2
- Drill Size (mm): 4.2 (drill)
- Pitch (mm): 0.8 (pitch)
Specifications
- Designation: Al (for malleable aluminum with long chips)
- Material: Powdered Metallurgy - Vanadium Grade High Speed Steel (PM-HSSE V3)
- Finish: Chromium Nitride (CrN)
- Max Cut Depth: 2xD
- Shank Form: Reinforced Shank (square-end, drive-flat)
- Helix Angle: R45
- X: ru
- Type: Spiral Flute
- Standard: Sutton
- Thread Form: ISO Metric Coarse (M)
- Nut Tolerance: 6HX
- Lead: Form C / 3 x P
Applications
Applications
Applications
- Aluminum & Magnesium, wrought alloy - Non Heat Treatable
- Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened
- Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable
- Aluminum & Magnesium, cast alloy ≤12% Si - Heat Treatable: Age Hardened
- Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%
- Copper & Copper alloys (Brass/Bronze) - Brass (CuZn, CuSnZn)
- Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn)
Features & Benefits
Features & Benefits
Features
- For high speed and precision tapping
- For rigid tapping in CNC machines with synchronised feed for aluminium & aluminium alloys
- Blind holes up to 2 x d1
- h6 endmill shank
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

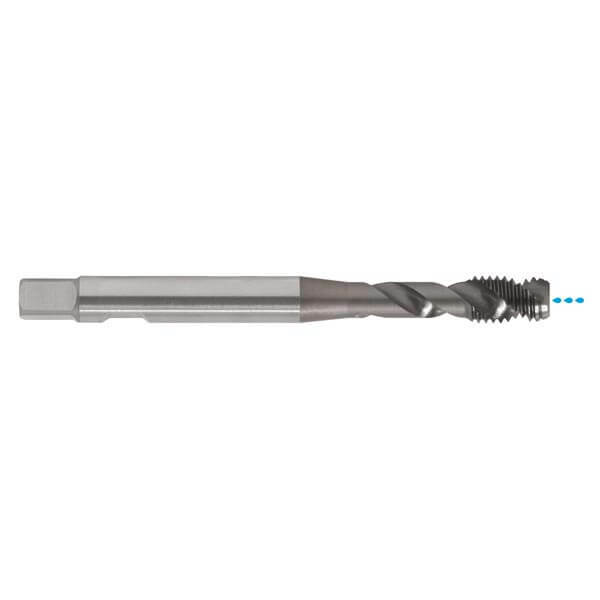

Sutton T371 Metric Spiral Flute Tap - R45 AI IK Synchro - HSSE V3 CrN
Sutton T371 Metric Spiral Flute Tap - R45 AI IK Synchro - HSSE V3 CrN
SKU: A0014670
- Wide Range
- Reliable Services
- Proven Trust
Available
The Sutton T371 Metric Spiral Flute Tap by Sutton Tools is a 0 with CrN finish. It provides M10 thread and is suitable for Aluminium & Magnesium, wrought alloy.
