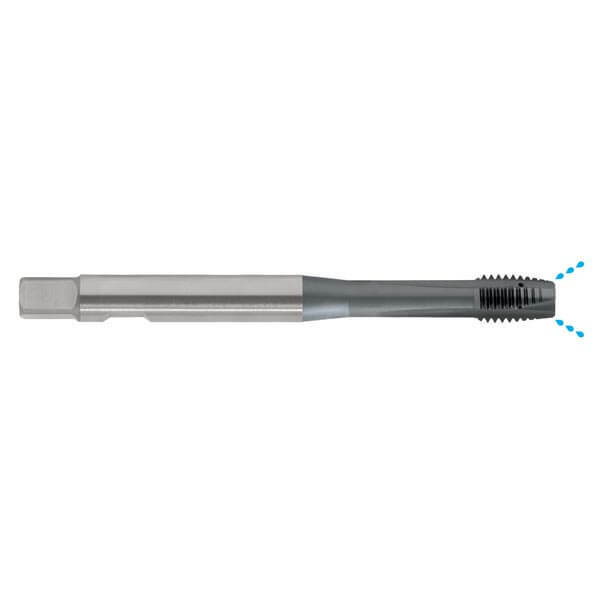

Sutton T379 Metric Spiral Point Tap - Synchro - Vanadium HSS TiCN1

Sutton T379 Metric Spiral Point Tap - Synchro - Vanadium HSS TiCN2

Sutton T3790500 M5 x 0.8 Spiral Point Tap - Synchro - HSSE V3 TiCN

Sutton T3790600 M6 x 1 Spiral Point Tap - Synchro - HSSE V3 TiCN

Sutton T3790800 M8 x 1.25 Spiral Point Tap - Synchro - HSSE V3 TiCN

Sutton T3791000 M10 x 1.5 Spiral Point Tap - Synchro - HSSE V3 TiCN

Sutton T3791200 M12 x 1.75 Spiral Point Tap - Synchro - HSSE V3 TiCN

Sutton T3791400 M14 x 2 Spiral Point Tap - Synchro - HSSE V3 TiCN

Sutton T3791600 M16 x 2 Spiral Point Tap - Synchro - HSSE V3 TiCN

Sutton T3791800 M18 x 2.5 Spiral Point Tap - Synchro - HSSE V3 TiCN

Sutton T3792000 M20 x 2.5 Spiral Point Tap - Synchro - HSSE V3 TiCN

Specifications +

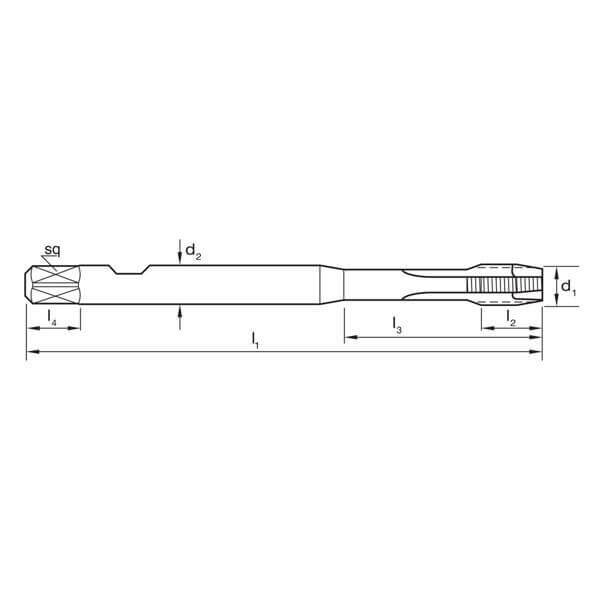

Dimensions

d1: M5
d2 (mm): 6
l1 (mm): 70
l2 (mm): 8
l3 (mm): 25
l4 (mm): 8
Square Size (mm): 4.9
z: 3
Drill Size (mm): 4.2 (drill)
Pitch (mm): 0.8 (pitch)

Specifications

Designation: N (for normal general purpose type materials)
Material: Powdered Metallurgy - Vanadium Grade High Speed Steel (PM-HSSE V3)
Finish: Titanium Carbonitride (TiCN)
Max Cut Depth: 2xD
Shank Form: Reinforced Shank (square-end, drive-flat)
X: ru
Type: Spiral Point (Gun)
Standard: Sutton
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: 6HX
Lead: Form B / 4.5 x P

Application +

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
Steel - High alloy, cast & tool: Annealed
Steel - Corrosion resistant & cast - Ferritic / Martensitic: Annealed
Stainless Steel - Austenitic: Age Hardened
Stainless Steel – Duplex
Cast Iron, Grey (GG) - Ferritic / Pearlitic
Cast Iron, Nodular (GGG) – Ferritic
Cast Iron, Malleable – Ferritic
Aluminum & Magnesium, wrought alloy - Non Heat Treatable
Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened
Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable
Aluminum & Magnesium, cast alloy ≤12% Si - Heat Treatable: Age Hardened
Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%
Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn)
High temperature alloys - Fe based: Annealed
High temperature alloys - Ni / Co based: Annealed

Features & Benefits +

Features

For high speed and precision tapping
For rigid tapping in CNC machines with synchronised feed
For aluminium and aluminium alloys
Process of plastic deformation to imprint thread on material
Blind and through holes up to 2 x d1
h6 endmill shank

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Save 29%

Sutton T379 Metric Spiral Point Tap - Synchro - Vanadium HSS TiCN

SKU: A0014713

Type: Spiral Flute Tap

$138.01

$138.01 ~~$197.15~~

Inc. GST

⚙High Speed Steel (HSS)

⚙Sutton Metric Spiral Point

📐Multiple Sizes Available

🔩Precise Thread Cutting

🏗Metalworking & Manufacturing

☑High Speed Operation Rated

Available

Product Highlights −

Dimensions

d1: M5
d2 (mm): 6
l1 (mm): 70
l2 (mm): 8
l3 (mm): 25
l4 (mm): 8
Square Size (mm): 4.9
z: 3
Drill Size (mm): 4.2 (drill)
Pitch (mm): 0.8 (pitch)

Features

For high speed and precision tapping
For rigid tapping in CNC machines with synchronised feed
For aluminium and aluminium alloys
Process of plastic deformation to imprint thread on material
Blind and through holes up to 2 x d1
h6 endmill shank

Specifications

Designation: N (for normal general purpose type materials)
Material: Powdered Metallurgy - Vanadium Grade High Speed Steel (PM-HSSE V3)
Finish: Titanium Carbonitride (TiCN)
Max Cut Depth: 2xD
Shank Form: Reinforced Shank (square-end, drive-flat)
X: ru
Type: Spiral Point (Gun)
Standard: Sutton
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: 6HX
Lead: Form B / 4.5 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
Steel - High alloy, cast & tool: Annealed
Steel - Corrosion resistant & cast - Ferritic / Martensitic: Annealed
Stainless Steel - Austenitic: Age Hardened
Stainless Steel – Duplex
Cast Iron, Grey (GG) - Ferritic / Pearlitic
Cast Iron, Nodular (GGG) – Ferritic
Cast Iron, Malleable – Ferritic
Aluminum & Magnesium, wrought alloy - Non Heat Treatable
Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened
Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable
Aluminum & Magnesium, cast alloy ≤12% Si - Heat Treatable: Age Hardened
Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%
Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn)
High temperature alloys - Fe based: Annealed
High temperature alloys - Ni / Co based: Annealed
