Description
Description
Dimensions
- d1: M3
- d2 (mm): 3.15
- l1 (mm): 48
- l2 (mm): 11
- l3 (mm): 15
- l4 (mm): 5
- sq: 2.5
- sq: 3
- Drill Size (mm): 2.5 (drill)
- Pitch (mm): 0.5 (pitch)
Features
- General purpose use
- Suitable for materials up to 1000N/mm2
- Through holes
- Depths up to approx. 3 x d1
Specifications
- Designation: N (for normal general purpose type materials)
- Material: Premium Grade High Speed Steel (HSSE V3)
- Finish: Titanium Nitride (TiN)
- Max Cut Depth: 3xD
- Shank Form: Reinforced Shank (with square drive)
- X: als
- Type: Spiral Point (Gun)
- Standard: ISO529
- Thread Form: ISO Metric Coarse (M)
- Nut Tolerance: ISO 2 / 6H
- Lead: Form B / 4.5 x P
Applications
- Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
- Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
- Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
- Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
- Steel - Low alloy & cast < 5% of alloying elements: Annealed
- Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
Specifications
Specifications
Dimensions
- d1: M3
- d2 (mm): 3.15
- l1 (mm): 48
- l2 (mm): 11
- l3 (mm): 15
- l4 (mm): 5
- sq: 2.5
- sq: 3
- Drill Size (mm): 2.5 (drill)
- Pitch (mm): 0.5 (pitch)
Specifications
- Designation: N (for normal general purpose type materials)
- Material: Premium Grade High Speed Steel (HSSE V3)
- Finish: Titanium Nitride (TiN)
- Max Cut Depth: 3xD
- Shank Form: Reinforced Shank (with square drive)
- X: als
- Type: Spiral Point (Gun)
- Standard: ISO529
- Thread Form: ISO Metric Coarse (M)
- Nut Tolerance: ISO 2 / 6H
- Lead: Form B / 4.5 x P
Applications
Applications
Applications
- Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
- Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
- Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
- Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
- Steel - Low alloy & cast < 5% of alloying elements: Annealed
- Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
Features & Benefits
Features & Benefits
Features
- General purpose use
- Suitable for materials up to 1000N/mm2
- Through holes
- Depths up to approx. 3 x d1
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

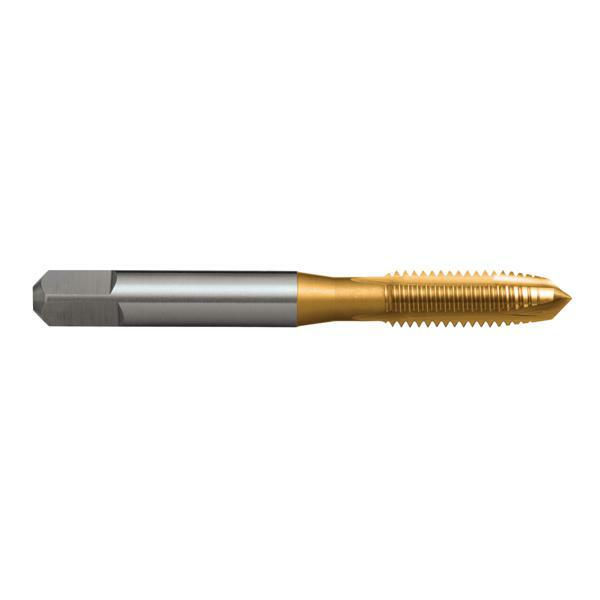

Sutton T395 Metric Spiral Point Tap - Premium HSS Tinite
Sutton T395 Metric Spiral Point Tap - Premium HSS Tinite
SKU: A0014926
- Wide Range
- Reliable Services
- Proven Trust
Available
The Sutton T395 Metric Spiral Point Tap by Sutton Tools is a 0 made from Premium Grade High Speed Steel (HSSE V3). It provides a Drill Size of 8.5 (drill) and is suitable for Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed.
- FREE SHIPPING OVER $299*
- RETURN AND EXCHANGE POLICY
Couldn't load pickup availability
Description
Description
Dimensions
- d1: M3
- d2 (mm): 3.15
- l1 (mm): 48
- l2 (mm): 11
- l3 (mm): 15
- l4 (mm): 5
- sq: 2.5
- sq: 3
- Drill Size (mm): 2.5 (drill)
- Pitch (mm): 0.5 (pitch)
Features
- General purpose use
- Suitable for materials up to 1000N/mm2
- Through holes
- Depths up to approx. 3 x d1
Specifications
- Designation: N (for normal general purpose type materials)
- Material: Premium Grade High Speed Steel (HSSE V3)
- Finish: Titanium Nitride (TiN)
- Max Cut Depth: 3xD
- Shank Form: Reinforced Shank (with square drive)
- X: als
- Type: Spiral Point (Gun)
- Standard: ISO529
- Thread Form: ISO Metric Coarse (M)
- Nut Tolerance: ISO 2 / 6H
- Lead: Form B / 4.5 x P
Applications
- Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
- Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
- Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
- Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
- Steel - Low alloy & cast < 5% of alloying elements: Annealed
- Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
Specifications
Specifications
Dimensions
- d1: M3
- d2 (mm): 3.15
- l1 (mm): 48
- l2 (mm): 11
- l3 (mm): 15
- l4 (mm): 5
- sq: 2.5
- sq: 3
- Drill Size (mm): 2.5 (drill)
- Pitch (mm): 0.5 (pitch)
Specifications
- Designation: N (for normal general purpose type materials)
- Material: Premium Grade High Speed Steel (HSSE V3)
- Finish: Titanium Nitride (TiN)
- Max Cut Depth: 3xD
- Shank Form: Reinforced Shank (with square drive)
- X: als
- Type: Spiral Point (Gun)
- Standard: ISO529
- Thread Form: ISO Metric Coarse (M)
- Nut Tolerance: ISO 2 / 6H
- Lead: Form B / 4.5 x P
Applications
Applications
Applications
- Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
- Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
- Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
- Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
- Steel - Low alloy & cast < 5% of alloying elements: Annealed
- Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
Features & Benefits
Features & Benefits
Features
- General purpose use
- Suitable for materials up to 1000N/mm2
- Through holes
- Depths up to approx. 3 x d1
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Sutton T395 Metric Spiral Point Tap - Premium HSS Tinite
Customer Service
Mon-Fri, 08:00-05:00pm
Call Us
(02) 9773-0122
Talk to a Sales Engineer
sales@aimsindustrial.com.au
Warehouse Address
Milperra NSW 2214, Australia
Your cart
(0)
Your cart is currently empty.
Not sure where to start? Try these collections:
Order note
Estimate Shipping
Product Comparison
| Description |
| Price |
| Vendor |
| Type |
| Product variants |
|
| The Sutton T395 Metric Spiral Point Tap by Sutton Tools is a 0 made from Premium Grade High Speed Steel (HSSE V3). It provides a Drill Size of 8.5 (drill) and is suitable for Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed. |
Regular price
From $59.51
Sale price
From $59.51
Regular price
Unit price
/per
| Sutton Tools |
Diameter (metric)
M3,M3.5,M4,M5,M6,M8,M10,M12,M16,M18,M20
|
Choose your option
Sutton T395 Metric Spiral Point Tap - Premium HSS Tinite
Sutton T395 Metric Spiral Point Tap - Premium HSS Tinite
SKU: A0014926
Available
The Sutton T395 Metric Spiral Point Tap by Sutton Tools is a 0 made from Premium Grade High Speed Steel (HSSE V3). It provides a Drill Size of 8.5 (drill) and is suitable for Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed.
