Description
Description

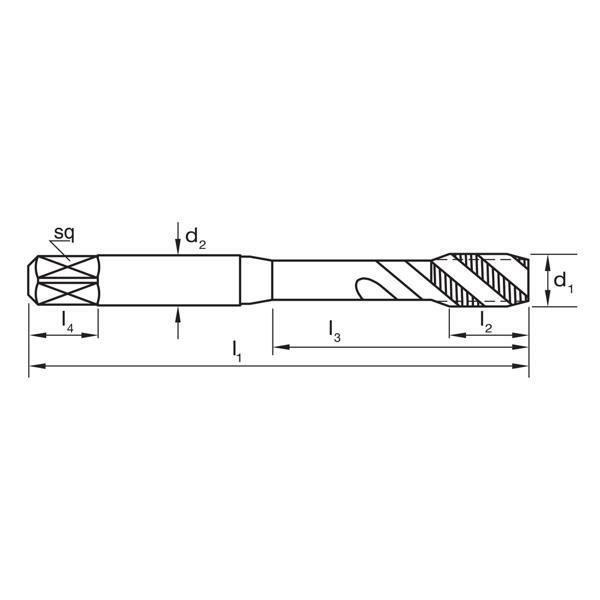

Dimensions
- d1: MF8
- d2 (mm): 8
- l1 (mm): 72
- l2 (mm): 22
- l3 (mm): 30
- l4 (mm): 9
- sq: 6.3
- z: 3
- Drill Size (mm): 7 (drill)
- Pitch (mm): 1 (pitch)
Features
- Form C / 3 x P General purpose use
- Suitable for materials up to 1000N/mm2
- Blind holes
- Depths up to approx. 2.5 x d1
Specifications
- Designation: N (for normal general purpose type materials)
- Material: Premium Grade High Speed Steel (HSSE-V3)
- Finish: Titanium Nitride (TiN)
- Max Cut Depth: 2.5xD
- Shank Form: Reinforced Shank (with square drive)
- Helix Angle: R40
- X: als
- Type: Spiral Flute
- Standard: ISO529
- Thread Form: ISO Metric Fine (MF)
- Lead: ISO 2 / 6H
Applications
- Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
- Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
- Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
- Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
- Steel - Low alloy & cast < 5% of alloying elements: Annealed
- Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
Specifications
Specifications
Dimensions
- d1: MF8
- d2 (mm): 8
- l1 (mm): 72
- l2 (mm): 22
- l3 (mm): 30
- l4 (mm): 9
- sq: 6.3
- z: 3
- Drill Size (mm): 7 (drill)
- Pitch (mm): 1 (pitch)
Specifications
- Designation: N (for normal general purpose type materials)
- Material: Premium Grade High Speed Steel (HSSE-V3)
- Finish: Titanium Nitride (TiN)
- Max Cut Depth: 2.5xD
- Shank Form: Reinforced Shank (with square drive)
- Helix Angle: R40
- X: als
- Type: Spiral Flute
- Standard: ISO529
- Thread Form: ISO Metric Fine (MF)
- Lead: ISO 2 / 6H
Applications
Applications
Applications
- Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
- Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
- Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
- Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
- Steel - Low alloy & cast < 5% of alloying elements: Annealed
- Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
Features & Benefits
Features & Benefits
Features
- Form C / 3 x P General purpose use
- Suitable for materials up to 1000N/mm2
- Blind holes
- Depths up to approx. 2.5 x d1
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

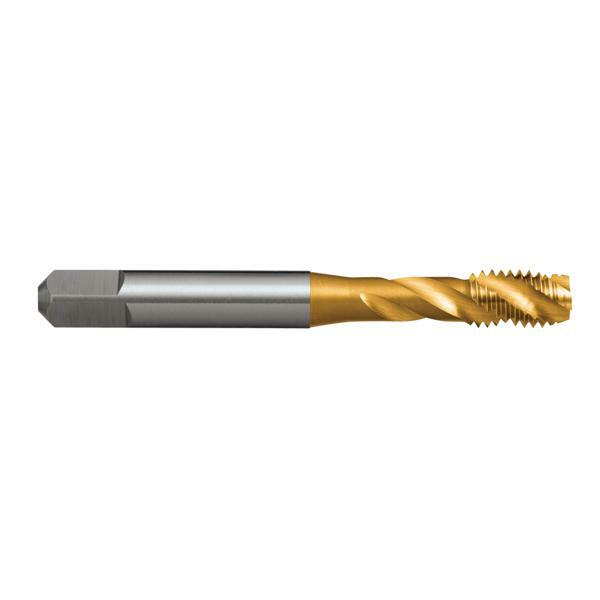

Sutton T411 Metric Fine Spiral Flute Tap - Bottoming - HSSE V3 Tinite
