Sutton T429 UNC Thread Forming Tap - Bottoming Short - HSSE V3 Tinite1

Sutton T429 UNC Thread Forming Tap - Bottoming Short - HSSE V3 Tinite2

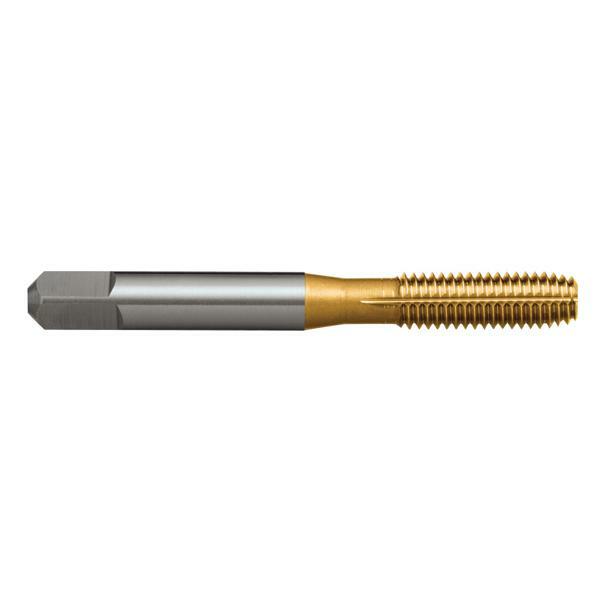

Sutton T4290351 UNC 6-32 Thread Forming Tap Bottoming Short HSSE V3 TiN

Sutton T4290417 UNC 8-32 Thread Forming Tap Bottoming Short HSSE V3 TiN

Sutton T4290483 UNC 10-24 Thread Forming Tap Bottoming Short HSSE V3 TiN

Sutton T4290635 UNC 1/4-20 Thread Forming Tap Bottoming Short HSSE V3 TiN

Specifications +

Dimensions

d1 (mm): 3.5052
d2 (mm): 3.55
l1 (mm): 50
l2 (mm): 17
l3 (mm): 17.5
l4 (mm): 5
sq: 2.8
Drill Size (mm): 3.2 (drill)
TPI: 32 (TPI)

Specifications

Designation: N (for normal general purpose type materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Titanium Nitride (TiN)
Max Cut Depth: 1.5xD
Shank Form: Reinforced Shank (with square drive)
X: als
Type: Fluteless - Single Coolant Groove
Standard: ISO529
Thread Form: UNC
Nut Tolerance: 2B
Lead: Form C / 3 x P

Application +

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Aluminum & Magnesium, wrought alloy - Non Heat Treatable
Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened
Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%

Features & Benefits +

Features

For cold forming of threads in materials with good flow characteristics
Through or Blind holes
Depths up to approx. 1.5
TiN For longer tool life

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Save 29%

Sutton T429 UNC Thread Forming Tap - Bottoming Short - HSSE V3 Tinite

SKU: A0015287

Type: Threading Die

$114.36

$114.36 ~~$163.37~~

Inc. GST

⚙Professional Grade Construction

⚙Sutton UNC Thread Forming

📐Multiple Sizes Available

🔩Precise Thread Cutting

🏗Metalworking & Manufacturing

☑High Speed Operation Rated

Available

Product Highlights −

Dimensions

d1 (mm): 3.5052
d2 (mm): 3.55
l1 (mm): 50
l2 (mm): 17
l3 (mm): 17.5
l4 (mm): 5
sq: 2.8
Drill Size (mm): 3.2 (drill)
TPI: 32 (TPI)

Features

For cold forming of threads in materials with good flow characteristics
Through or Blind holes
Depths up to approx. 1.5
TiN For longer tool life

Specifications

Designation: N (for normal general purpose type materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Titanium Nitride (TiN)
Max Cut Depth: 1.5xD
Shank Form: Reinforced Shank (with square drive)
X: als
Type: Fluteless - Single Coolant Groove
Standard: ISO529
Thread Form: UNC
Nut Tolerance: 2B
Lead: Form C / 3 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Aluminum & Magnesium, wrought alloy - Non Heat Treatable
Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened
Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%
