Sutton T433 1 x 12 TPI Straight Flute Tap Bottoming - HSS - Bright - ISO 529
Available
The Sutton T433 is a straight flute tap (bottoming chamfer) for UNF threads, made from high speed steel (HSS) with a bright finish. This listing covers 22 sizes from #3 x 56 TPI to 1-1/2 x 12 TPI.
Straight flutes suit through or blind holes, but they hold only a small amount of chips and do not transport them axially, so deep holes are best avoided except in short chipping materials. The tap has a bottoming chamfer (Form E, 1.5 to 2 threads on the lead), for blind holes with very short thread run-out.
The tap is built to ISO 529: short machine tap construction.
Where this product is used
- General purpose use.
- Suitable for materials up to 1000 N/mm2.
- Through & blind holes.
- Suitable for both hand and machine operations.
- Depths up to approx. 1 x d1.
Design features
- High speed steel (HSS). Standard tool material for most common applications.
- Bright finish for general purpose applications.
- 3 to 4 flutes, depending on size.
- Bottoming chamfer (Form E), for blind holes with very short thread run-out.
- ISO 529 construction, short machine tap construction.
Sizes
Dimensions are in millimetres. Item numbers are the Sutton catalogue numbers. If you are not sure which tapping drill to use, try our tap drill size selector.
| Item no. | Thread size | TPI | Tapping drill (mm) | l1 overall (mm) | l2 thread (mm) | l3 (mm) | d2 shank (mm) | sq square (mm) | l4 square length (mm) | Flutes |
|---|---|---|---|---|---|---|---|---|---|---|
| T433 0251 | #3 x 56 TPI | 56 | 2.1 | 45 | 10 | - | 2.8 | 2.24 | 5 | 3 |
| T433 0284 | #4 x 48 TPI | 48 | 2.35 | 48 | 15 | 14.5 | 3.15 | 2.5 | 5 | 3 |
| T433 0318 | #5 x 44 TPI | 44 | 2.65 | 48 | 15 | 15 | 3.15 | 2.5 | 5 | 3 |
| T433 0351 | #6 x 40 TPI | 40 | 2.9 | 50 | 17 | 17.5 | 3.55 | 2.8 | 5 | 3 |
| T433 0417 | #8 x 36 TPI | 36 | 3.5 | 53 | 13 | 17 | 4.5 | 3.55 | 6 | 3 |
| T433 0476 | 3/16 x 32 TPI | 32 | 4 | 58 | 16 | 22 | 5 | 4 | 7 | 3 |
| T433 0483 | #10 x 32 TPI | 32 | 4.1 | 58 | 16 | 22 | 5 | 4 | 7 | 3 |
| T433 0549 | #12 x 28 TPI | 28 | 4.6 | 62 | 17 | 23 | 5.6 | 4.5 | 7 | 3 |
| T433 0635 | 1/4 x 28 TPI | 28 | 5.5 | 66 | 19 | 25 | 6.3 | 5 | 8 | 3 |
| T433 0794 | 5/16 x 24 TPI | 24 | 6.9 | 72 | 22 | 30 | 8 | 6.3 | 9 | 4 |
| T433 0953 | 3/8 x 24 TPI | 24 | 8.5 | 80 | 24 | 33 | 10 | 8 | 11 | 4 |
| T433 1111 | 7/16 x 20 TPI | 20 | 9.8 | 85 | 25 | - | 8 | 6.3 | 9 | 4 |
| T433 1270 | 1/2 x 20 TPI | 20 | 11.5 | 89 | 29 | - | 9 | 7.1 | 10 | 4 |
| T433 1429 | 9/16 x 18 TPI | 18 | 12.8 | 95 | 30 | - | 11.2 | 9 | 12 | 4 |
| T433 1588 | 5/8 x 18 TPI | 18 | 14.5 | 102 | 32 | - | 12.5 | 10 | 13 | 4 |
| T433 1905 | 3/4 x 16 TPI | 16 | 17.5 | 112 | 37 | - | 14 | 11.2 | 14 | 4 |
| T433 2223 | 7/8 x 14 TPI | 14 | 20.5 | 118 | 38 | - | 16 | 12.5 | 16 | 4 |
| T433 2540 | 1 x 12 TPI | 12 | 23.5 | 130 | 45 | - | 18 | 14 | 18 | 4 |
| T433 2541 | 1 x 14 TPI | 14 | 24 | 130 | 45 | - | 18 | 14 | 18 | 4 |
| T433 2858 | 1-1/8 x 12 TPI | 12 | 26.5 | 138 | 48 | - | 20 | 16 | 20 | 4 |
| T433 3175 | 1-1/4 x 12 TPI | 12 | 29.5 | 151 | 51 | - | 22.4 | 18 | 22 | 4 |
| T433 3810 | 1-1/2 x 12 TPI | 12 | 36 | 170 | 60 | - | 28 | 22.4 | 26 | 4 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | T433 |
| Type | Straight flute tap |
| Thread series | UNF |
| Material | HSS |
| Finish | Bright |
| Chamfer | Bottoming (Form E) |
| Standard | ISO 529 |
| Flutes | 3 to 4 |
| Sizes in this listing | 22 sizes, #3 x 56 TPI to 1-1/2 x 12 TPI |
Related products
Related Sutton taps: T431 UNF Straight Flute Tap Taper - HSS - Bright - ISO 529, T432 UNF Straight Flute Tap Intermediate - HSS - Bright - ISO 529, T436 UNF Straight Flute Tap Left Hand Taper - HSS - Bright - ISO 529, T437 UNF Straight Flute Tap Left Hand Intermediate - HSS - Bright - ISO 529.
Couldn't load pickup availability
Secure Checkout. We do not store credit card details

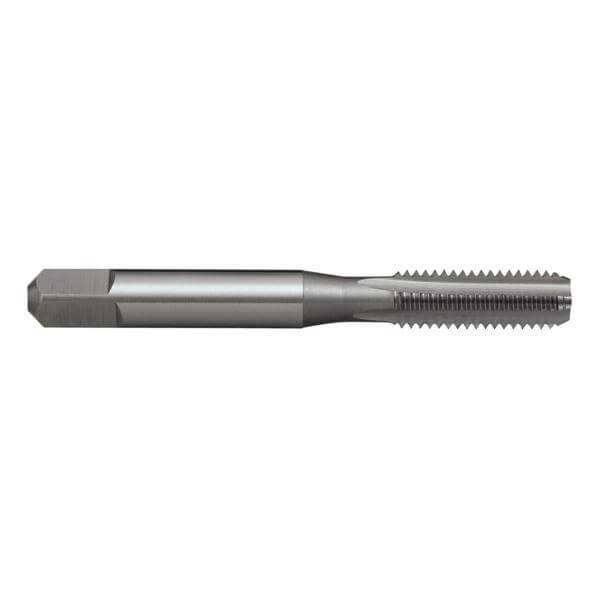

Sutton T433 UNF Straight Flute Tap Bottoming - HSS - Bright - ISO 529: 12 / #1
