Sutton T444 UNF Thread Forming Tap - Bottoming - Short - Premium HSS 1

Sutton T444 UNF Thread Forming Tap - Bottoming - Short - Premium HSS 2

Sutton T4440635 UNF 1/4 x 28 Thread Forming Tap Bottoming Short - HSSE V3

Sutton T4440794 UNF 5/16 x 24 Thread Forming Tap Bottoming Short HSSE V3

Sutton T4440953 UNF 3/8 x 24 Thread Forming Tap Bottoming Short - HSSE V3

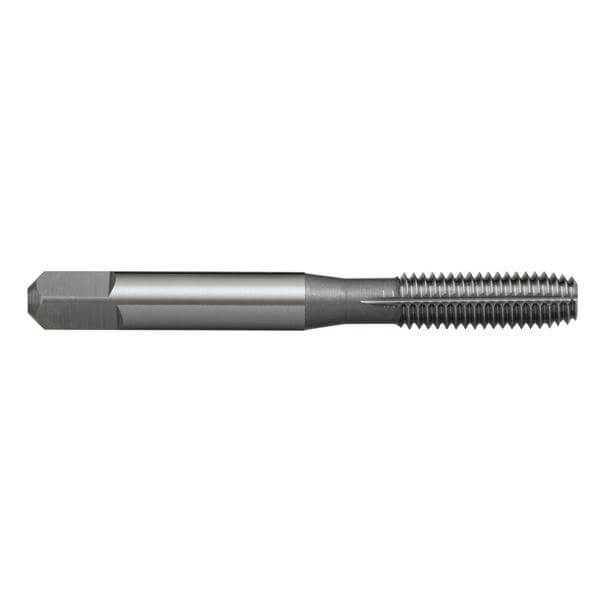

Sutton T4441270 UNF 1/2 x 20 Thread Forming Tap Bottoming Short - HSSE V3

Description +

Dimensions

d1 (mm): 6.35
d2 (mm): 6.3
l1 (mm): 66
l2 (mm): 19
l3 (mm): 25
l4 (mm): 7
Square Size (mm): 5
Drill Size (mm): 5.5 (drill)
TPI: 28 (TPI)

Features

For cold forming of threads in materials with good flow characteristics
Through or Blind holes
Depths up to approx. 1.5 x d1

Specifications

Designation: N (for normal general purpose type materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Bright
Max Cut Depth: 1.5xD
Shank Form: Reinforced Shank (with square drive)
X: als
Type: Fluteless - Single Coolant Groove
Standard: ISO529
Thread Form: UNF
Nut Tolerance: 2B
Lead: Form C / 3 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Aluminum & Magnesium, wrought alloy - Non Heat Treatable
Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened
Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable
Aluminum & Magnesium, cast alloy ≤12% Si - Heat Treatable: Age Hardened
Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%

Specifications +

Dimensions

d1 (mm): 6.35
d2 (mm): 6.3
l1 (mm): 66
l2 (mm): 19
l3 (mm): 25
l4 (mm): 7
Square Size (mm): 5
Drill Size (mm): 5.5 (drill)
TPI: 28 (TPI)

Specifications

Designation: N (for normal general purpose type materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Bright
Max Cut Depth: 1.5xD
Shank Form: Reinforced Shank (with square drive)
X: als
Type: Fluteless - Single Coolant Groove
Standard: ISO529
Thread Form: UNF
Nut Tolerance: 2B
Lead: Form C / 3 x P

Application +

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Aluminum & Magnesium, wrought alloy - Non Heat Treatable
Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened
Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable
Aluminum & Magnesium, cast alloy ≤12% Si - Heat Treatable: Age Hardened
Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%

Features & Benefits +

Features

For cold forming of threads in materials with good flow characteristics
Through or Blind holes
Depths up to approx. 1.5 x d1

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Sutton T444 UNF Thread Forming Tap - Bottoming - Short - Premium HSS

SKU: A0015441

$176.96

Inc. GST

Buy It Now

Available

The Sutton T444 UNF Thread Forming Tap by Sutton Tools is a 0 made of Premium Grade High Speed Steel (HSSE-V3). It provides 20 TPI and is suitable for Aluminium & Magnesium, cast alloy ≤12% Si - Heat Treatable: Age Hardened.
