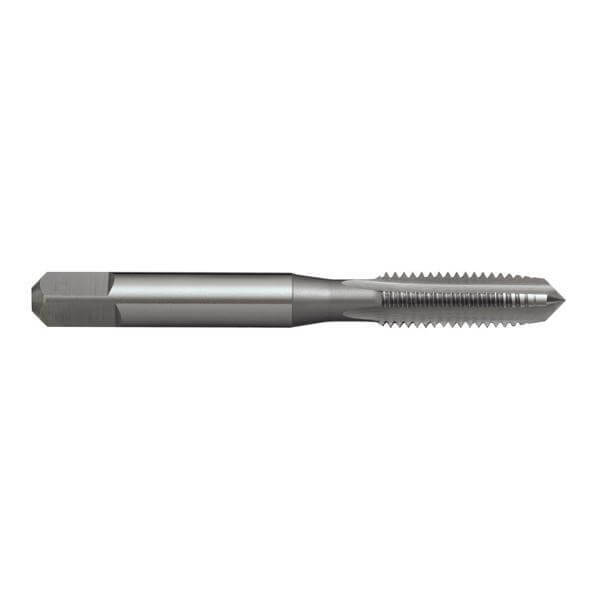

Sutton T4461270 UNEF 1/2 x 28 Straight Flute Tap - Intermediate - HSS
Sutton T4461588 UNEF 5/8 x 24 Straight Flute Tap - Intermediate - HSS
Sutton T4461905 UNEF 3/4 x 20 Straight Flute Tap - Intermediate - HSS
Sutton T4462540 UNEF 1 x 20 Straight Flute Tap - Intermediate - HSS
Sutton T446 UNEF Straight Flute Tap - Intermediate - HSS 1
Sutton T446 UNEF Straight Flute Tap - Intermediate - HSS 2
Sutton T4460635 UNEF 1/4 x 32 Straight Flute Tap - Intermediate - HSS
Sutton T4460794 UNEF 5/16 x 32 Straight Flute Tap - Intermediate - HSS
Sutton T4460953 UNEF 3/8 x 32 Straight Flute Tap - Intermediate - HSS
Sutton T4461270 UNEF 1/2 x 28 Straight Flute Tap - Intermediate - HSS
Sutton T4461588 UNEF 5/8 x 24 Straight Flute Tap - Intermediate - HSS
Sutton T4461905 UNEF 3/4 x 20 Straight Flute Tap - Intermediate - HSS
Sutton T4462540 UNEF 1 x 20 Straight Flute Tap - Intermediate - HSS

Sutton T446 UNEF Straight Flute Tap - Intermediate - HSS

Sutton T446 UNEF Straight Flute Tap - Intermediate - HSS

SKU: A0015455

$183.26
$183.26 $183.26
Inc. GST
Buy It Now

Available

The Sutton T446 UNEF Straight Flute Tap by Sutton Tools is a 0 tapping tool made of High Speed Steel. It provides suitability for materials up to 1000N/mm2 and is suitable for Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed.

Resources

File icon
Sutton-Tools-Taps-Dies-Threading-Catalogue
File icon
Sutton-Tools-ISO-Taps-Catalogue
Description −

Features

  • General purpose use
  • Suitable for materials up to 1000N/mm2
  • Through & blind holes
  • Suitable for both hand and machine operations
  • Depths up to approx. 1 x d1

Specifications

  • Designation: N (for normal general purpose type materials)
  • Material: High Speed Steel (HSS)
  • Finish: Bright
  • Max Cut Depth: 1xD
  • Shank Form: Reinforced Shank (with square drive)
  • X: als
  • Type: Straight Flute
  • Standard: ISO529
  • Thread Form: Unified National Form 60¬∞ (UNEF)
  • Nut Tolerance: 2B
  • Lead: Intermediate

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
  • Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Annealed

Specifications

  • Designation: N (for normal general purpose type materials)
  • Material: High Speed Steel (HSS)
  • Finish: Bright
  • Max Cut Depth: 1xD
  • Shank Form: Reinforced Shank (with square drive)
  • X: als
  • Type: Straight Flute
  • Standard: ISO529
  • Thread Form: Unified National Form 60¬∞ (UNEF)
  • Nut Tolerance: 2B
  • Lead: Intermediate

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
  • Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Annealed

Features

  • General purpose use
  • Suitable for materials up to 1000N/mm2
  • Through & blind holes
  • Suitable for both hand and machine operations
  • Depths up to approx. 1 x d1
