Sutton T464 BSW Thread Forming Tap - Bottoming Short - HSSE V3 Tinite1

Sutton T464 BSW Thread Forming Tap - Bottoming Short - HSSE V3 Tinite2

Sutton T4640397 BSW 5/32-32 Thread Forming Tap Bottoming Short HSSE V3 TiN

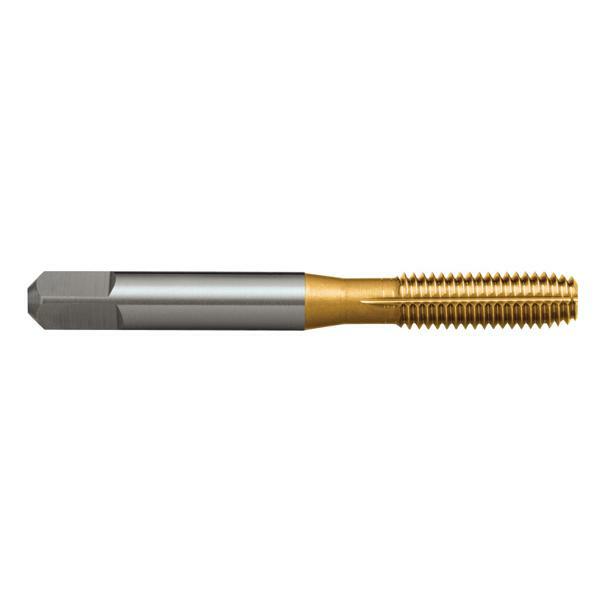

Sutton T4640476 BSW 3/16-24 Thread Forming Tap Bottoming Short HSSE V3 TiN

Specifications +

Dimensions

d1 (mm): 3.96875
d2 (mm): 4
l1 (mm): 53
l2 (mm): 17
l3 (mm): 17
l4 (mm): 6
sq: 3.15
Drill Size (mm): 3.6 (drill)
TPI: 32 (TPI)

Specifications

Designation: N (for normal general purpose type materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Titanium Nitride (TiN)
Max Cut Depth: 1.5xD
Shank Form: Reinforced Shank (with square drive)
X: als
Type: Fluteless - Single Coolant Groove
Standard: ISO529
Thread Form: British Standard Whitworth 55Â° (BSW)
Nut Tolerance: Z3 Medium
Lead: Form C / 3 x P

Application +

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Aluminum & Magnesium, wrought alloy - Non Heat Treatable
Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened
Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%

Features & Benefits +

Features

For cold forming of threads in materials with good flow characteristics
Through or Blind holes
Depths up to approx. 1.5
TiN For longer tool life

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Save 29%

Sutton T464 BSW Thread Forming Tap - Bottoming Short - HSSE V3 Tinite

SKU: A0015638

Type: Threading Die

$108.13

$108.13 ~~$154.47~~

Inc. GST

⚙High Speed Steel (HSS)

⚙Sutton BSW Thread Forming

📐Multiple Sizes Available

🔩Precise Thread Cutting

🏗Metalworking & Manufacturing

☑High Speed Operation Rated

Available

Product Highlights −

Dimensions

d1 (mm): 3.96875
d2 (mm): 4
l1 (mm): 53
l2 (mm): 17
l3 (mm): 17
l4 (mm): 6
sq: 3.15
Drill Size (mm): 3.6 (drill)
TPI: 32 (TPI)

Features

For cold forming of threads in materials with good flow characteristics
Through or Blind holes
Depths up to approx. 1.5
TiN For longer tool life

Specifications

Designation: N (for normal general purpose type materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Titanium Nitride (TiN)
Max Cut Depth: 1.5xD
Shank Form: Reinforced Shank (with square drive)
X: als
Type: Fluteless - Single Coolant Groove
Standard: ISO529
Thread Form: British Standard Whitworth 55Â° (BSW)
Nut Tolerance: Z3 Medium
Lead: Form C / 3 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Aluminum & Magnesium, wrought alloy - Non Heat Treatable
Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened
Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%
