Sutton T466 1 x 10 TPI Straight Flute Tap Taper - HSS - Bright - ISO 529
Available

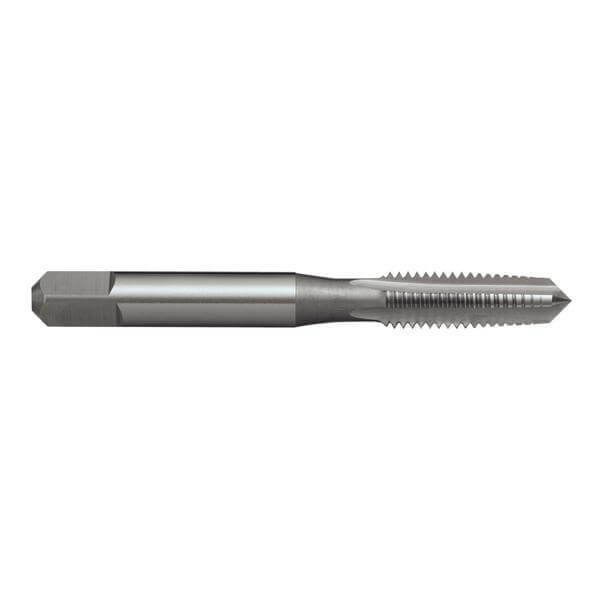

The Sutton T466 is a straight flute tap (taper chamfer) for BSF threads, made from high speed steel (HSS) with a bright finish. This listing covers 11 sizes from 3/16 x 32 TPI to 1 x 10 TPI.
Straight flutes suit through or blind holes, but they hold only a small amount of chips and do not transport them axially, so deep holes are best avoided except in short chipping materials. The tap has a taper chamfer (Form A, 6 to 8 threads on the lead), for short through holes.
The thread tolerance is Z3 Medium. The tap is built to ISO 529: short machine tap construction.
Where this product is used
- General purpose use.
- Suitable for materials up to 1000 N/mm2.
- Through & blind holes.
- Suitable for both hand and machine operations.
- Depths up to approx. 1 x d1.
Design features
- High speed steel (HSS). Standard tool material for most common applications.
- Bright finish for general purpose applications.
- 3 to 4 flutes, depending on size.
- Taper chamfer (Form A), for short through holes.
- Thread tolerance Z3 Medium.
- ISO 529 construction, short machine tap construction.
Sizes
Dimensions are in millimetres. Item numbers are the Sutton catalogue numbers. If you are not sure which tapping drill to use, try our tap drill size selector.
| Item no. | Thread size | TPI | Tapping drill (mm) | l1 overall (mm) | l2 thread (mm) | l3 (mm) | d2 shank (mm) | sq square (mm) | l4 square length (mm) | Flutes |
|---|---|---|---|---|---|---|---|---|---|---|
| T466 0476 | 3/16 x 32 TPI | 32 | 4 | 58 | 16 | 22 | 5 | 4 | 7 | 3 |
| T466 0635 | 1/4 x 26 TPI | 26 | 5.2 | 66 | 19 | 25 | 6.3 | 5 | 8 | 3 |
| T466 0794 | 5/16 x 22 TPI | 22 | 6.8 | 72 | 22 | 30 | 8 | 6.3 | 9 | 4 |
| T466 0953 | 3/8 x 20 TPI | 20 | 8.3 | 80 | 24 | 33 | 10 | 8 | 11 | 4 |
| T466 1111 | 7/16 x 18 TPI | 18 | 9.8 | 85 | 25 | - | 8 | 6.3 | 9 | 4 |
| T466 1270 | 1/2 x 16 TPI | 16 | 11 | 89 | 29 | - | 9 | 7.1 | 10 | 4 |
| T466 1429 | 9/16 x 16 TPI | 16 | 12.7 | 95 | 30 | - | 11.2 | 9 | 12 | 4 |
| T466 1588 | 5/8 x 14 TPI | 14 | 14 | 102 | 32 | - | 12.5 | 10 | 13 | 4 |
| T466 1905 | 3/4 x 12 TPI | 12 | 16.75 | 112 | 37 | - | 14 | 11.2 | 14 | 4 |
| T466 2223 | 7/8 x 11 TPI | 11 | 19.75 | 118 | 38 | - | 16 | 12.5 | 16 | 4 |
| T466 2540 | 1 x 10 TPI | 10 | 22.75 | 130 | 45 | - | 18 | 14 | 18 | 4 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | T466 |
| Type | Straight flute tap |
| Thread series | BSF |
| Material | HSS |
| Finish | Bright |
| Chamfer | Taper (Form A) |
| Thread tolerance | Z3 Medium |
| Standard | ISO 529 |
| Flutes | 3 to 4 |
| Sizes in this listing | 11 sizes, 3/16 x 32 TPI to 1 x 10 TPI |
Related products
Related Sutton taps: T467 BSF Straight Flute Tap Intermediate - HSS - Bright - ISO 529, T468 BSF Straight Flute Tap Bottoming - HSS - Bright - ISO 529.
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Sutton T466 BSF Straight Flute Tap Taper - HSS - Bright - ISO 529: 10 / 1
SKU: A0015656 | Model: T4662540
TPI 10, Diameter (inch) 1. Features
The Sutton T466 is a straight flute tap (taper chamfer) for BSF threads, made from high speed steel (HSS) with a bright finish. This listing covers 11 sizes from 3/16 x 32 TPI to 1 x 10 TPI.
Straight flutes suit through or blind holes, but they hold only a small amount of chips and do not transport them axially, so deep holes are best avoided except in short chipping materials. The tap has a taper chamfer (Form A, 6 to 8 threads on the lead), for short through holes.
The thread tolerance is Z3 Medium. The tap is built to ISO 529: short machine tap construction.
