Sutton T469 BA Straight Flute Tap - Taper - HSS 1

Sutton T469 BA Straight Flute Tap - Taper - HSS 2

Sutton T4690170 BA #10 x 0.35 Straight Flute Tap - Taper - HSS

Sutton T4690190 BA #9 x 0.39 Straight Flute Tap - Taper - HSS

Sutton T4690220 BA #8 x 0.43 Straight Flute Tap - Taper - HSS

Sutton T4690250 BA #7 x 0.48 Straight Flute Tap - Taper - HSS

Sutton T4690280 BA #6 x 0.53 Straight Flute Tap - Taper - HSS

Sutton T4690320 BA #5 x 0.59 Straight Flute Tap - Taper - HSS

Sutton T4690360 BA #4 x 0.66 Straight Flute Tap - Taper - HSS

Sutton T4690410 BA #3 x 0.73 Straight Flute Tap - Taper - HSS

Sutton T4690470 BA #2 x 0.81 Straight Flute Tap - Taper - HSS

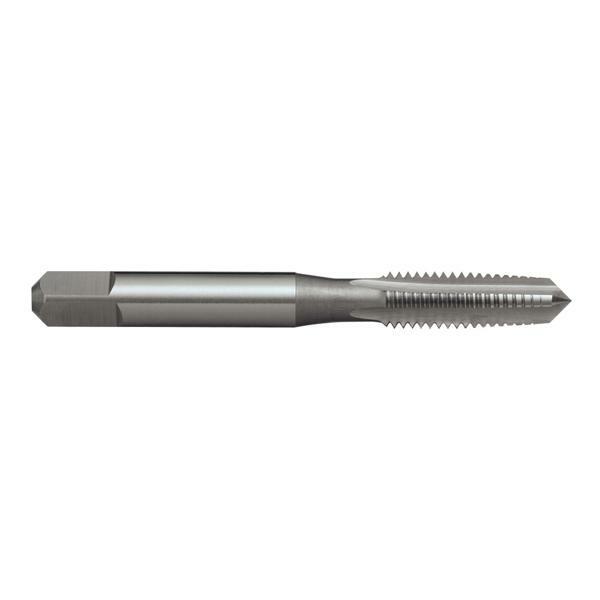

Sutton T4690530 BA #1 x 0.9 Straight Flute Tap - Taper - HSS

Sutton T4690600 BA #0 x 1 Straight Flute Tap - Taper - HSS

Specifications +

Dimensions

d1: #10
d2 (mm): 2.5
l1 (mm): 41
l2 (mm): 8
l4 (mm): 4
sq: 2
z: 3
Drill Size (mm): 1.4 (drill)
Pitch (mm): 0.35 (pitch)

Specifications

Designation: N (for normal general purpose type materials)
Material: High Speed Steel (HSS)
Finish: Bright
Max Cut Depth: 1xD
Shank Form: Reinforced Shank (with square drive)
X: als
Type: Straight Flute
Standard: ISO529
Thread Form: 47.5Â° (BA)
Nut Tolerance: Z3 Medium
Lead: Taper

Application +

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed

Features & Benefits +

Features

General purpose use
Suitable for materials up to 1000N/mm2
Through & blind holes
Suitable for both hand and machine operations
Depths up to approx. 1 x d1

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Save 30%

Sutton T469 BA Straight Flute Tap - Taper - HSS

SKU: A0015689

Type: Threading Die

$20.89

$20.89 ~~$29.85~~

Inc. GST

⚙High Speed Steel (HSS)

⚙Sutton BA Straight Flute

📐Multiple Sizes Available

🔩Precise Thread Cutting

🏗Metalworking & Manufacturing

☑High Speed Operation Rated

Available

Product Highlights −

Dimensions

d1: #10
d2 (mm): 2.5
l1 (mm): 41
l2 (mm): 8
l4 (mm): 4
sq: 2
z: 3
Drill Size (mm): 1.4 (drill)
Pitch (mm): 0.35 (pitch)

Features

General purpose use
Suitable for materials up to 1000N/mm2
Through & blind holes
Suitable for both hand and machine operations
Depths up to approx. 1 x d1

Specifications

Designation: N (for normal general purpose type materials)
Material: High Speed Steel (HSS)
Finish: Bright
Max Cut Depth: 1xD
Shank Form: Reinforced Shank (with square drive)
X: als
Type: Straight Flute
Standard: ISO529
Thread Form: 47.5Â° (BA)
Nut Tolerance: Z3 Medium
Lead: Taper

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
