Sutton T474 1/2 x 26 TPI Straight Flute Tap Bottoming - HSS - Bright - ISO 529
Available

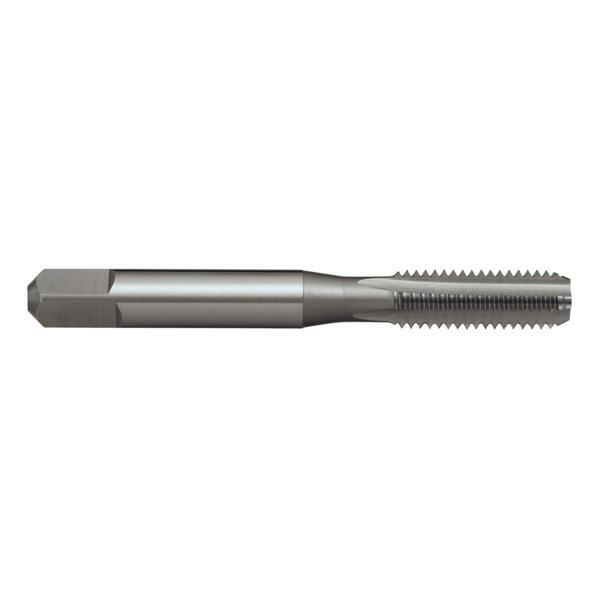

The Sutton T474 is a straight flute tap (bottoming chamfer) for BSB threads, made from high speed steel (HSS) with a bright finish. This listing covers 9 sizes from 5/16 x 26 TPI to 1 x 26 TPI.
Straight flutes suit through or blind holes, but they hold only a small amount of chips and do not transport them axially, so deep holes are best avoided except in short chipping materials. The tap has a bottoming chamfer (Form E, 1.5 to 2 threads on the lead), for blind holes with very short thread run-out.
The tap is built to ISO 529: short machine tap construction.
Where this product is used
- Through and blind holes.
Design features
- High speed steel (HSS). Standard tool material for most common applications.
- Bright finish for general purpose applications.
- 4 flutes.
- Bottoming chamfer (Form E), for blind holes with very short thread run-out.
- ISO 529 construction, short machine tap construction.
Sizes
Dimensions are in millimetres. Item numbers are the Sutton catalogue numbers. If you are not sure which tapping drill to use, try our tap drill size selector.
| Item no. | Thread size | TPI | Tapping drill (mm) | l1 overall (mm) | l2 thread (mm) | l3 (mm) | d2 shank (mm) | sq square (mm) | l4 square length (mm) | Flutes |
|---|---|---|---|---|---|---|---|---|---|---|
| T474 0794 | 5/16 x 26 TPI | 26 | 6.8 | 72 | 22 | 30 | 8 | 6.3 | 9 | 4 |
| T474 0953 | 3/8 x 26 TPI | 26 | 8.4 | 80 | 24 | 33 | 10 | 8 | 11 | 4 |
| T474 1111 | 7/16 x 26 TPI | 26 | 10 | 85 | 25 | - | 8 | 6.3 | 9 | 4 |
| T474 1270 | 1/2 x 26 TPI | 26 | 11.6 | 89 | 29 | - | 9 | 7.1 | 10 | 4 |
| T474 1429 | 9/16 x 26 TPI | 26 | 13.2 | 95 | 30 | - | 11.2 | 9 | 12 | 4 |
| T474 1588 | 5/8 x 26 TPI | 26 | 14.8 | 102 | 32 | - | 12.5 | 10 | 13 | 4 |
| T474 1905 | 3/4 x 26 TPI | 26 | 18 | 112 | 37 | - | 14 | 11.2 | 14 | 4 |
| T474 2223 | 7/8 x 26 TPI | 26 | 20.8 | 118 | 38 | - | 16 | 12.5 | 16 | 4 |
| T474 2540 | 1 x 26 TPI | 26 | 24.3 | 130 | 45 | - | 18 | 14 | 18 | 4 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | T474 |
| Type | Straight flute tap |
| Thread series | BSB |
| Material | HSS |
| Finish | Bright |
| Chamfer | Bottoming (Form E) |
| Standard | ISO 529 |
| Flutes | 4 |
| Sizes in this listing | 9 sizes, 5/16 x 26 TPI to 1 x 26 TPI |
Related products
Related Sutton taps: T472 BSB Straight Flute Tap Taper - HSS - Bright - ISO 529, T473 BSB Straight Flute Tap Intermediate - HSS - Bright - ISO 529.
