Sutton T486 1/2 x 14 TPI Straight Flute Tap Pipe Bottoming - HSS - Colour Temp
Available

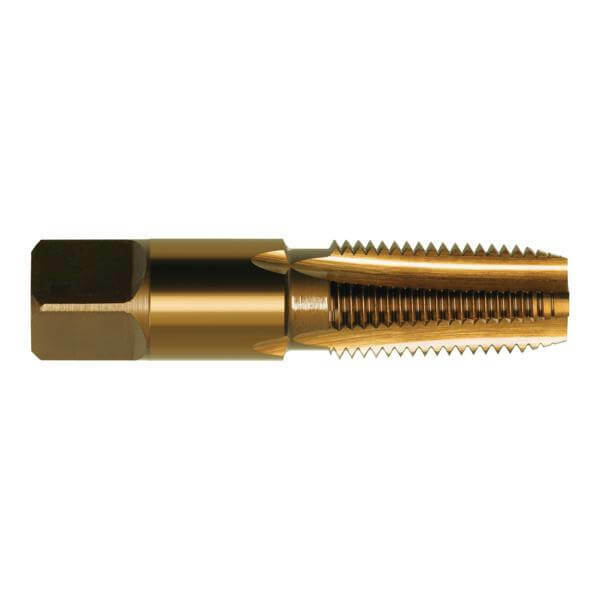

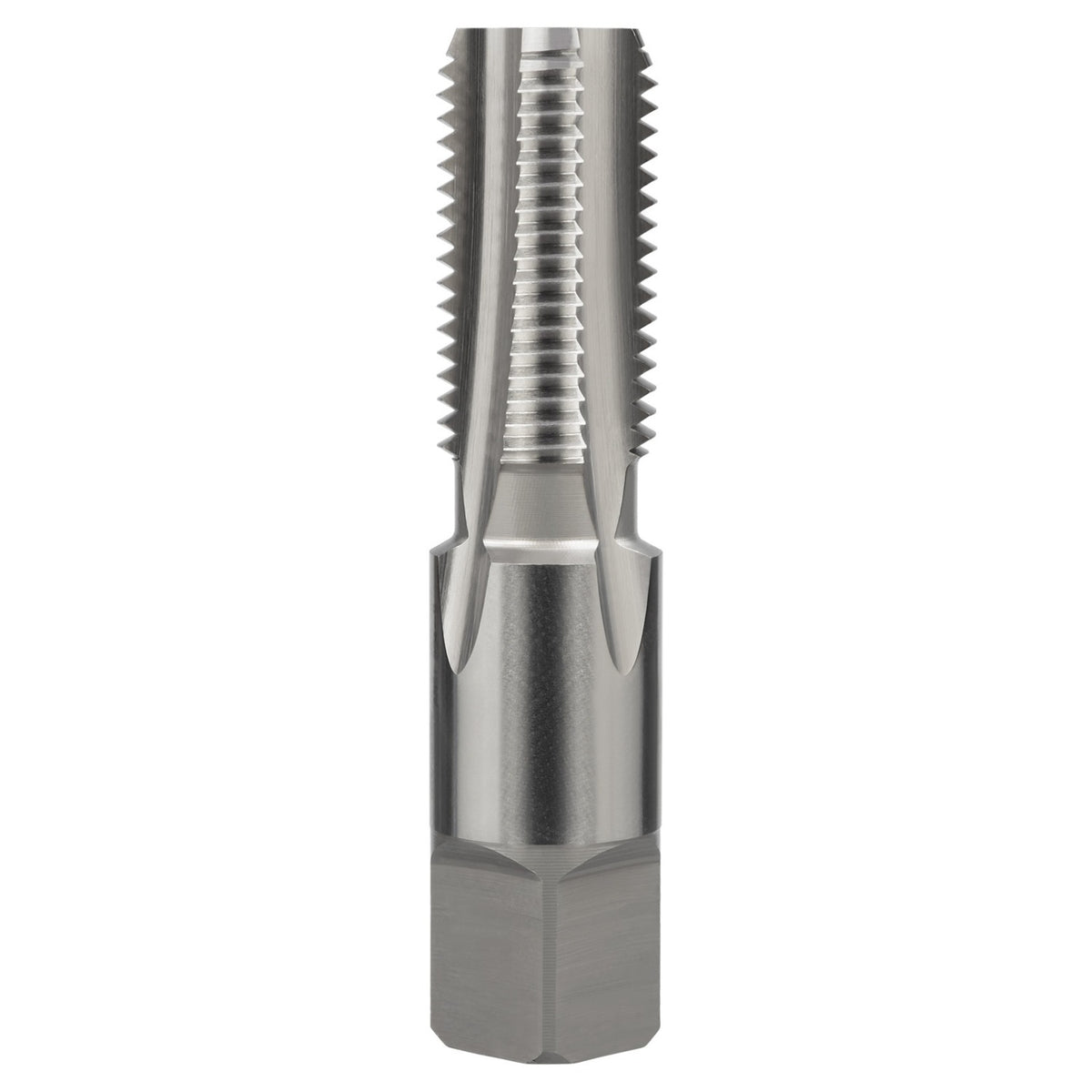

The Sutton T486 is a straight flute tap (bottoming chamfer) for NPSF threads, made from high speed steel (HSS) with a colour-tempered finish. This listing covers 4 sizes from 1/8 x 27 TPI to 1/2 x 14 TPI.
Straight flutes suit through or blind holes, but they hold only a small amount of chips and do not transport them axially, so deep holes are best avoided except in short chipping materials. The tap has a bottoming chamfer (Form E, 1.5 to 2 threads on the lead), for blind holes with very short thread run-out.
The thread tolerance is Refer Limit. The tap is built to ANSI B94.9.
Where this product is used
- General purpose use, materials up to approx. 1000 N/mm2.
- Suitable for both hand and machine operations.
- Taper pipe reamer recommended prior to tapping.
Design features
- High speed steel (HSS). Standard tool material for most common applications.
- Colour-tempered finish.
- 4 flutes.
- Bottoming chamfer (Form E), for blind holes with very short thread run-out.
- Thread tolerance Refer Limit.
- ANSI B94.9 construction.
Sizes

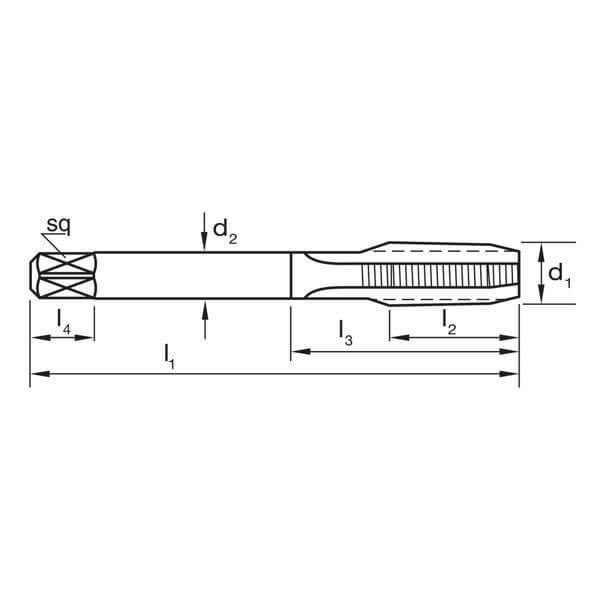

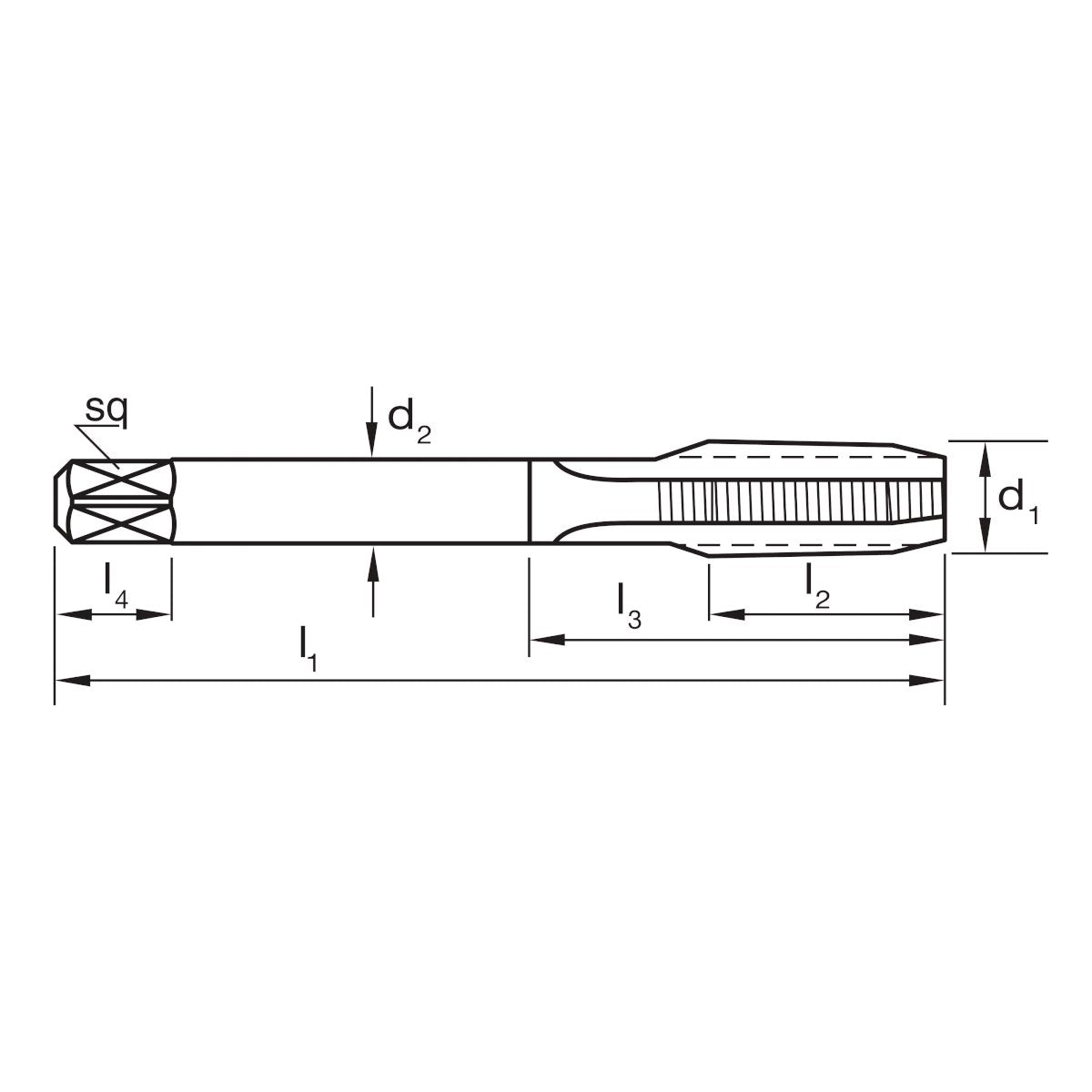

Dimensions are in millimetres. Item numbers are the Sutton catalogue numbers. If you are not sure which tapping drill to use, try our tap drill size selector.
| Item no. | Thread size | TPI | Tapping drill (mm) | l1 overall (mm) | l2 thread (mm) | d2 shank (mm) | sq square (mm) | l4 square length (mm) | Flutes | Limit |
|---|---|---|---|---|---|---|---|---|---|---|
| T486 1029 | 1/8 x 27 TPI | 27 | 8.6 | 54 | 19 | 11.11 | 8.33 | 9.5 | 4 | GH3 |
| T486 1372 | 1/4 x 18 TPI | 18 | 11.3 | 62 | 27 | 14.29 | 10.7 | 11.1 | 4 | GH4 |
| T486 1715 | 3/8 x 18 TPI | 18 | 14.5 | 65 | 27 | 17.78 | 13.49 | 12.7 | 4 | GH4 |
| T486 2134 | 1/2 x 14 TPI | 14 | 18 | 79 | 35 | 17.46 | 13.08 | 15.9 | 4 | GH5 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | T486 |
| Type | Straight flute tap |
| Thread series | NPSF |
| Material | HSS |
| Finish | Colour Temp |
| Chamfer | Bottoming (Form E) |
| Thread tolerance | Refer Limit |
| Standard | ANSI B94.9 |
| Flutes | 4 |
| Sizes in this listing | 4 sizes, 1/8 x 27 TPI to 1/2 x 14 TPI |
