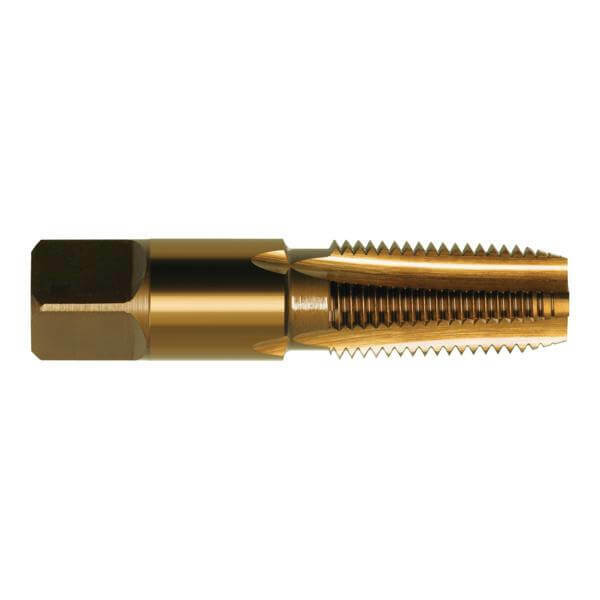

Sutton T487 1 x 11.5 TPI Straight Flute Tap Pipe Bottoming - HSS - Colour Temp
Available
The Sutton T487 is a straight flute tap (bottoming chamfer) for NPT threads, made from high speed steel (HSS) with a colour-tempered finish. This listing covers 7 sizes from 1/8 x 27 TPI to 1-1/4 x 11.5 TPI.
Straight flutes suit through or blind holes, but they hold only a small amount of chips and do not transport them axially, so deep holes are best avoided except in short chipping materials. The tap has a bottoming chamfer (Form E, 1.5 to 2 threads on the lead), for blind holes with very short thread run-out.
The tap is built to ANSI B94.9.
Where this product is used
- Through and blind holes.
Design features
- High speed steel (HSS). Standard tool material for most common applications.
- Colour-tempered finish.
- 4 to 5 flutes, depending on size.
- Bottoming chamfer (Form E), for blind holes with very short thread run-out.
- ANSI B94.9 construction.
Sizes
Dimensions are in millimetres. Item numbers are the Sutton catalogue numbers. If you are not sure which tapping drill to use, try our tap drill size selector.
| Item no. | Thread size | TPI | Tapping drill (mm) | l1 overall (mm) | l2 thread (mm) | d2 shank (mm) | sq square (mm) | l4 square length (mm) | Flutes |
|---|---|---|---|---|---|---|---|---|---|
| T487 1029 | 1/8 x 27 TPI | 27 | 8.2 | 54 | 19 | 11.11 | 8.33 | 9.5 | 4 |
| T487 1372 | 1/4 x 18 TPI | 18 | 10.8 | 62 | 27 | 14.29 | 10.7 | 11.1 | 4 |
| T487 1715 | 3/8 x 18 TPI | 18 | 14 | 65 | 27 | 17.78 | 13.49 | 12.7 | 4 |
| T487 2134 | 1/2 x 14 TPI | 14 | 17.5 | 79 | 35 | 17.46 | 13.08 | 15.9 | 4 |
| T487 2667 | 3/4 x 14 TPI | 14 | 23 | 82 | 35 | 23 | 17.25 | 17.5 | 4 |
| T487 3340 | 1 x 11.5 TPI | 11.5 | 28.5 | 95 | 44.5 | 28.6 | 21.4 | 20.6 | 5 |
| T487 4216 | 1-1/4 x 11.5 TPI | 11.5 | 37 | 102 | 44.5 | 33.3 | 25 | 23.8 | 5 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | T487 |
| Type | Straight flute tap |
| Thread series | NPT |
| Material | HSS |
| Finish | Colour Temp |
| Chamfer | Bottoming (Form E) |
| Standard | ANSI B94.9 |
| Flutes | 4 to 5 |
| Sizes in this listing | 7 sizes, 1/8 x 27 TPI to 1-1/4 x 11.5 TPI |
